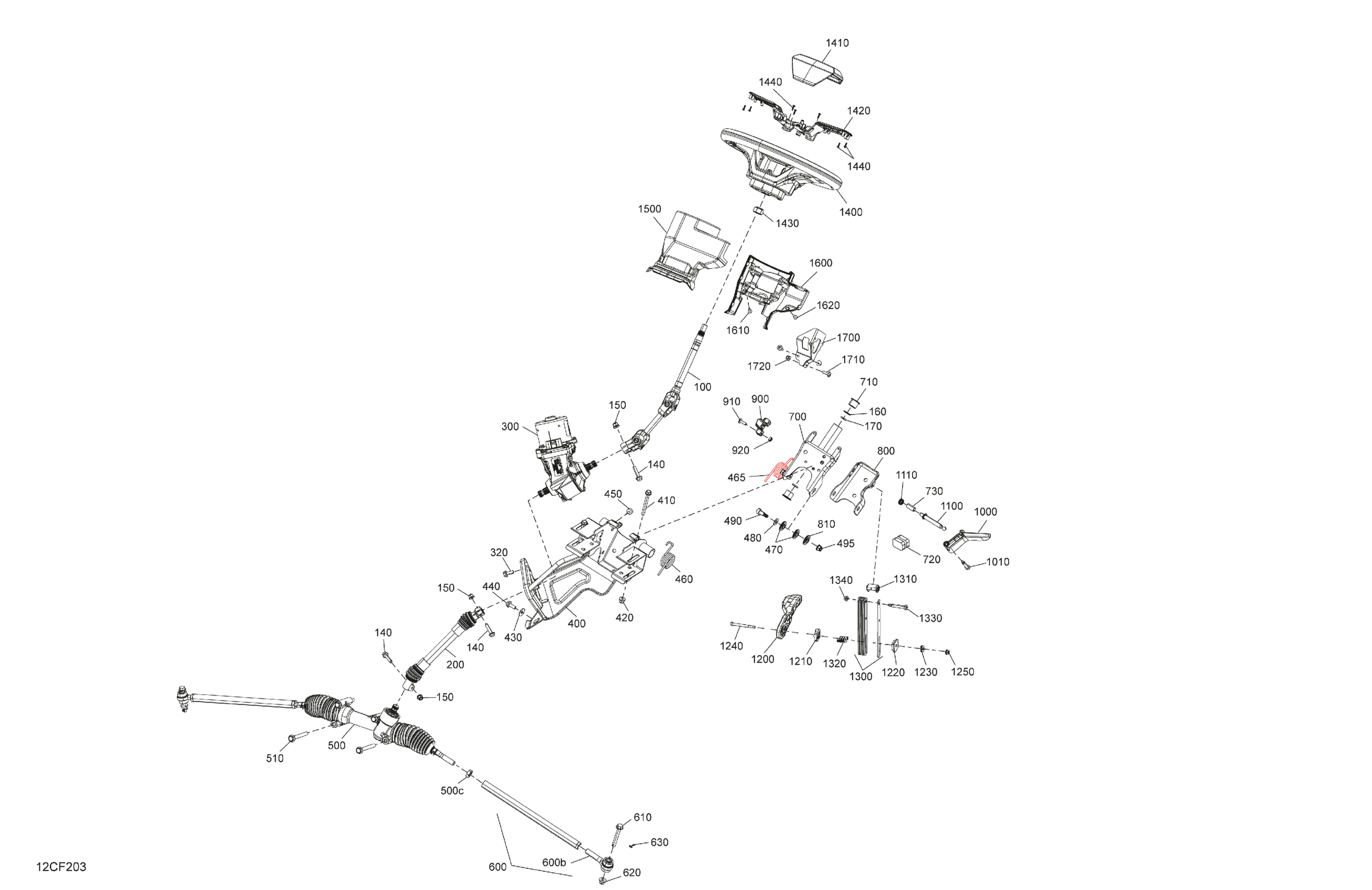

Can-Am Traxter MAX - HD11 - XU - 6BTA - Stealth Black - 65" Width, 2026 Mechanic - Steering Diagram

#

Description
Price

100

Steering Column

709402867

$219.99

140

Hex. Flange Screw M8 X 35

250001021

$4.44

150

Hex. Elastic Flange Nut M8

233281416

$1.48

160

Circlip

293370110

$2.61

170

O-Ring

293300144

$3.82

200

Steering Column

709403014

$184.99

300

Power Steering Ass'y

709403006

$2,119.99

320

Hex Screw Washer Head M8 X 20

207582054

$3.17

400

Power Steering Support

709402884

$70.99

410

Hex. Flange Screw M8 X 75

207687544

$7.41

420

Hex. Elastic Flange Nut M8

233281416

$1.48

430

Stainless Steel Flat Washer

234082670

$2.11

440

Hex Screw Washer Head M8 X 20

207582054

$3.17

450

Seat Stopper

708003866

$4.59

460

LH Torsion Spring

709403016

$10.49

465

RH Torsion Spring

709403017

$10.49

470

Bushing

709402895

$3.19

480

Flat Washer 10 mm

234001410

$1.26

490

Socket Head Shoulder Screw

709403059

$2.09

495

Hex. Elastic Flange Nut M8

233281416

$1.48

500

Rack And Pinion Steering | Includes 500 to 500c

709402862

$399.99

500c

Steering Rod Nut

715900238

$2.30

510

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

600

Tie Rod Ass'y | Includes 600 to 600b

709402921

$70.99

600b

Ball Joint

709401991

$52.99

610

Screw Hex Cap M10 X 75

250000814

$4.76

620

Flange Elastic Nut M10

233201466

$3.17

630

Cotter Pin

211400017

$0.33

700

Steering Wheel Support

709402898

$83.99

710

Steering Bushing

709402725

$3.28

720

Rubber Stopper

709403455

$4.59

730

Bushing

709403054

$3.19

800

Mechanism Support

709402879

$8.99

810

Bushing

709402895

$3.19

900

Sliding Block

709403161

$83.99

910

Torx Screw M6 X 20

250000722

$1.68

920

Square Nut M6

232862412

$1.49

1000

Coastal Gray, Latch Lever

709402896

$22.49

1010

Socket Head Shoulder Screw S.Grip

709403007

$10.54

1100

Locking Pin

709402897

$12.99

1110

Compression Spring

709403070

$4.79

1200

Coastal Gray, Latch Lever

709403141

$22.49

1210

Locking Cam

709403143

$6.59

1220

Latch Stopper

709402658

$4.79

1230

Thrust Washer

709403015

$13.99

1240

Hex. Screw S.Grip M6 X 70

207267044

$2.54

1250

Hex. Flange Nut M6

233061414

$1.68

1300

Lock Plate

709403414

$2.69

1310

Lower Spacer

709402709

$10.99

1320

Washer

709402660

$4.39

1330

Socket Head Shoulder Screw S.Grip

709403007

$10.54

1340

Hex. Flange Nut M6

233061414

$1.68

1400

Steering Wheel

709403416

$149.99

1410

Central Steering Wheel Trim

709402880

$18.49

1420

Deep Black, Steering Wheel Trim

709402881

$14.49

1430

Elastic Lock Nut M16

232511414

$2.00

1440

Screw Plastite Torx K30 X 12

250001234

$0.56

1500

Upper Steering Column Trim

707901199

$19.99

1600

Lower Steering Column Trim

707901200

$19.99

1610

Torx Screw K50 X 16

250000720

$1.69

1620

Torx Screw K50 X 16

250000720

$1.69

1700

Turn Signal Support

709402942

$30.99

1710

Torx Screw M6 X 20

250000712

$2.11

1720

Hex. Flange Elastic Nut M6

233261494

$1.58
