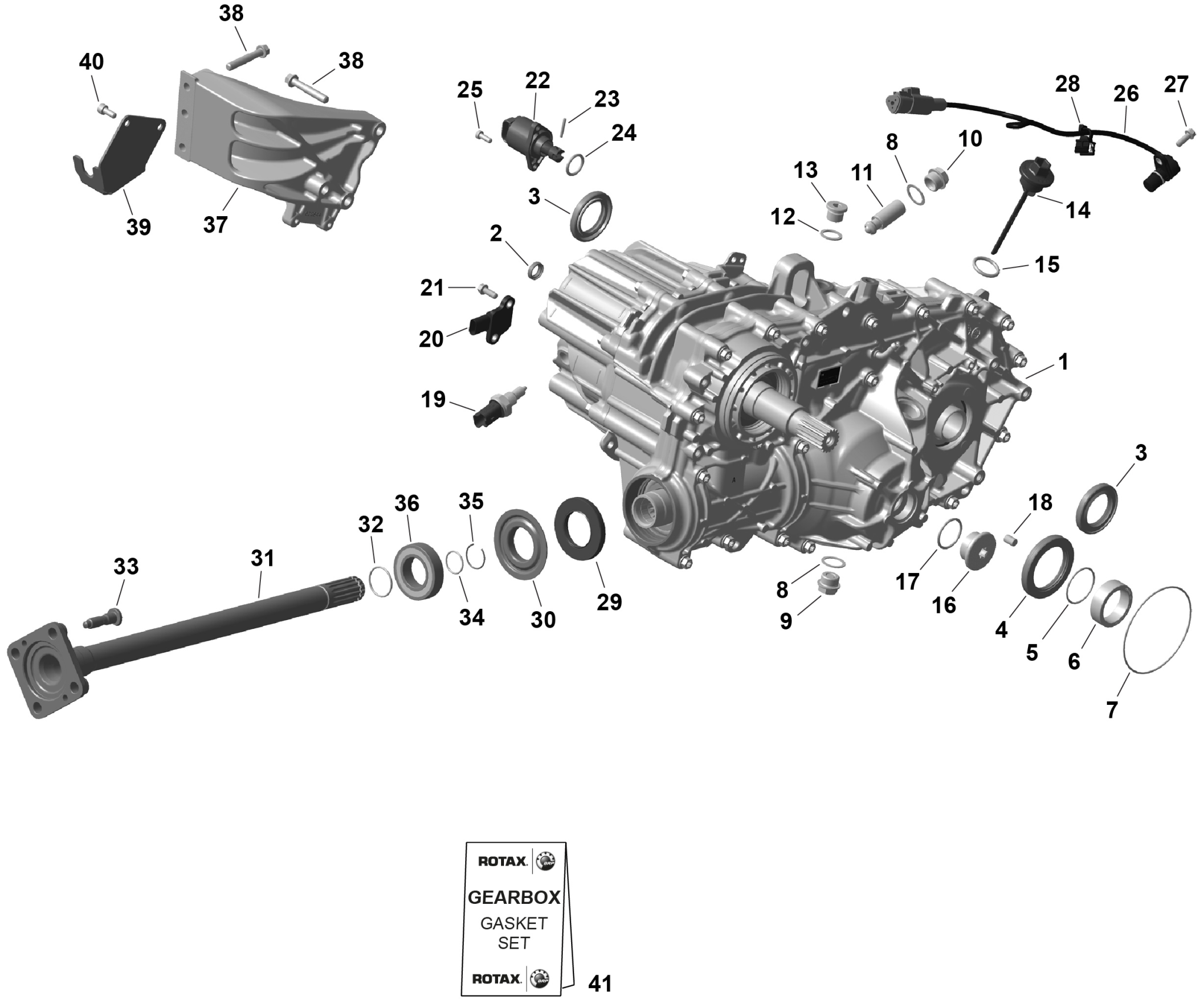

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 ROTAX - Gearbox Assy and Drive Shaft Diagram

Gear Box Ass'y | Includes no. 1-30

420686835

$3,319.99

OIL SEAL - Call your local BRP dealership

420250992

Unavailable

Oil Seal

420831187

$14.57

Oil Seal

420630933

$28.33

O-Ring | Included in gasket set gearbox

420230023

$1.96

Distance RIng

420247593

$19.37

O-Ring | Included in gasket kit

420931410

$3.06

Crush Washer

420552280

$3.43

Drain Plug M18 X 1.5

420840278

$22.36

Plug Screw M18 X 1.5

420841935

$13.51

Plunger

420657443

$14.34

O-Ring

420430622

$4.15

Plug Screw M16 X 1.5

420240234

$13.18

Oil Dipstick

420256814

$15.64

O-Ring

420631641

$0.96

Plug Screw M30 X 1.5

420641171

$17.88

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$9.03

Center Pin 8 X 12

420632014

$3.52

Switch

420640196

$21.61

Angle Rotation Sensor

420265123

$25.34

Torx Flange Screw M6 X 16

420440162

$3.01

Servomotor

420265845

$205.94

Needle Pin

420932840

$3.00

O-Ring | Included in gasket set gearbox

420450450

$1.67

Allen Screw M5 X 14

420240150

$1.67

Camshft Position Sensor Ass'y

420265727

$104.45

Torx Flange Screw M6 X 16

420440162

$3.01

Tie-Rap With Mount

420651810

$5.75

PTO Cover Oil Seal | Included in gasket kit

420630153

$17.88

Cover Washer

420626994

$8.24

Output Shaft Ass'y | Includes no. 31-35

420620394

$268.63

O-Ring | Included in gasket kit

420430443

$11.18

Collar Stud

420841271

$5.13

O-Ring | Included in gasket kit

420631126

$11.18

Circlip

420645032

$3.93

Ball Bearing 6006

420632262

$17.13

Gearbox Bracket

420212644

$58.99

Hex. Flange Screw M8 X 45

420641208

$7.09

Torx Flange Screw M6 X 25

420841549

$1.91

Allen Screw M6X14

420840394

$1.45

Gearbox Gasket Set

420893055

$89.52
