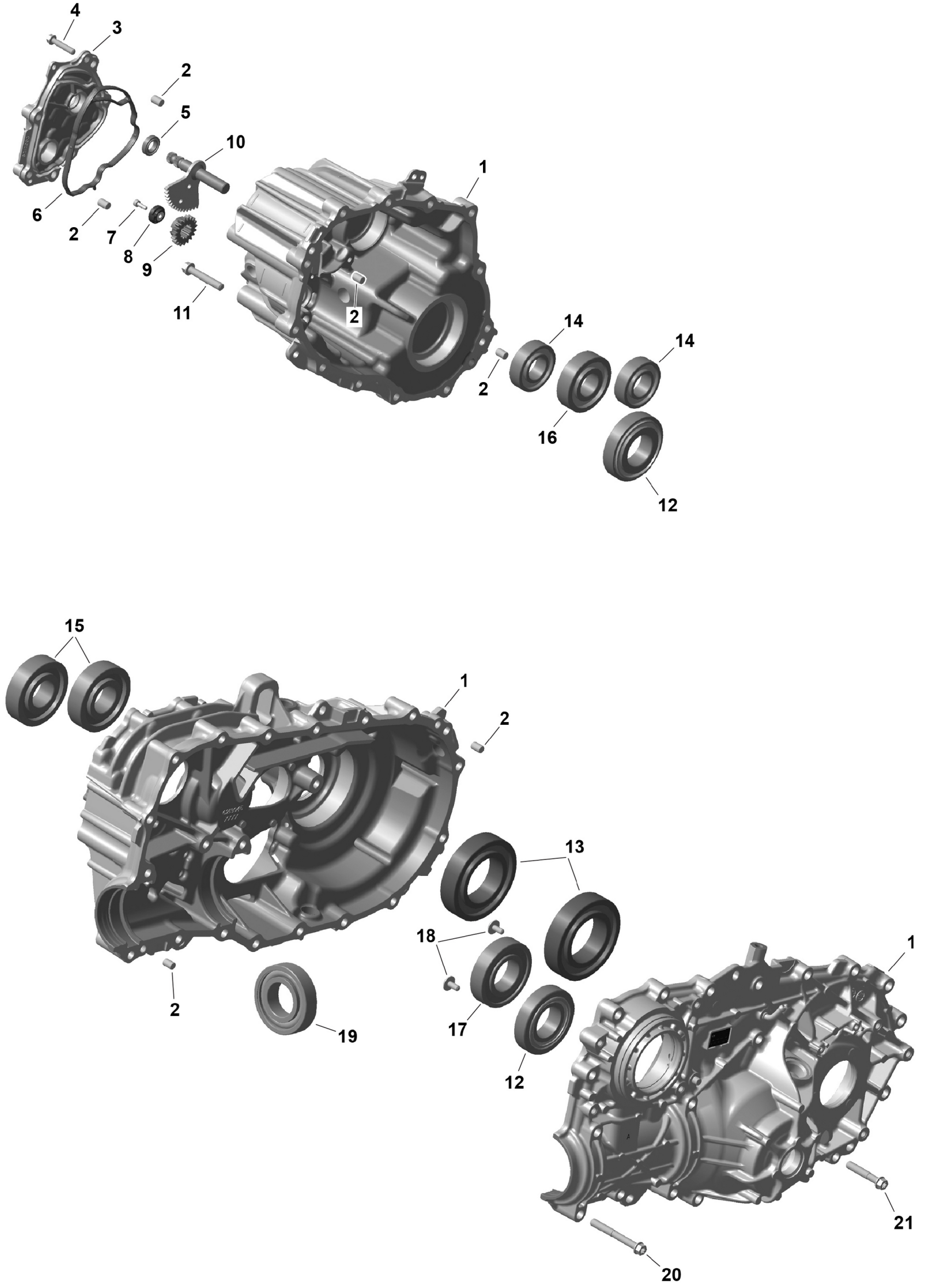

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 ROTAX - GearBox 1 Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Center Pin 8 X 12

420632014

$3.89

3

Gearbox Cover

420212393

$58.99

4

Torx Flange Screw M6 X 30

420440647

$2.00

5

Ball Bearing

420932329

$19.99

6

Gearbox Cover Gasket

420431685

$8.59

7

Allen Screw M4X12 8.8 MK

420440297

$1.01

8

Magnet

420256000

$17.99

9

Drive Gear 19T

420234096

$7.59

10

Shift Shaft Ass'y

420820348

$43.99

11

Hex. Flange Screw M8 X 45

420641208

$7.51

12

Not Available As Spare Parts

XXX

Unavailable

13

Ball Bearing

420632872

$25.99

14

Ball Bearing

420232771

$13.99

15

Ball Bearing

420932574

$55.99

16

Ball Bearing

420932822

$30.49

17

Ball Bearing

420632748

$26.99

18

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

19

Ball Bearing

420632745

$25.99

20

Torx Flange Screw M8 X 65

420440402

$7.41

21

Hex. Flange Screw M8 X 45

420641208

$7.51
