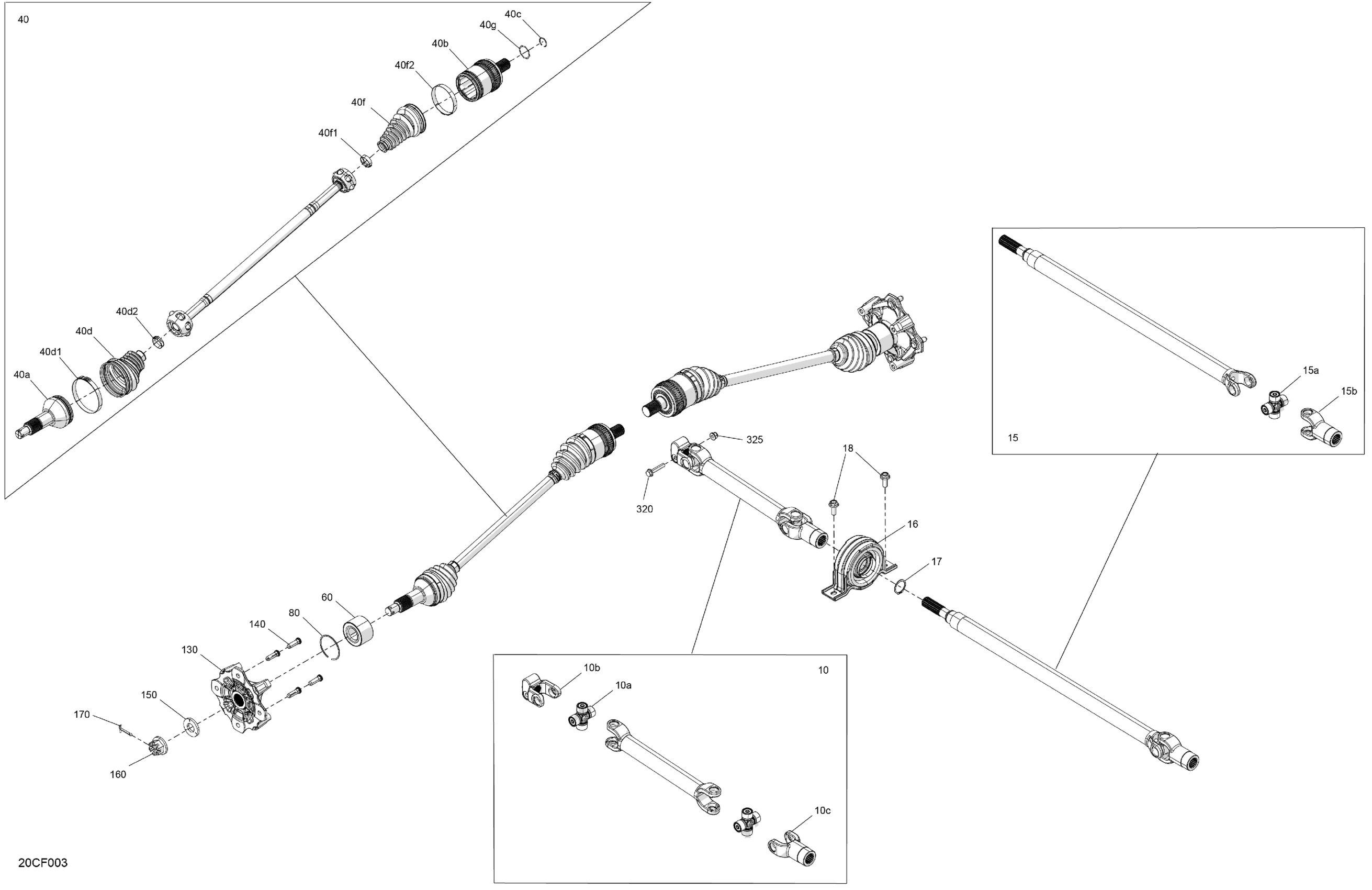

Can-Am Traxter - HD9 - XU - 6NTC - Dusty Navy Satin - 64" Width, 2026 Drive - Front - Common Parts Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10c

705403286

$243.49

10a

U-Joint Cross Kit

715900829

$78.49

10b

Fixed Yoke

715900400

$59.49

10c

Yoke

715900401

$35.99

Drive Axle Ass'y | Includes 15 to 15b

705403287

$328.49

15a

U-Joint Cross Kit

715900829

$78.49

15b

Yoke

715900401

$35.99

Ball Bearing Ass'y

705403522

$47.49

Snap Ring

293370098

$3.17

Hex. Flange Screw M10 X 20

207502046

$2.11

CV Joint | Includes 40 to 40g

705403013

$243.99

40a

Exterior CV Joint

715900621

$259.49

40b

Plunging Joint

715900699

$259.49

40c

Circlip

715900569

$5.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40d1

Oetiker Clamp

715900282

$5.29

40d2

Oetiker Clamp, Small

715900283

$5.29

40f

Boot Kit, Différential Side

705401355

$42.49

40f1

Oetiker Clamp, Small

715900261

$5.29

40f2

Oetiker Clamp, Large

715900262

$10.33

40g

O-ring

715900580

$2.51

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

130

Machined Wheel Hub

705503852

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
