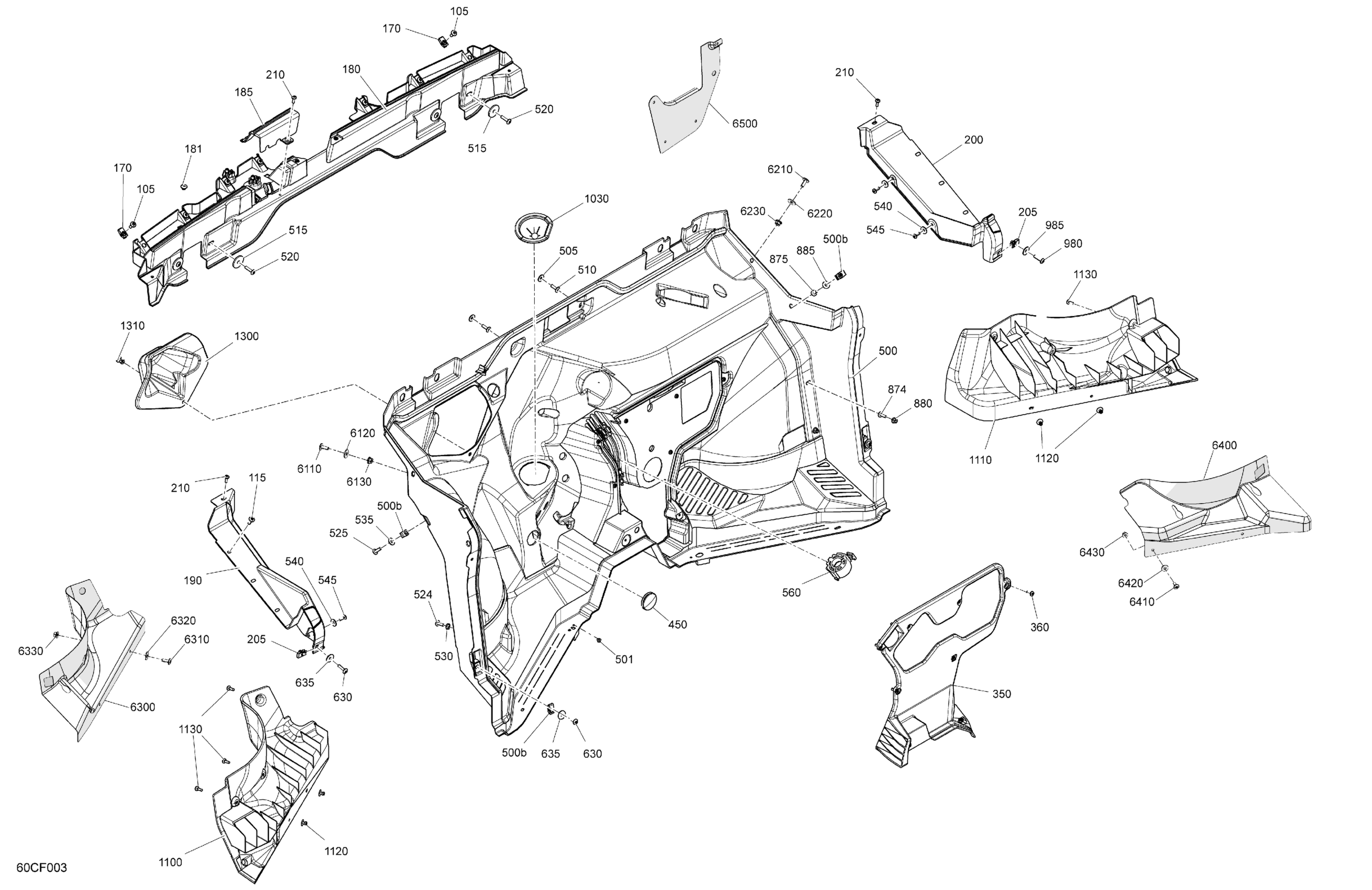

Can-Am Defender - HD7 - BASE - 6XTC - Compass Green - 62" Width - CALI, 2026 Cab Interior - Firewall Diagram

#

Description
Price

105

Torx Screw M6 X 20

250000722

$1.34

115

Torx Screw M6 X 20

250000722

$1.34

170

Panel Nut M6 X 1.0

250100198

$1.73

180

Front Upper Deflector

707901082

$50.74

181

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

185

Front Upper Deflector

707900747

$10.98

190

LH Upper Deflector

707900738

$50.74

200

RH Upper Deflector

707900739

$50.74

205

Panel Nut M6 X 1.0

250100198

$1.73

210

Torx Screw K50 X 16

250000720

$1.39

350

Front Panel Trim

707900740

$21.49

360

Torx Screw K50 X 16

250000720

$1.39

450

Rubber Cover

293250242

$5.38

500

Front Seperation Panel Ass'y | Includes 500 to 500b

707901352

$207.66

500b

Panel Nut M6 X 1.0

250100198

$1.73

501

Pop Rivet 3/16 X ,425

293150293

$0.26

505

Stainless Steel Flat Washer

234062670

$1.74

510

Torx Screw M6 X 20

250000722

$1.34

515

Flat Washer M8

250200158

$1.74

520

Torx Truss Screw M6 X 25

250000807

$1.74

524

Torx Truss Screw M6 X 25

250000807

$1.74

525

Torx Screw M6 X 20

250000722

$1.34

530

Hex. Flange Elastic Nut M6

233261494

$1.26

535

Stainless Steel Flat Washer

234062670

$1.74

540

Stainless Steel Flat Washer

234062670

$1.74

545

Torx Screw K50 X 16

250000720

$1.39

560

Split Grommet

707900719

$4.05

630

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

635

Flat Washer M6.6 X 22

250200162

$1.91

874

Torx Truss Screw M6 X 25

250000807

$1.74

875

Torx Screw M6 X 20

250000722

$1.34

880

Hex. Flange Elastic Nut M6

233261494

$1.26

885

Stainless Steel Flat Washer

234062670

$1.74

980

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

985

Flat Washer M6.6 X 22

250200162

$1.91

1030

Sterring Column Trim

707900768

$2.75

1100

LH Front Deflector

707900750

$50.74

1110

RH Front Deflector

707900751

$50.74

1120

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

1130

Torx Screw K50 X 16

250000720

$1.39

1300

Exterior Cover

707900389

$11.54

1310

Tuflok Plastic Rivet

293150230

$1.21

6110

Torx Truss Screw M6 X 16

250000721

$1.39

6120

Stainless Steel Flat Washer

234062670

$1.74

6130

Hex. Flange Elastic Nut M6

233261466

$1.66

6210

Torx Truss Screw M6 X 16

250000721

$1.39

6220

Stainless Steel Flat Washer

234062670

$1.74

6230

Hex. Flange Elastic Nut M6

233261466

$1.66

6300

Body Panel Deflector

707901275

$50.74

6310

Torx Truss Screw M6 X 16

250000721

$1.39

6320

Stainless Steel Flat Washer

234062670

$1.74

6330

Hex. Flange Elastic Nut M6

233261466

$1.66

6400

Body Panel Deflector

707901274

$50.74

6410

Torx Truss Screw M6 X 16

250000721

$1.39

6420

Stainless Steel Flat Washer

234062670

$1.74

6430

Hex. Flange Elastic Nut M6

233261466

$1.66

6500

Body Panel Deflector

707901476

$49.97
