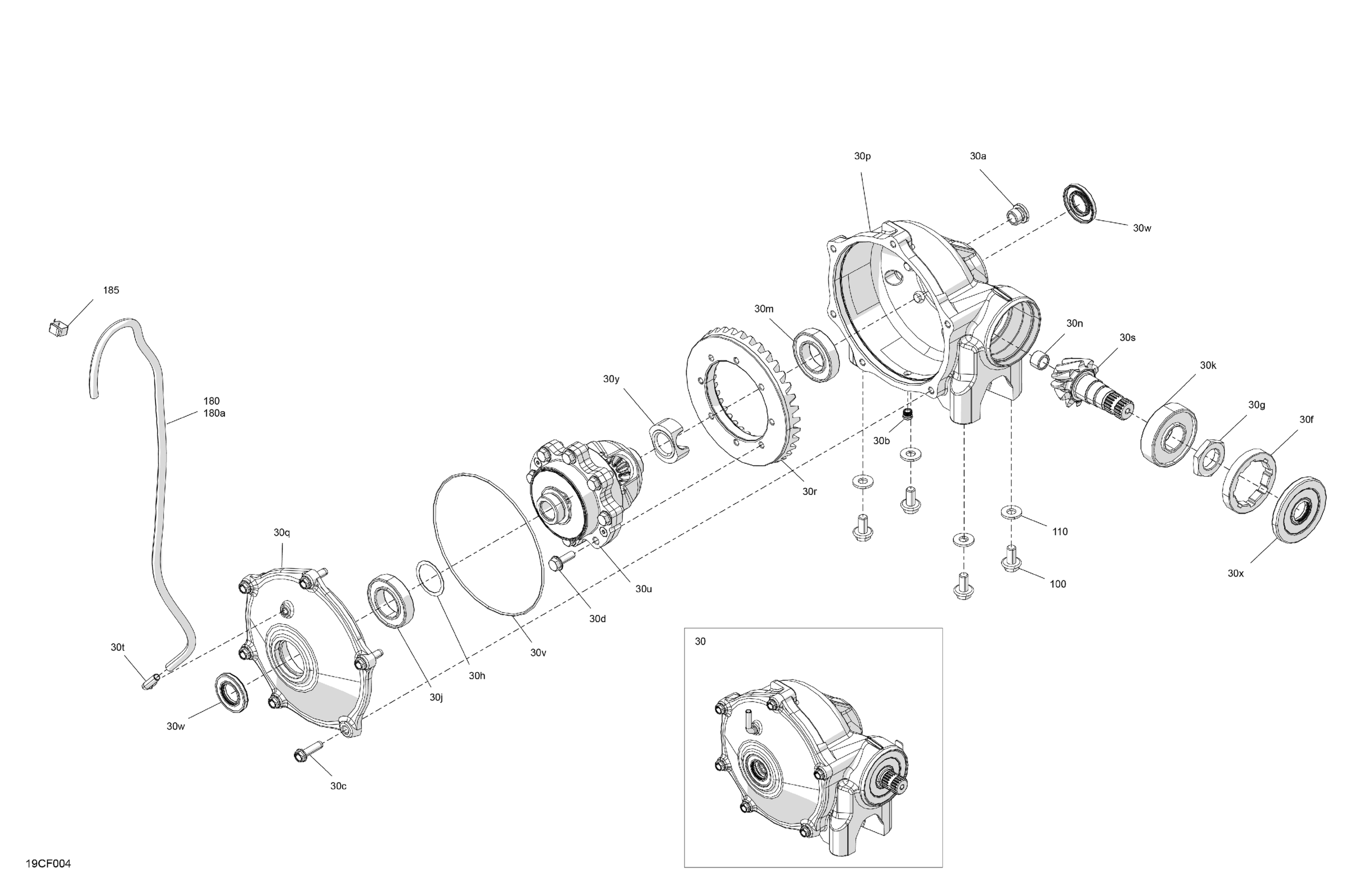

Can-Am Defender - HD9 - BASE - 6WTA - Compass Green - 62" Width, 2026 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30y

705403688

$1,280.57

30a

Fill Level Plug

705501889

$18.63

30b

Drain Plug | After May 30, 2014

705501885

$11.93

30c

Bolt

705501886

$6.30

30d

Hex Flange Screw Serrated M8 X 25

705403382

$10.96

30f

Nut M75 X 1.5

705401819

$22.36

30g

Nut M27 X 1.5

705401820

$19.37

30h

Shim | 4X4

705401604

$51.46

30j

Ball Bearing

705402847

$44.75

30k

Ball Bearing | 4X4

705401606

$47.73

30m

Ball Bearing

705401821

$29.82

30n

Ball Bearing | After May 30, 2014

705402848

$44.75

30p

Sprocket Cover

705402765

$143.25

30q

Machined Differential Cover

705403704

$143.25

30r

Gear 36 Teeth

705403693

$341.76

30s

Final Drive Pinion 10 Teeth

705403703

$185.79

30t

Vent Valve

705401935

$13.43

30u

Differential | Base Package

705402377

$1,128.49

30v

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$7.94

30w

Oil Seal

705401836

$6.96

30x

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$17.13

30y

Spacer

715008576

$31.31

100

Hex. Flange Screw M10 X 25

207502546

$2.00

110

Conical Spring Washer 10 mm

234201474

$1.60

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

180a

Not Available As Spare Parts

XXX

Unavailable

185

Clip

710010204

$1.40
