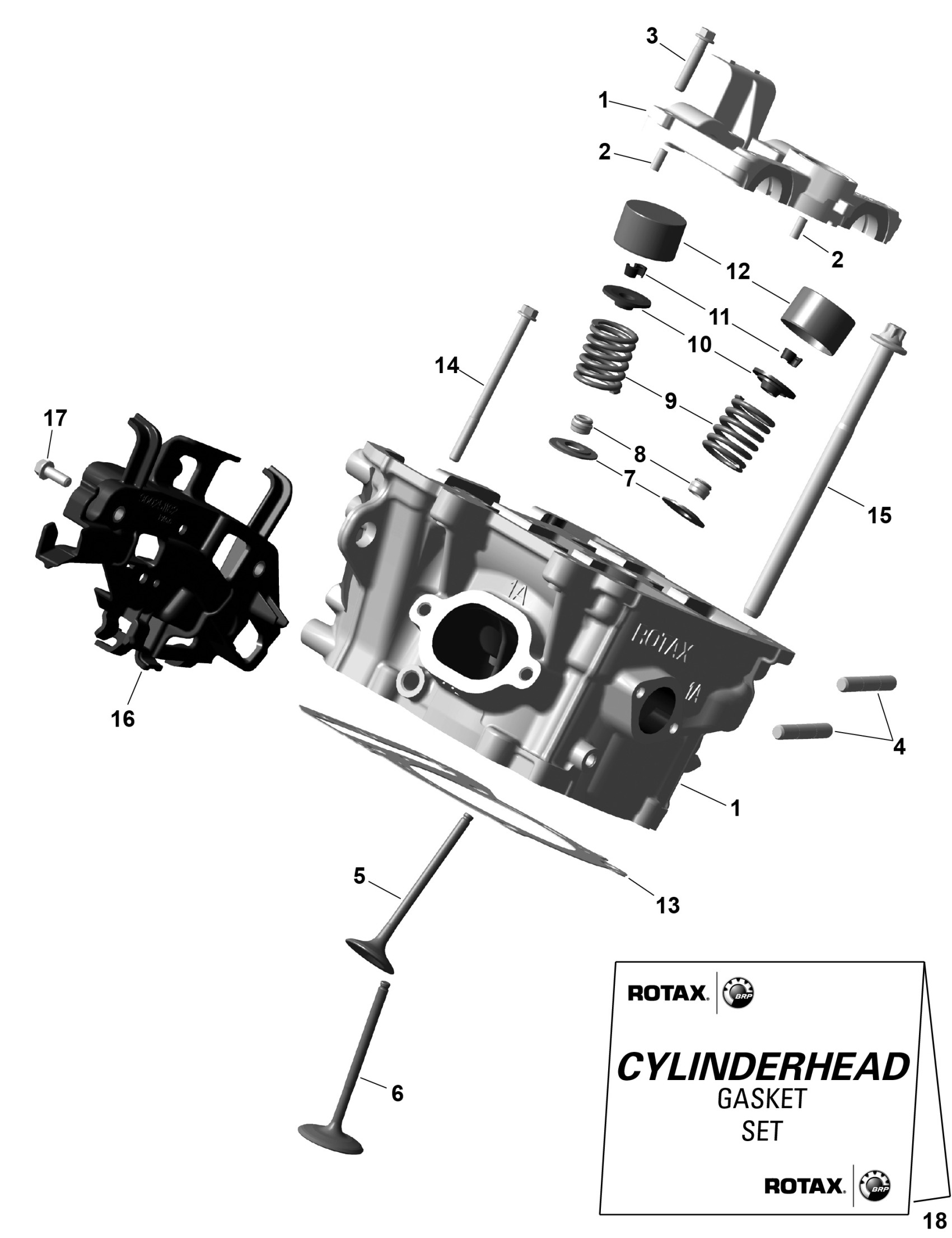

Can-Am Defender - HD7 - BASE - 6XTC - Compass Green - 62" Width - CALI, 2026 ROTAX - Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Ass'y | Includes no. 1-4

420413561

$670.49

2

NEEDLE PIN - Call your local BRP dealership

420232710

Unavailable

3

Torx Flange Screw M6 X 30

420440647

$2.00

4

Stud M8 x 26

420941014

$14.22

5

Intake Valve, 36.5 mm

420254422

$41.49

6

Exhaust Valve 31 Mm

420254426

$45.49

7

Spring Seat

420427350

$2.59

8

Valve Stem Seal

420430420

$7.90

9

Valve Spring

420939585

$9.95

10

Valve Spring Retainer

420855191

$9.42

11

Valve Cotter

420254602

$2.40

12

Valve Lifter Bucket 34/3.00

420954200

$8.47

12

Valve Lifter Bucket 34/3.06

420954203

$8.47

12

Valve Lifter Bucket 34/3.08

420954204

$8.47

12

Valve Lifter Bucket 34/3.02

420954201

$8.47

12

Valve Lifter Bucket 34/3.04

420954202

$8.47

12

Valve Lifter Bucket 34/3.22

420954211

$8.47

12

Valve Lifter Bucket 34/3.24

420954212

$8.47

12

Valve Lifter Bucket 34/3.18

420954209

$8.47

12

Valve Lifter Bucket 34/3.20

420954210

$8.47

12

Valve Lifter Bucket 34/3.10

420954205

$8.47

12

Valve Lifter Bucket 34/3.12

420954206

$8.47

12

Valve Lifter Bucket 34/3.16

420954208

$8.47

12

Valve Lifter Bucket 34/3.14

420954207

$8.47

12

Valve Lifter Bucket 34/3.26

420954213

$8.47

12

Valve Lifter Bucket 34/3.28

420954214

$8.47

12

Valve Lifter Bucket 34/3.40

420954220

$8.47

12

Valve Lifter Bucket 34/3.38

420954219

$8.47

12

Valve Lifter Bucket 34/3.36

420954218

$8.47

12

Valve Lifter Bucket 34/3.34

420954217

$8.47

12

Valve Lifter Bucket 34/3.32

420954216

$8.47

12

Valve Lifter Bucket 34/3.30

420954215

$8.47

12

Valve Lifter Bucket 34/3.46

420954223

$8.47

12

Valve Lifter Bucket 34/3.48

420954224

$8.47

12

Valve Lifter Bucket 34/3.50

420954225

$8.47

12

Valve Lifter Bucket 34/3.44

420954222

$8.47

12

Valve Lifter Bucket 34/3.42

420954221

$8.47

13

Cylinder Head Gasket | Included in gasket kit

420450345

$50.99

14

Torx Flange Screw M6 X 85

420641228

$7.41

15

Torx Screw M10 X 159

420441287

$12.71

16

Conductor Holder

420251182

$16.99

17

Torx Flange Screw M6 X 16

420440164

$2.19

18

Cylinder Head Gasket Kit

703501187

$65.49
