Description

Price

20

Molded Collector Cap

705801418

$3.85

30

Ventilation Grille

705801049

$12.45

40

Ventilation Duct Intake

705801171

$10.00

50

Ventilation Duct

705801134

$27.66

60

Screw M4 X 16

250000725

$2.87

70

Rear Molded Ext Trim

705801488

$11.98

80

Air Filter

705801050

$43.05

90

LH Lower Panel

705801503

$11.98

110

Screw M4 X 16

250000725

$2.87

120

Torx-Truss Pt K40 X 16

250000759

$1.74

130

Screw M4 X 16

250000725

$2.87

150

Gasket

705801663

$8.29

160

Gasket

705801664

$8.29

350

Clip

517306478

$1.37

500

Lower Console Support

705801245

$18.43

505

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

510

Hex. Elastic Stop Nut M8

232581414

$0.47

515

Flat Washer 8 mm

234082410

$1.11

550

RH Upper Console Support

705801810

$15.35

555

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

600

LH Upper Console Support

705801811

$13.83

605

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

610

Stainless Steel Flat Washer

234062670

$1.74

700

Air Filter

705800395

$32.28

800

LH Front Ventilation Grille Ass'y | Includes 800 to 800c

705801074

$55.35

800c

Torx-Truss Pt K40 X 16

250000759

$1.74

805

Panel Nut M6 X 1.0

250100208

$1.07

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

850

RH Front Ventilation Grille Ass'y | Includes 850 to 850c

705801073

$55.35

850c

Torx-Truss Pt K40 X 16

250000759

$1.74

900

Gasket Cut

705801508

$8.29

950

Screw M4 X 16

250000725

$2.87

1000

Ventilation Grille

705801069

$11.18

1250

Molded Plug

705801688

$2.75

1300

LH Front Formed Ventilation Duct

705801056

$65.35

1350

Screw M4 X 16

250000725

$2.87

1400

RH Front Formed Ventilation Duct

705801055

$65.35

1450

Screw M4 X 16

250000725

$2.87

2000

Ventilation Grille Ass'y

705801059

Unavailable

2300

LH Under Formed Ventilation Duct

705801058

$16.89

2400

Screw M4 X 16

250000725

$2.87

2500

RH Under Formed Ventilation Duct

705801057

$19.20

2600

Screw M4 X 16

250000725

$2.87

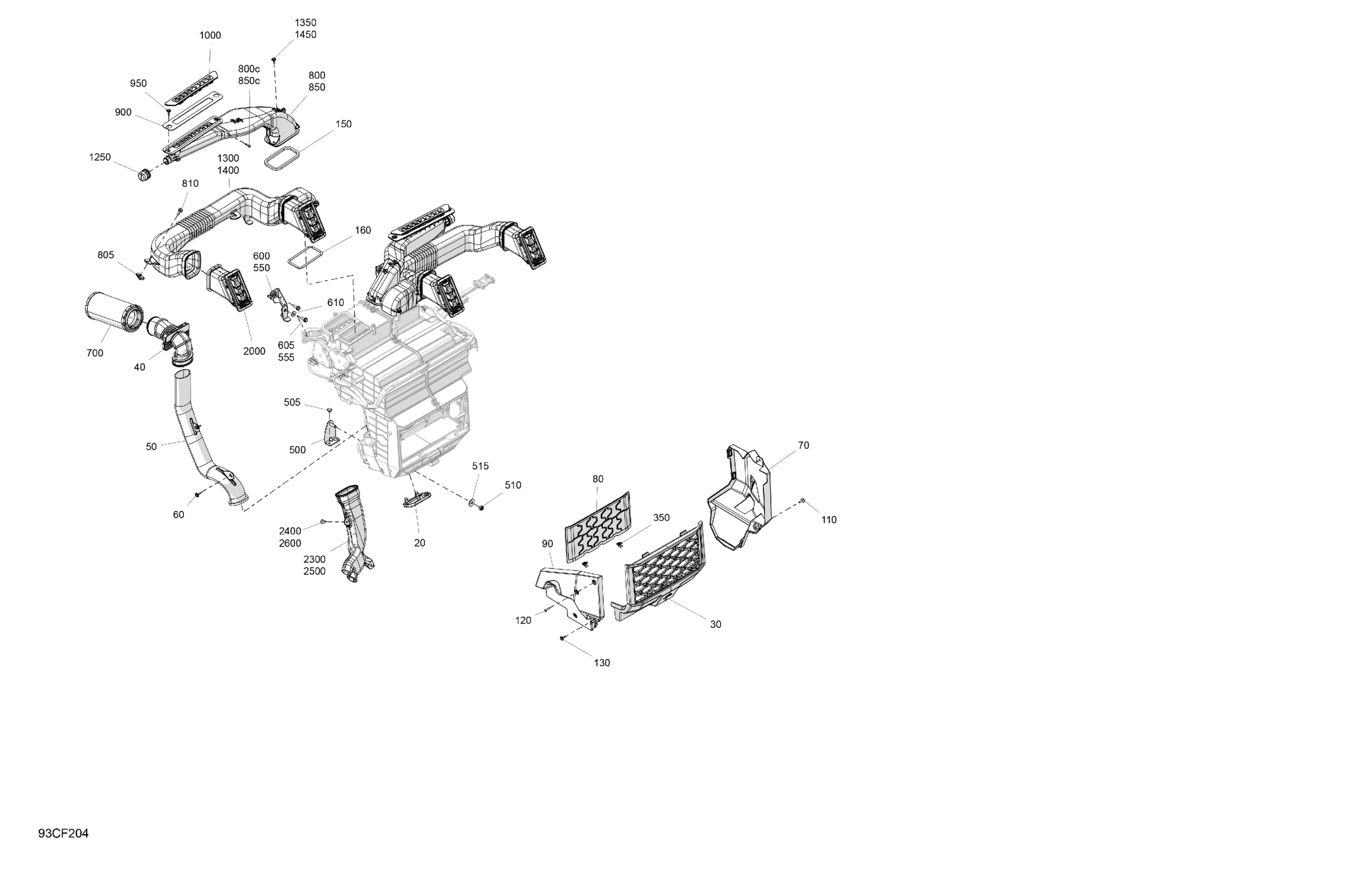

Can-Am Traxter - HD11 - XU - 7NTB - Stealth Black - 65" Width, 2026 Miscellaneous - Options Diagram

Molded Collector Cap

Ventilation Grille

Ventilation Duct Intake

Ventilation Duct

Screw M4 X 16

Rear Molded Ext Trim

Air Filter

LH Lower Panel

Screw M4 X 16

Torx-Truss Pt K40 X 16

Screw M4 X 16

Gasket

Gasket

Clip

Lower Console Support

Black, Pop Rivet 3/16 X ,425

Hex. Elastic Stop Nut M8

Flat Washer 8 mm

RH Upper Console Support

Hex. Flange Screw S.Grip M6 X 20

LH Upper Console Support

Hex. Flange Screw S.Grip M6 X 20

Stainless Steel Flat Washer

Air Filter

LH Front Ventilation Grille Ass'y | Includes 800 to 800c

Torx-Truss Pt K40 X 16

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 16, Scotch Grip

RH Front Ventilation Grille Ass'y | Includes 850 to 850c

Torx-Truss Pt K40 X 16

Gasket Cut

Screw M4 X 16

Ventilation Grille

Molded Plug

LH Front Formed Ventilation Duct

Screw M4 X 16

RH Front Formed Ventilation Duct

Screw M4 X 16

Ventilation Grille Ass'y

LH Under Formed Ventilation Duct

Screw M4 X 16

RH Under Formed Ventilation Duct

Screw M4 X 16
