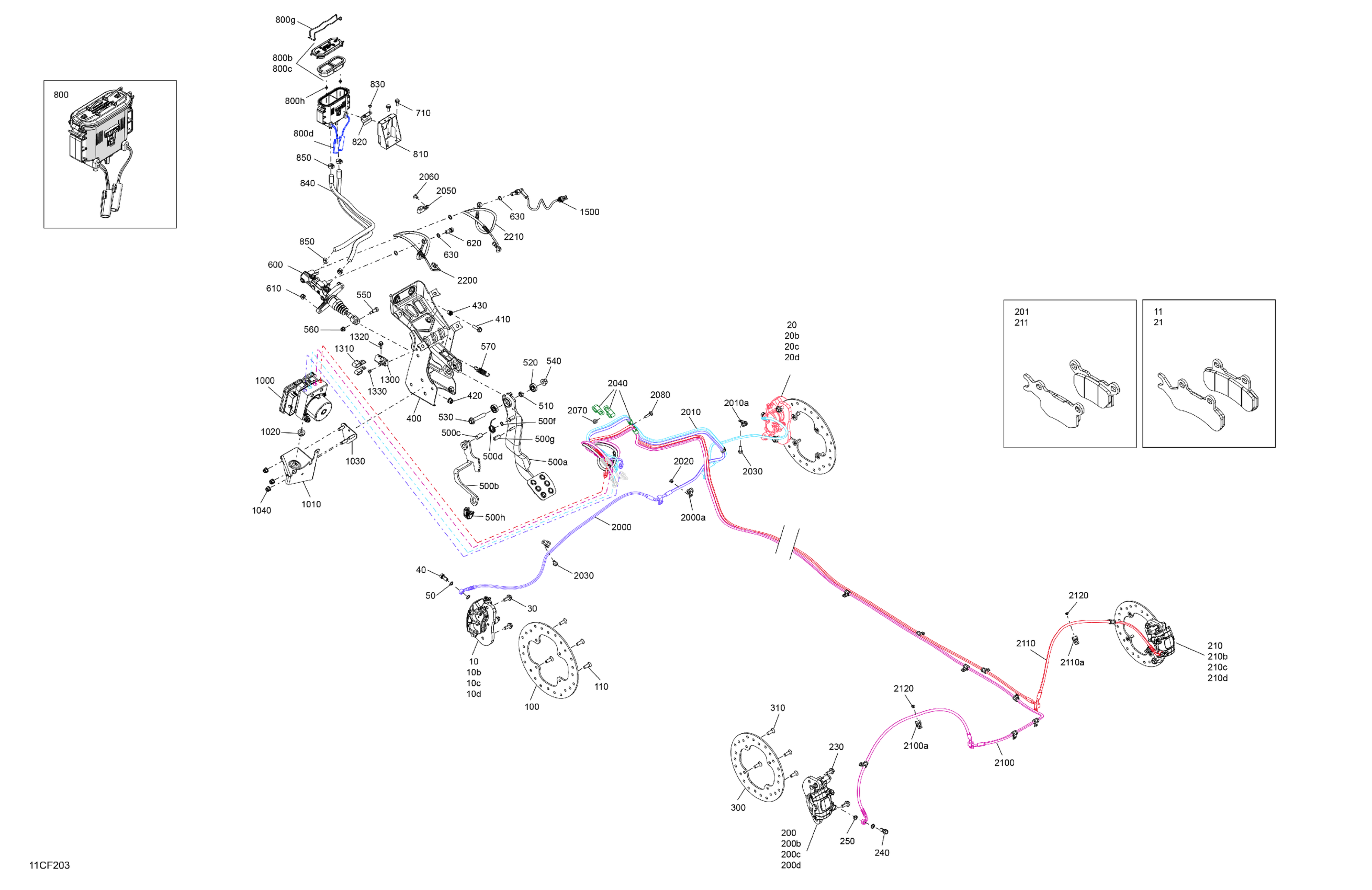

Can-Am Traxter - HD11 - XU - 7NTB - Stealth Black - 65" Width, 2026 Mechanic - Brake System Diagram

LH Front Brake Caliper | Includes 10 to 10d

705602220

$249.99

Pin Kit | Packages STD & PRO

715900384

$12.12

Bleeding Screw

705601017

$6.35

Cap Spring Kit

715900385

$17.59

LH/RH Brake Pad Kit

703501260

$119.99

RH Front Brake Caliper | Includes 20 to 20d

705602221

$249.99

Pin Kit | Packages STD & PRO

715900384

$12.12

Bleeding Screw

705601017

$6.35

Cap Spring Kit

715900385

$17.59

LH/RH Brake Pad Kit

703501260

$119.99

Hex. Flange Screw M10 X 25

207502546

$2.11

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Copper Washer

705601628

$4.44

Front Disc Brake

705602082

$119.99

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

LH Rear Brake Caliper | Includes 200 to 200d

705602224

$219.99

Pin Kit | Packages STD & PRO

715900384

$12.12

Bleeding Screw

705601017

$6.35

Cap Spring Kit

715900385

$17.59

LH/RH Rear Brake Pad Kit

703501261

$119.99

RH Rear Brake Caliper | Includes 210 to 210d

705602225

$219.99

Pin Kit | Packages STD & PRO

715900384

$12.12

Bleeding Screw

705601017

$6.35

Cap Spring Kit

715900385

$17.59

LH/RH Rear Brake Pad Kit

703501261

$119.99

Hex. Flange Screw M10 X 25

207502546

$2.11

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Copper Washer

705601628

$4.44

Rear Brake Disc

705602083

$109.99

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

Pedal Support

705602126

$58.99

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Brake Pedal

705602086

$58.99

Parking Brake Lever

705602134

$48.99

Bushing

705601722

$8.85

Torsion Spring

705602174

$11.49

Circlip

705601770

$2.68

Hose

219704549

$50.99

Adjustment Handle

708002655

$16.99

Bushing

705601622

$14.81

Bearing

705600458

$19.99

Hex. Flange Screw M10 X 55

207605546

$2.11

Flange Elastic Nut M10

233201466

$3.17

Socket Head Screw M8 X 16

250000669

$3.17

Hex. Flange Elastic Nut M6

233261494

$1.58

Brake Pedal Spring

705600792

$9.10

Master Cylinder

705602306

$379.99

Hex. Elastic Flange Nut M8

233281416

$1.48

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Copper Washer

705601628

$4.44

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

Diaphragm Cover Ass'y

219800350

$17.59

Diaphragm Cover Ass'y

219800350

$17.59

Oil Level Sensor

705601073

$54.99

Spindle Lock

705601294

$15.81

Push Nut | Not shown

211100002

$2.19

Tank Support

705602106

$35.99

Stopper Bracket

705601608

$7.55

Pop Rivet 3/16 X ,425

293150293

$0.35

Hose

705602107

$10.49

Oetiker Clamp

293650046

$2.89

Mod ESP Wet Prog & Grommet Kit

703501248

$1.00

Module Support

705602125

$86.99

Vibration Damper

710009090

$10.49

Support

705209564

$10.99

Hex. Elastic Flange Nut M8

233281416

$1.48

Hose Support

705602160

$6.09

OPEN CLAMP - Call your local BRP dealership

515175980

Unavailable

Hex. Flange Screw M6 X 16

207661654

$2.11

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

Brake Switch

705601669

$51.99

LH Front Caliper Hose | Includes 2000 to 2000a

705602108

$149.99

Clamp

293650256

$5.49

RH Front Caliper Hose | Includes 2010 to 2010a

705602109

$149.99

Clamp

293650256

$5.49

Pop Rivet 3/16 X ,425

293150293

$0.35

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

Open Clamp

515175507

$1.89

Open Clamp

515175507

$1.89

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

Elastic Flange Nut M5

233251494

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

LH Rear Caliper Hose | Includes 2100 to 2100a

705602110

$149.99

Clamp

293650256

$5.49

RH Rear Caliper Hose | Includes 2110 to 2110a

705602111

$149.99

Clamp

293650256

$5.49

Pop Rivet 3/16 X ,425

293150293

$0.35

Front Master Cylinder Hose

705602104

$69.99

Rear Master Cylinder Hose

705602105

$69.99
