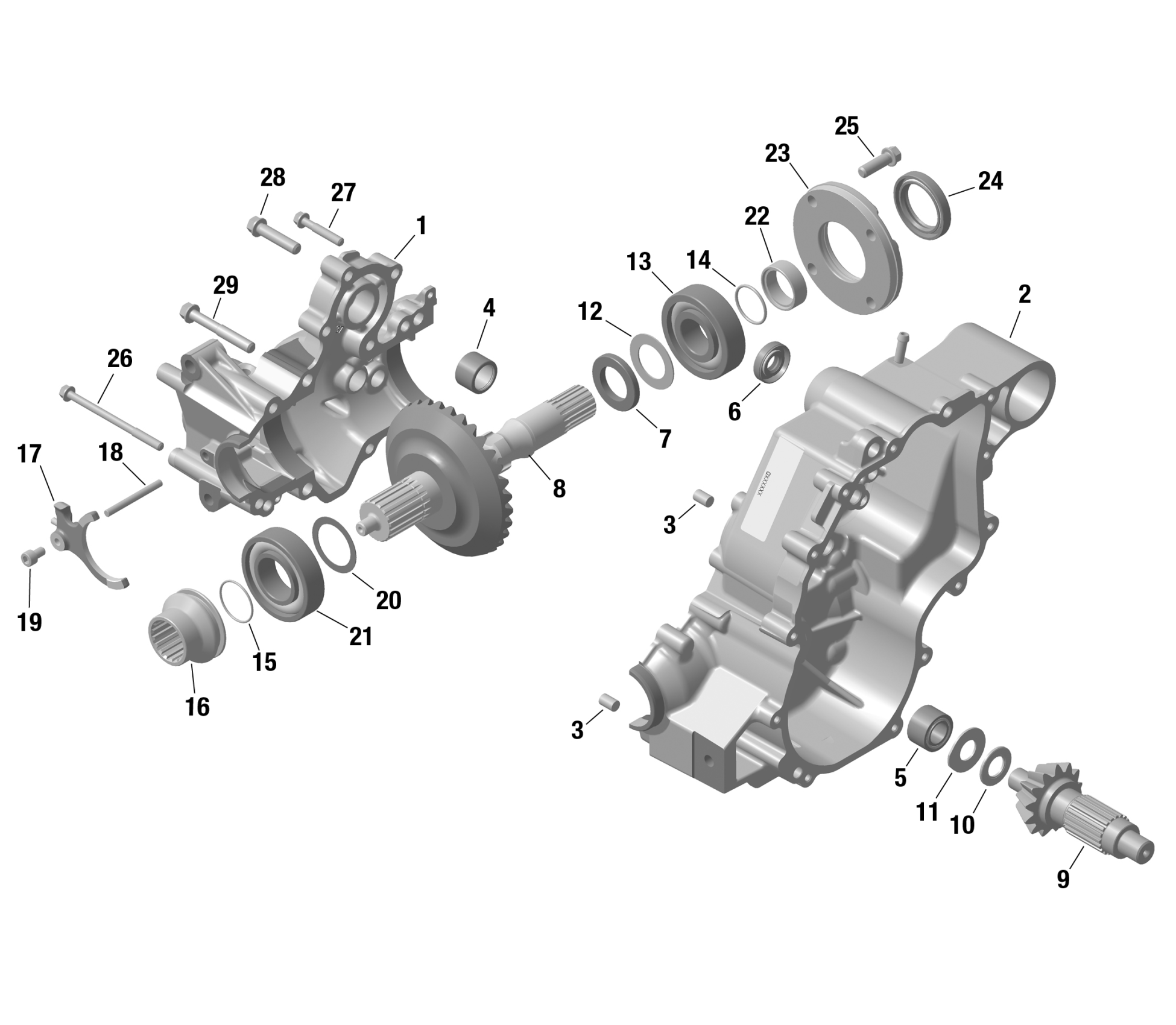

Can-Am Outlander 850 EFI 4X4 - 4KRA - X MR Package - Legion Red, 2024 ROTAX - GearBox 1 Diagram

#

Description
Price

1

Gear Housing Ass'y | Includes 1a to 7

420686205

$929.99

2

Not Available As Spare Parts

XXX

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Needle Bushing

420832240

$20.99

5

Needle Bushing

420232085

$37.99

6

Oil Seal

420250450

$17.04

7

Distance Ring

420247772

$20.99

8

Drive Ass'y | Includes 13a to 14

420635557

$444.99

9

Not Available As Spare Parts

XXX

Unavailable

10

Axial Needle Bearing

420632300

$18.49

11

Thrust Washer Set, MAG Side

420281306

$61.49

12

Washer Thrust Set

420281300

$95.49

13

Ball Bearing

420932822

$30.49

14

O-Ring

420631612

$4.33

15

O-Ring

420630040

$4.44

16

Shifting Sleeve

420257674

$129.99

17

Shifting Fork

420257606

$48.99

18

Needle Pin

420832650

$7.73

19

Allen Screw M6 X 10

420241081

$2.11

20

Shim 0.5

420944584

$4.12

21

Ball Bearing

420932580

$10.33

22

Distance Ring

420247125

$20.99

23

Bearing Cover

420611444

$48.49

24

Oil Seal

420950089

$19.49

25

Torx Flange Screw M8 X 25

420440372

$4.12

26

Torx Flange Screw M6 X 85

420641228

$7.41

27

Torx Flange Screw M6 X 35

420440274

$1.01

28

Torx Flange Screw M8 X 35

420641188

$7.41

29

Torx Flange Screw M8 X 55

420641213

$7.41
