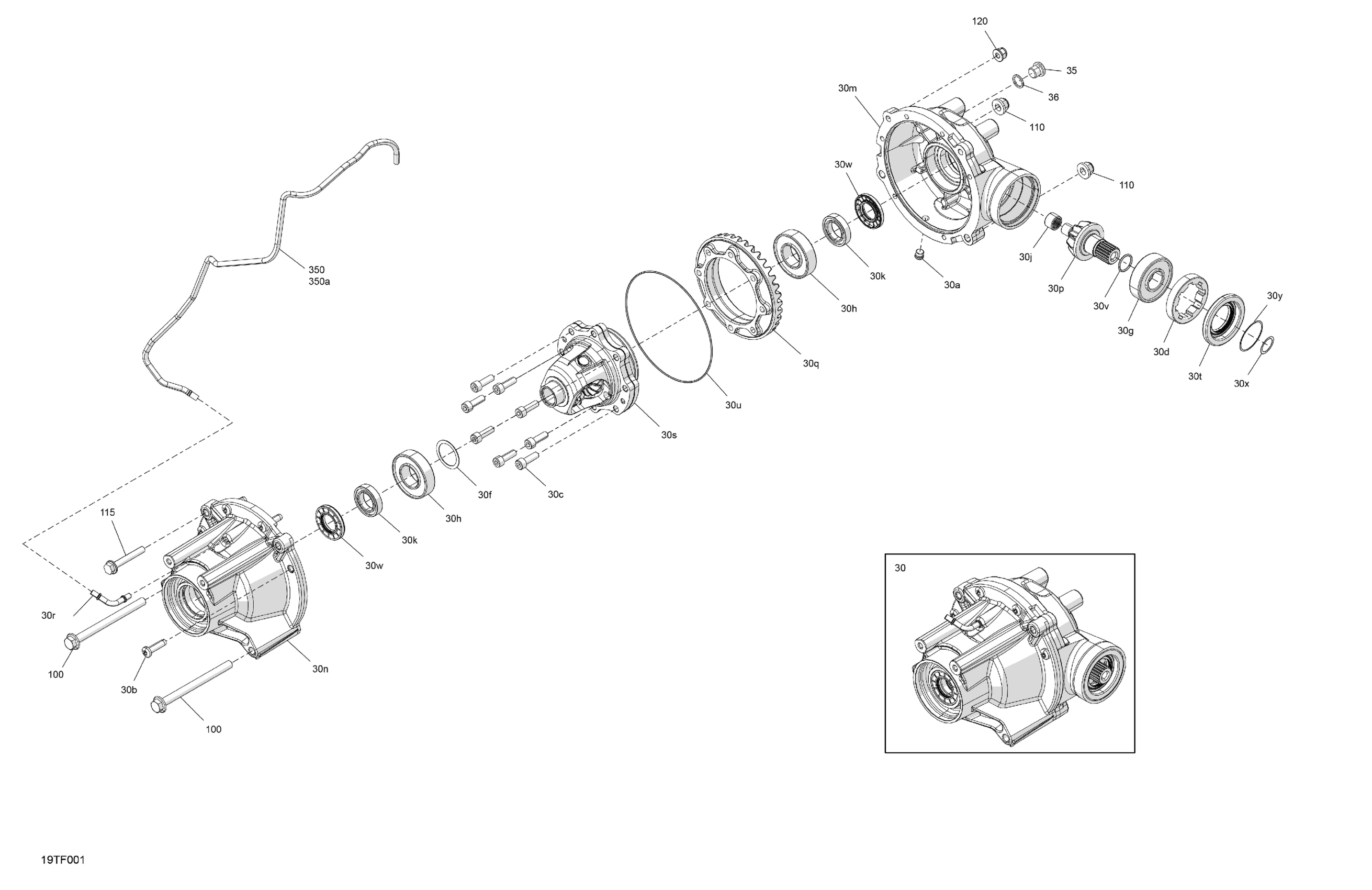

Can-Am RENEGADE - 4X4 - XXC - 650 EFI - 5RTA - Catalyst Gray - 2026 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential | Includes 30 to 30y

705402020

$929.99

30a

Drain Plug | After May 30, 2014

705501885

$14.22

30b

Screw | 4X4

705401601

$10.49

30c

Screw | After May 30, 2014

705401602

$6.19

30d

Nut | 4X4

705401603

$35.99

30f

Shim | 4X4

705401604

$57.99

30g

Ball Bearing | After May 30, 2014

705401605

$31.99

30h

Ball Bearing | 4X4

705401606

$51.99

30j

Ball Bearing | After May 30, 2014

705402848

$49.99

30k

Ball Bearing | After May 30, 2014

705401608

$51.99

30m

Front Pinion Cover | After May 30, 2014

705401792

$149.99

30n

Front Cover | After May 30, 2014

705401610

$149.99

30p

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

30q

Gear 36 Teeth | After May 30, 2014

705401612

$409.99

30r

Vent Valve | After May 30, 2014

705401613

$16.49

30s

Differential

705402128

$977.49

30t

Oil Seal | After May 30, 2014

705401615

$19.49

30u

Seal | After May 30, 2014

705401616

$14.28

30v

O'Ring | After May 30, 2014

705401617

$7.20

30w

Gasket | 4X4

705401618

$18.49

30x

Shim

705401769

$7.69

30y

Shim

705401770

$7.09

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

100

Hex. Flange Screw M10 X 125

230602546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Hex. Flange Screw M8 X 55

207685544

$5.39

120

Hex. Flange Elastic Nut M8

233281414

$1.47

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

350a

Not Available As Spare Parts

XXX

Unavailable
