Description

Price

1

LH Gear Housing Ass'y | Includes 1a to 10

420212215

$561.49

2

Center Pin 8 X 12

420632010

$4.01

3

Intermedite Gear, 21 Teeth

420434582

$43.99

4

Needle Bearing | See Item 21a

420232654

$20.99

5

Intermedite Gear Shaft

420620681

$51.99

6

Ball Bearing

420632295

$47.49

7

Ball Bearing

420932822

$30.49

8

Torx Screw M6X13

420240051

$0.90

9

Not Available As Spare Parts

XXX

Unavailable

10

Oil Seal

420950089

$19.49

11

Support

420611453

$104.99

12

Torx Flange Screw M6 X 30

420840888

$1.69

13

Index Spring

420239561

$12.18

14

Step Ring

420227717

$12.12

15

Index Lever

420248526

$20.99

16

Washer

420827300

$5.24

17

Allen Screw M6 X 55

420240332

$5.35

18

Parking Lock Lever Ass'y

420258622

$71.99

19

Plain Washer

420227931

$2.68

20

Torx Flange Screw M8 X 35

420641188

$7.41

21

Needle Bearing

420632070

$25.99

22

Pinion Gear, 46 Teeth

420435730

$109.99

23

Retaining Ring

420845772

$6.38

24

Pinion Gear, 35 Teeth

420434547

$104.99

25

Thrust Washer

420427011

$5.79

26

Pigion Gear, 31 Teeth

420434532

$67.99

27

Needle Bearing | See Item 21a

420232654

$20.99

28

Thrust Washer Set, CVT Side

420281302

$86.99

29

Needle Bushing

420832240

$20.99

30

Countershaft, 14 Teeth

420620674

$147.99

31

Needle Bearing

420632070

$25.99

32

Pinion Gear, 28 Teeth

420934102

$77.99

33

Retaining Ring

420845772

$6.38

34

Shift Gear, 20 Teeth

420435740

$70.99

35

Fork Spindle

420258389

$24.99

36

Shifting Fork

420657311

$89.99

37

Shifting Fork

420657321

$88.99

38

Shift Drum Ass'y

420657338

$119.99

38

Shift Drum

420657336

Unavailable

39

Isolating Washer

420626092

$6.67

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Shift Shaft Ass'y

420620923

$98.99

43

Torx Flange Screw M6 X 35

420440274

$1.01

44

O-Ring

420631612

$4.33

45

Distance Ring

420647267

$42.49

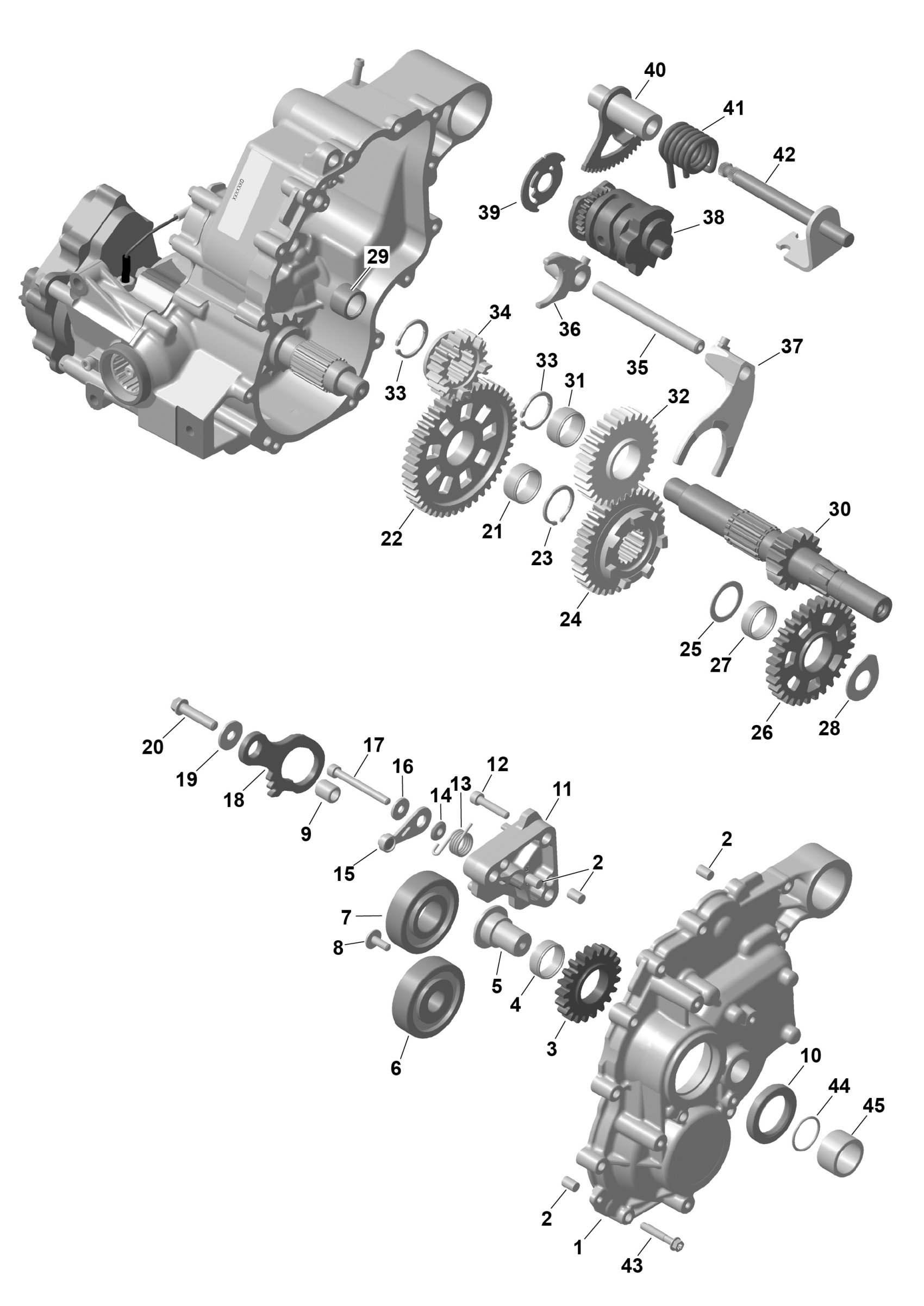

Can-Am RENEGADE - 4X4 - XMR - 650 EFI - 5TTA - Catalyst Gray - 2026 ROTAX - GearBox 2 Diagram

LH Gear Housing Ass'y | Includes 1a to 10

Center Pin 8 X 12

Intermedite Gear, 21 Teeth

Needle Bearing | See Item 21a

Intermedite Gear Shaft

Ball Bearing

Ball Bearing

Torx Screw M6X13

Not Available As Spare Parts

Oil Seal

Support

Torx Flange Screw M6 X 30

Index Spring

Step Ring

Index Lever

Washer

Allen Screw M6 X 55

Parking Lock Lever Ass'y

Plain Washer

Torx Flange Screw M8 X 35

Needle Bearing

Pinion Gear, 46 Teeth

Retaining Ring

Pinion Gear, 35 Teeth

Thrust Washer

Pigion Gear, 31 Teeth

Needle Bearing | See Item 21a

Thrust Washer Set, CVT Side

Needle Bushing

Countershaft, 14 Teeth

Needle Bearing

Pinion Gear, 28 Teeth

Retaining Ring

Shift Gear, 20 Teeth

Fork Spindle

Shifting Fork

Shifting Fork

Shift Drum Ass'y

Shift Drum

Isolating Washer

Not Available As Spare Parts

Not Available As Spare Parts

Shift Shaft Ass'y

Torx Flange Screw M6 X 35

O-Ring

Distance Ring
