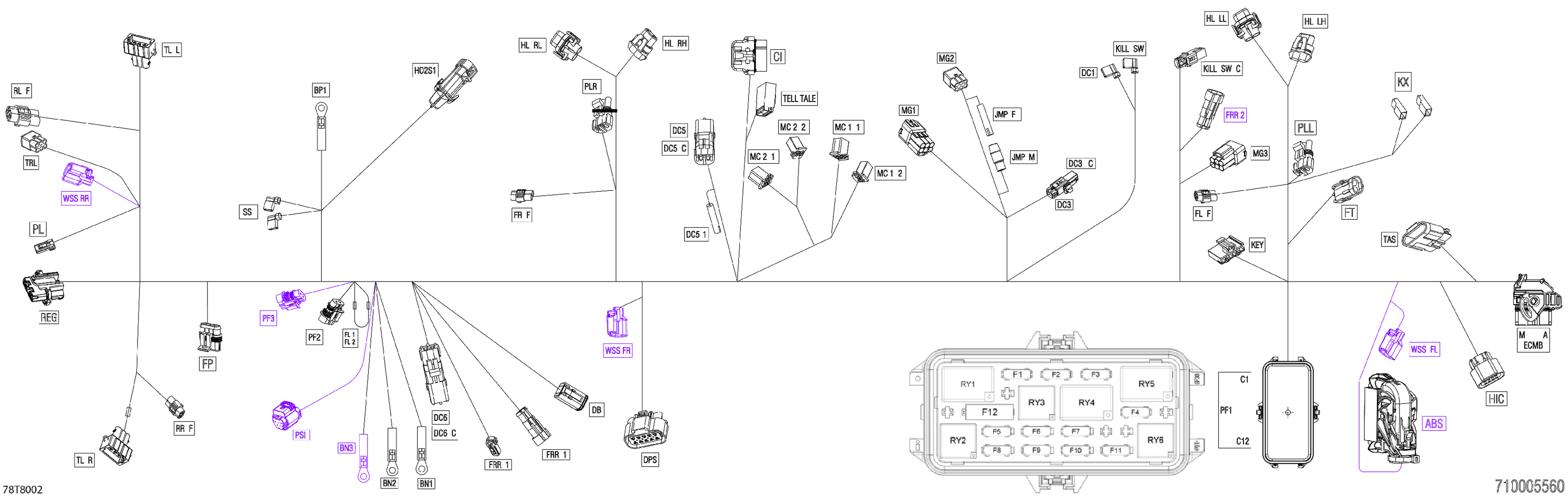

Can-Am RENEGADE - 4X4 - XXC - 650 EFI - 4UJA - Can-Am Red, 2018 Electric - Main Harness - 710005560 Diagram

#

Description
Price

200

Main Harness

710005560

$969.20

ABS

RH Connector Cover

710002772

$4.60

ABS

Housing

710002768

$17.66

ABS

Plug

710001258

$3.98

ABS

Wire Seal

278000999

$2.55

ABS

Wire Seal

710001159

$6.45

ABS

Wire Seal

710006230

$1.37

ABS

Female Terminal

710000836

$5.46

ABS

Terminal

710002773

$1.83

ABS

Terminal

710002775

$0.69

BN1

Terminal

710000913

$5.46

BN2

Open Barrel Terminal

278001392

$4.12

BN3 (ST)

Open Barrel Terminal

278001392

$4.12

BP1

Open Barrel Terminal

278001392

$4.12

CI

Female Housing, 24 Circuits

515175801

$9.00

CI

Retainer Block

515175802

$10.66

CI

Plug

515175812

$1.70

CI

Female Housing

710000399

$14.02

CI

Wire Seal

515175803

$2.41

CI

Female Terminal

710001131

$7.00

D2

Diode

409012700

$10.83

DB

Female Housing 6 Circuits

710002706

$16.22

DB

Lock

710002705

$3.61

DB

Plug

710005437

$3.08

DB

Female Terminal

710005438

$4.00

DB

Female Terminal

710005439

$4.28

DC1

Female Terminal

409010300

$4.12

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Female Terminal

515175231

$4.12

DC3 C

Male Housing, 2 Circuits

710000667

$7.48

DC5

Male Connector, 2 Circuits

278000220

$11.02

DC5

Wire Seal

278001065

$6.03

DC5

Female Terminal

278000223

$2.55

DC5 1

Insulated Sheath

278001007

$3.22

DC5 1

Female Terminal

710000421

$5.46

DC5 C

Clip

710000992

$4.00

DC5 C

Female Housing, 2 Circuits

278000217

$7.59

DC5 C

Wire Seal

278000216

$2.55

DC6

Male Connector, 2 Circuits

278000220

$11.02

DC6

Wire Seal

278001065

$6.03

DC6

Female Terminal

278000223

$2.55

DC6 C

Clip

710000992

$4.00

DC6 C

Female Housing, 2 Circuits

278000217

$7.59

DC6 C

Wire Seal

278000216

$2.55

DPS

Female Housing

710004989

$7.22

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Terminal

710001873

$2.02

DPS

Female Terminal

278002187

$5.04

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

Molex Housing, 48 Circuits

710001967

$136.12

ECMB

Plug

710001592

$2.12

ECMB

Plug

710001593

$2.12

ECMB

Female Terminal

710001589

$1.79

ECMB

Terminal

710001728

$5.91

ECMB

Female Terminal

710001727

$2.55

F1

Little Fuse, 10 Amperes

710000744

$7.24

F10

Little Fuse, 10 Amperes

710000744

$7.24

F11

Little Fuse, 25 Ampere

278002389

$4.42

F12

Fuse, 25 Amps

710002590

$18.43

F2

Little Fuse, 30 Amperes

710000747

$6.77

F3

Little Fuse, 20 Amperes

710000746

$6.77

F4

Little Fuse, 20 Amperes

710000746

$6.77

F5

Little Fuse, 10 Amperes

710000744

$7.24

F6

Little Fuse, 10 Amperes

710000744

$7.24

F7

Little Fuse, 10 Amperes

710000744

$7.24

F8

Little Fuse, 10 Amperes

710000744

$7.24

F9

Little Fuse, 10 Amperes

710000744

$7.24

FL F

Wire Seal

710000402

$4.42

FL F

Female Terminal

409012100

$3.73

FL 1

Fuse Link

710004228

Unavailable

FL 2

Fuse Link

710004228

Unavailable

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

278001013

$2.72

FP

Wire Seal

515176621

$7.00

FP

Female Terminal

278001014

$2.72

FP

Female Terminal

710001340

$5.11

FR F

Wire Seal

710000402

$4.42

FR F

Female Terminal

409012100

$3.73

FRR1

Male Terminal Housing, 2 Circuits

409209400

$14.97

FRR1

Wire Seal

515176621

$7.00

FRR1

Male Terminal

515176164

$6.43

FRR2

Male Terminal Housing, 2 Circuits

409209400

$14.97

FRR2

Wire Seal

515176621

$7.00

FRR2

Male Terminal

515176164

$6.43

FT

Clip Bracket Connector (edge)

409210100

$2.00

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.46

HIC

Housing

710001928

$14.97

HIC

Lock

710001222

$1.68

HIC

Cap

710001225

$7.27

HIC

Seal

710001233

$2.55

HIC

Seal Wire

710001332

$2.72

HIC

Terminal

710001229

$3.02

HIC

Terminal

710001228

$2.72

HL LH

Housing

710002278

$7.98

HL LH

Lock

710002279

$4.60

HL LH

Wire Seal

710001427

$1.83

HL LH

Female Terminal

278002578

$0.86

HL LL

Housing

710002578

$3.98

HL LL

Lock

710002584

$4.60

HL LL

Wire Seal

710001427

$1.83

HL LL

Female Terminal

278002578

$0.86

HL RH

Housing

710002278

$7.98

HL RH

Lock

710002279

$4.60

HL RH

Wire Seal

710001427

$1.83

HL RH

Female Terminal

278002578

$0.86

HL RL

Housing

710002578

$3.98

HL RL

Lock

710002584

$4.60

HL RL

Wire Seal

710001427

$1.83

HL RL

Female Terminal

278002578

$0.86

HO2S1

Housing

710002466

$2.98

HO2S1

Lock

710002469

$1.98

HO2S1

Seal

278001482

$2.55

HO2S1

Terminal

710000736

$5.35

HO2S1

Gold Terminal

710002597

$2.98

JMP F

Insulated Sheath

278001007

$3.22

JMP F

Female Terminal

710000421

$5.46

JMP M

Insulated Sheath

278001008

$3.20

JMP M

Female Terminal

278002261

$6.20

KEY

Male Housing, 6 Circuits

710000849

$7.55

KEY

Lock

710000848

$3.98

KEY

Terminal | Canada/Usa

710001635

$3.98

KEY

Female Terminal

710000274

$8.98

KILL SW

Female Housing, 2 Circuits

515175658

$15.35

KILL SW

Female Terminal

710003896

$1.75

KILL SW C

Male Terminal Housing, 2 Circuits

515175654

$7.48

KX

Female Terminal Housing, 1 Circuit

409010400

$7.48

KX

Female Terminal

409010100

$5.46

MC1 1

Female Housing

710004047

$13.83

MC1 1

Terminal

710002315

$4.60

MC1 2

Female Housing

710004048

$14.75

MC1 2

Terminal

710002315

$4.60

MC2 1

Female Housing

710004047

$13.83

MC2 1

Terminal

710002315

$4.60

MC2 2

Female Housing

710004048

$14.75

MC2 2

Terminal

710002315

$4.60

MG1

Male Terminal Housing, 6 Circuits

710000835

$16.89

MG1

Wire Seal

710000402

$4.42

MG1

Male Terminal

409011300

$5.78

MG2

Female Housing, 6 Circuits

710000081

$8.29

MG2

Cap

710000080

$6.48

MG2

Wire Seal

710000402

$4.42

MG2

Seal

409012300

$4.38

MG2

Female Terminal

409012100

$3.73

MG3

Male Housing Terminal, 6 Circuits

710001446

$4.60

MG3

Wire Seal

710000402

$4.42

MG3

Male Terminal

409011300

$5.78

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Cap

710000840

$5.49

PF1

Wire Seal

278000999

$2.55

PF1

Seal

415128501

$1.51

PF1

Female Terminal

515177009

$5.11

PF1

Female Terminal

515177012

$5.11

PF1 C

Fuse Cover

710001026

$17.52

PF1 C

Fuse Decal

710005953

$61.51

PF1 C

Foam

278002172

$5.49

PF1 C

Little Fuse, 10 Amperes

710000744

$7.24

PF1 C

Little Fuse, 20 Amperes

710000746

$6.77

PF1 C

Little Fuse, 25 Ampere

278002389

$4.42

PF1 C

Little Fuse, 30 Amperes

710000747

$6.77

PF2

Clip

710000992

$4.00

PF2

Fuse Holder Cap

278001326

$6.03

PF2

Fuse

710001613

$7.24

PF2

Fuse Holder

278001325

$8.57

PF2

Female Terminal

710000113

$6.03

PF3

Clip

710000992

$4.00

PF3

Fuse Holder Cap

278001326

$6.03

PF3

Fuse

710001613

$7.24

PF3

Fuse Holder

278001325

$8.57

PF3

Female Terminal

710000357

$6.03

PL

Female Housing, 2 Circuits

515175658

$15.35

PL

Female Terminal

710003896

$1.75

PLL

Male Connector, 2 Circuits

278000220

$11.02

PLL

Wire Seal

278001065

$6.03

PLL

Female Terminal

278000223

$2.55

PLR

Male Connector, 2 Circuits

278000220

$11.02

PLR

Wire Seal

278001065

$6.03

PLR

Female Terminal

278000223

$2.55

PSI

Housing

710005811

$17.66

PSI

Cap

710005946

$3.98

PSI

Seal

710005836

$3.98

PSI

Terminal

710005835

$3.98

R1

Resistor

710005179

$2.75

REG

Female Housing, 3 Circuits

710000879

$21.42

REG

Lock

710005830

$4.14

REG

Seal

710001932

$3.15

REG

Terminal

710001934

$4.51

RL F

Wire Seal

710000402

$4.42

RL F

Female Terminal

409012100

$3.73

RR F

Wire Seal

710000402

$4.42

RR F

Female Terminal

409012100

$3.73

RY1

Relay, 30 AMP

515176774

$19.20

RY2

Relay

715900824

$16.22

RY3

Relay

715900824

$16.22

RY4

Relay, 30 AMP

515176774

$19.20

RY5

Relay, 30 AMP

515176774

$19.20

RY6

Relay

715900824

$16.22

SS

Female Terminal

409010300

$4.12

TAS

Housing

710001231

$12.05

TAS

Lock 6 Positions

710005296

$0.77

TAS

Seal

710001233

$2.55

TAS

Terminal

710001224

$3.02

TELL TALE

Male Terminal Housing, 6 Circuits

515175662

$8.57

TELL TALE

Male Terminal

515175232

$1.49

TL L

Connector, 3 Positions

710003167

$9.22

TL L

Seal

415128501

$1.51

TL L

Female Terminal

278000998

$3.48

TL R

Connector, 3 Positions

710003167

$9.22

TL R

Seal

415128501

$1.51

TL R

Female Terminal

278000998

$3.48

TRL

Female Housing, 6 Circuits

710000081

$8.29

TRL

Wire Seal

710000402

$4.42

TRL

Seal

409012300

$4.38

TRL

Female Terminal

409012100

$3.73

WSS FL

Connector 2 Pins

710005669

$2.75

WSS FL

Seal

710005689

$1.83

WSS FL

Female Terminal 18-20 AWG

515178348

$1.54

WSS FR

Connector 2 Pins

710005669

$2.75

WSS FR

Seal

710005689

$1.83

WSS FR

Female Terminal 18-20 AWG

515178348

$1.54

WSS RR

Connector 2 Pins

710005669

$2.75

WSS RR

Seal

710005689

$1.83

WSS RR

Female Terminal 18-20 AWG

515178348

$1.54
