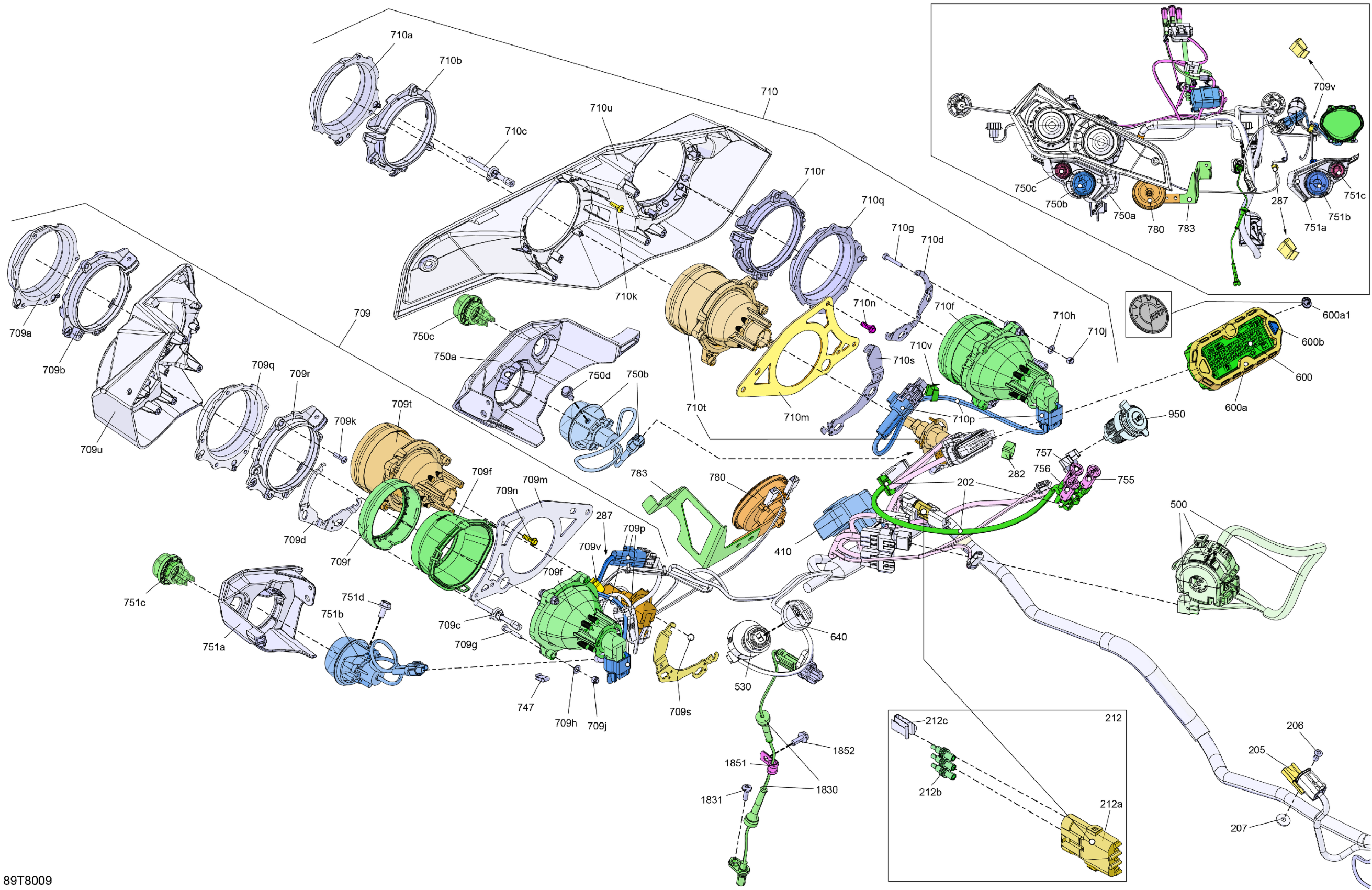

Can-Am RENEGADE - 4X4 - XXC - 650 EFI - 4UJA - Can-Am Red, 2018 Electric - Front Section Diagram

#

Description
Price

202

Indicator Light Cable

710005840

$16.89

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

282

Clip

414227300

$1.45

287

Clip

414227300

$1.45

410

Flasher Unit

710003239

$78.43

500

Multi-Function Handle

710005552

$161.51

530

Ignition Switch

710008400

$78.43

600

Speedometer | Includes 600 to 600b

710005553

$323.05

600a

Trim Ring Ass'y

710001183

$18.43

600a1

BRP Logo 13 MM

516010651

$9.66

600b

Button

715900265

$12.68

630

Grey, Electronic Key

710002183

$55.35

640

Black, Electronic Key

710000817

$55.35

709

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

709

Low Beam Ass'y 60MM | Includes 709 to 709v

710006176

$143.05

709a

LH Low Front Housing

710001083

$16.89

709a1

Halogen Bulb

415129249

$39.97

709b

LH Low Rear Housing

710001084

$10.98

709c

Setting Screw

710001147

$12.91

709d

LH Low Light Support

710006353

$27.66

709f

Low Beam Ass'y 60MM | Includes 709 to 709v

710006176

$143.05

709g

Hex. Screw M4 X 25

207142544

$1.63

709h

Flat Washer M5

234051410

$0.44

709j

Elastic Stop Nut M4

232541414

$0.48

709k

Phillips Screw K40 X 16

250000723

$0.81

709m

Painted Headlamp Support

705004309

$15.35

709n

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

709p

Light Harness

710005944

$32.28

709q

LH High Front Housing

710001087

$16.89

709r

LH High Rear Housing

710001088

$10.98

709s

LH High Light Support

710005853

$5.52

709t

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

709u

LH Front Facia

705004508

$47.66

709v

Clip

414227300

$1.45

710

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710

Low Beam Ass'y 60MM | Includes 709 to 709v

710006176

$143.05

710a

RH Low Front Housing

710001081

$16.89

710a1

Halogen Bulb

415129249

$39.97

710b

RH Low Rear Housing

710001082

$10.98

710c

Setting Screw

710001147

$12.91

710d

RH Low Light Support

710006354

$16.89

710f

Low Beam Ass'y 60MM | Includes 709 to 709v

710006176

$143.05

710g

Hex. Screw M4 X 25

207142544

$1.63

710h

Flat Washer M5

234051410

$0.44

710j

Elastic Stop Nut M4

232541414

$0.48

710k

Phillips Screw K40 X 16

250000723

$0.81

710m

Painted Headlamp Support

705004309

$15.35

710n

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

710p

Light Harness

710005944

$32.28

710q

RH High Front Housing

710001085

$16.89

710r

RH High Rear Housing

710001086

$10.98

710s

RH High Light Support

710005856

$5.52

710t

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710u

RH Front Facia

705004509

$47.66

710v

Clip

414227300

$1.45

747

Clip

414479100

$1.86

748

Hex. Flange Elastic Nut M8

233281414

$1.14

749

Hex. Flange Screw M8 X 20

207682044

$0.92

750a

RH Flasher Support

710005900

$6.92

750b

Flasher | Europe

710002964

$35.14

750c

Day Light | Europe

710001726

$36.89

750d

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

751a

LH Flasher Support

710005899

$6.92

751b

Flasher | Europe

710002964

$35.14

751c

Day Light | Europe

710001726

$36.89

751d

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

757

Pilot Lamp | Model-Europe

710003909

$23.05

780

Horn

710004791

$37.66

783

Horn Support

710006112

$6.75

950

DC Outlet

710001248

$31.17

1830

Speed Sensor

710005610

$78.43

1831

Torx Screw K50 X 16

250000720

$1.39

1851

Clamp

293650256

$4.36

1852

Hex. Flange Screw M6 X 16

210261640

$1.74
