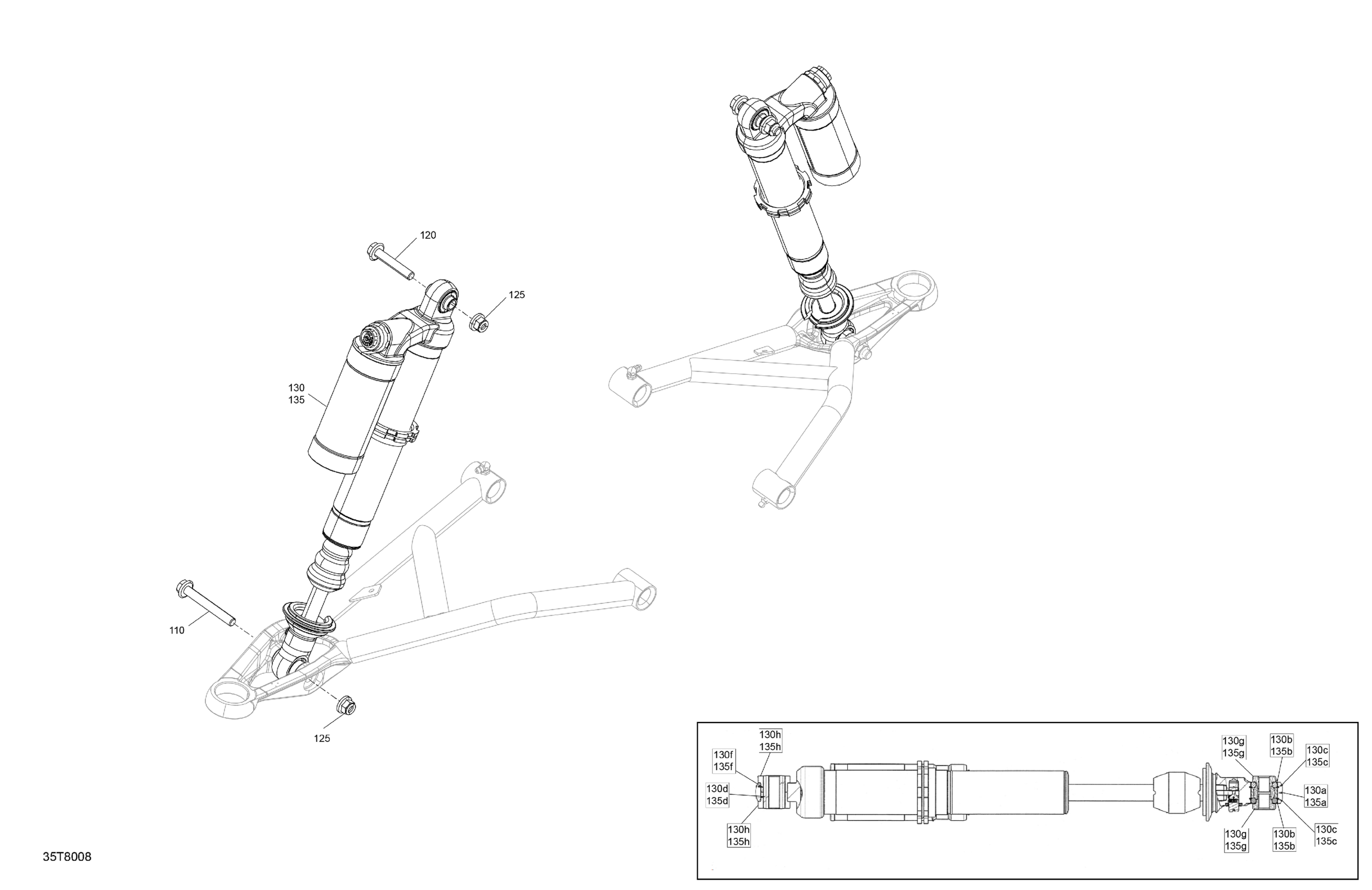

Can-Am RENEGADE - 4X4 - XXC - 650 EFI - 4UJA - Can-Am Red, 2018 Suspension - Front Shocks Diagram

Description

Price

110

Hex. Flange Screw M10 X 75

250001038

$5.54

120

Hex. Flange Screw M10 X 55

207605546

$1.74

125

Hex. Flange Elastic Nut M10

233201436

$1.74

130

Shock Absorber | Package-XXC

706202117

$709.99

130a

Spherical Bearing

715900251

$76.12

130b

O-Ring Bushing

715900209

$13.52

130c

Retaining Ring

715900252

$10.98

130d

Bushing Sleeve | XTP

706201586

$27.66

130f

Bushing Sleeve | XTP

706201585

$27.66

130g

Interior Bushing | XTP

715900210

$14.75

130h

Bushing | XTP

706201648

$13.83

135

Shock Absorber | Package-XXC

706202117

$709.99

135a

Spherical Bearing

715900251

$76.12

135b

O-Ring Bushing

715900209

$13.52

135c

Retaining Ring

715900252

$10.98

135d

Bushing Sleeve | XTP

706201586

$27.66

135f

Bushing Sleeve | XTP

706201585

$27.66

135g

Interior Bushing | XTP

715900210

$14.75

135h

Bushing | XTP

706201648

$13.83
