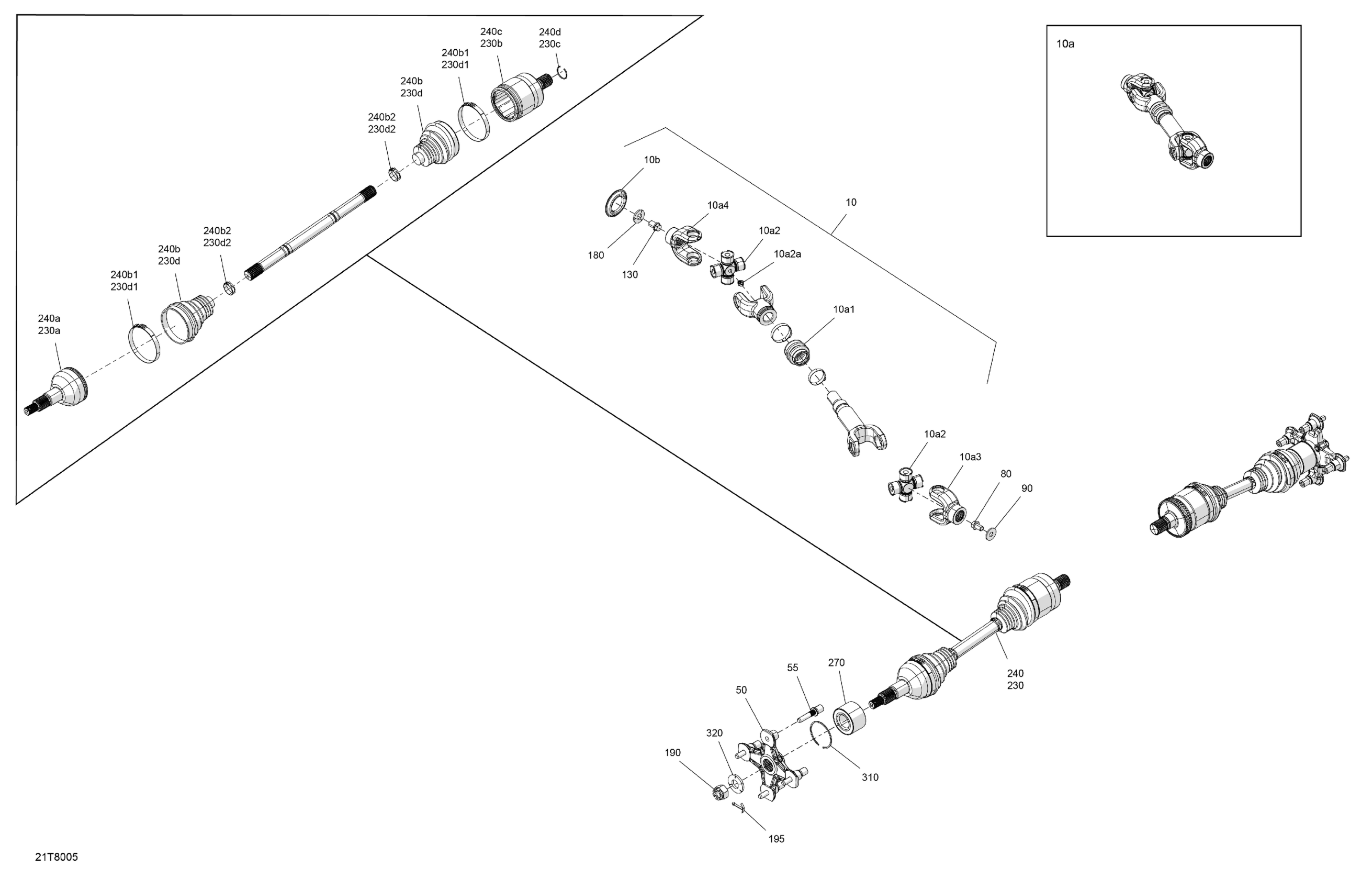

Can-Am RENEGADE - 4X4 - XXC - 650 EFI - 4UJA - Can-Am Red, 2018 Drive - Rear - Common Parts Diagram

Description

Price

Shaft Ass'y Kit

703500988

$301.46

10a

Not Available As Spare Parts

XXX

Unavailable

10a1

Rubber Boot

715900118

$13.28

10a2

Universal Joint Ass'y | T3

703500846

$55.19

10a2a

Grease Fitting | T3

715900295

$4.09

10a3

Yoke

715900499

$23.10

10a4

Yoke

715900438

$23.10

10b

Protector

705501123

$5.90

Wheel Hub Ass'y

705501716

$123.10

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Homocinetic Joint | Includes 230 to 230d2

705502577

$226.84

230a

CV Joint

705501776

Unavailable

230b

Plunging Joint

715900604

$102.21

230c

Circlip

705501781

$5.10

230d

Boot Kit

705501864

$39.52

230d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$226.84

240a

CV Joint

705501776

Unavailable

240b

Boot Kit

705501864

$39.52

240b1

Oetiker Clamp, 82.1 mm

715900241

$7.84

240b2

Oetiker Clamp, 27.3 mm

715900242

$7.84

240c

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240d

Circlip

705501781

$5.10

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$5.28
