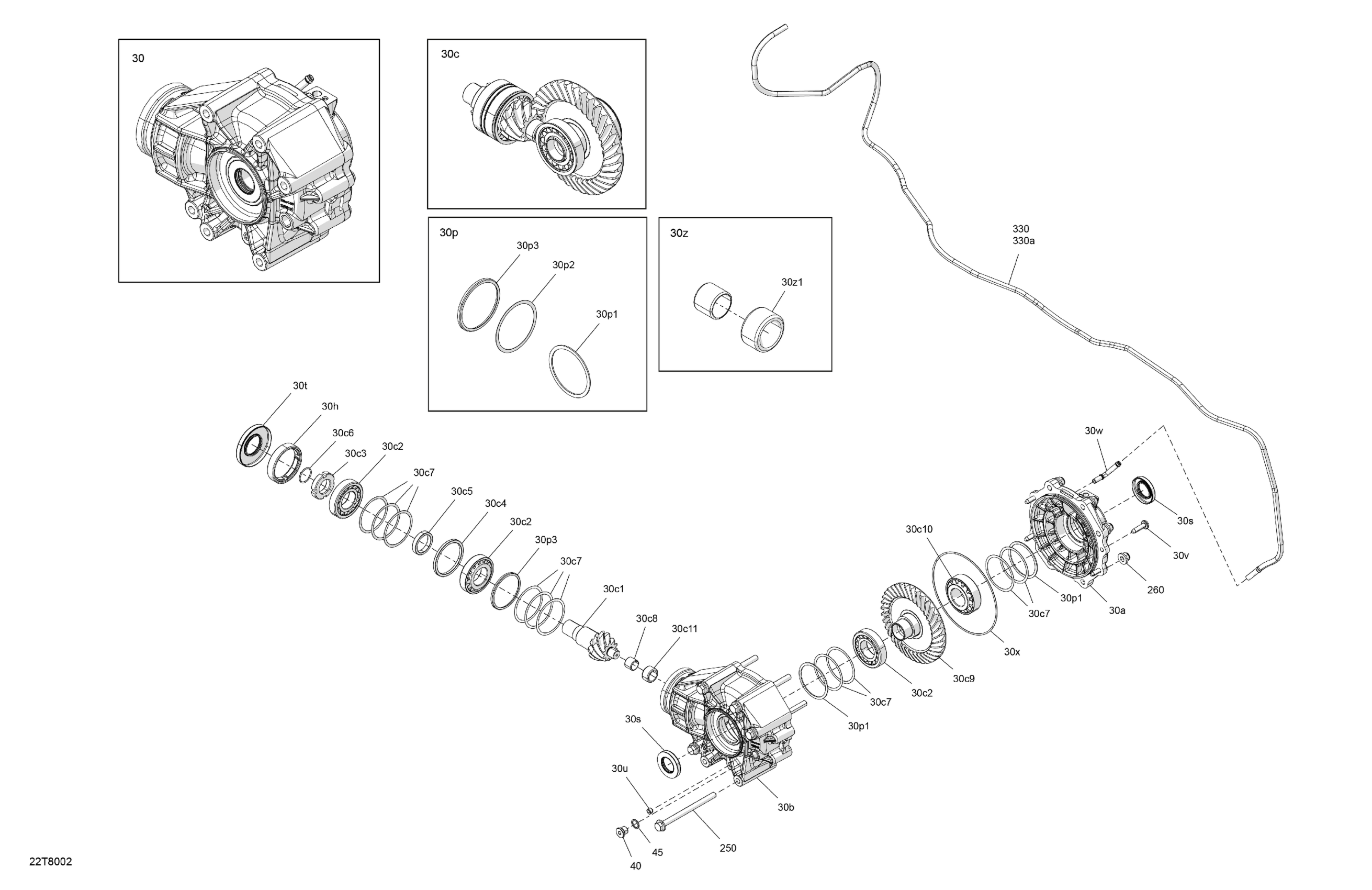

Can-Am OUTLANDER MAX - 4X4 - XMR - 1000R - 5KJA - Can-Am Red, 2018 Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit

705502546

$1,107.66

30a

Rear Cover

705502547

$156.89

30b

Rear Pinion Cover

705502180

$281.51

30c

Differential Gear Kit

703500870

$323.05

30c1

Gear 10 Tooth

705502091

Unavailable

30c2

Roller Bearing

705502174

Unavailable

30c3

Nut

705501550

$20.89

30c4

Differential Shim

705501552

Unavailable

30c5

Differential Shim

705501553

Unavailable

30c6

O-Ring

705501554

$4.62

30c7

Differential Shim

705501725

Unavailable

30c8

Inner Ring

705502181

Unavailable

30c9

Pinion 36 TH.

705502092

Unavailable

30c10

Roller Bearing

705502173

Unavailable

30c11

Needle Bearing

705501760

Unavailable

30h

Nut

705501549

$31.34

30p

Differential Shim Kit

703500835

$44.17

30p1

Differential Shim

705501555

Unavailable

30p2

Differential Shim

705501725

Unavailable

30p3

Differential Shim

705501586

Unavailable

30s

Oil Seal

705501556

$17.09

30t

Oil Seal

705501557

$18.43

30u

Plug Drain

705501724

$5.98

30v

Screw

705502063

$3.08

30w

Breather Tube

705501584

$13.86

30x

O-Ring

705501711

$9.29

30z

Needle Bearing Ass'y

703500836

$53.82

30z1

Needle Bearing

705501760

Unavailable

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

330a

Not Available As Spare Parts

XXX

Unavailable
