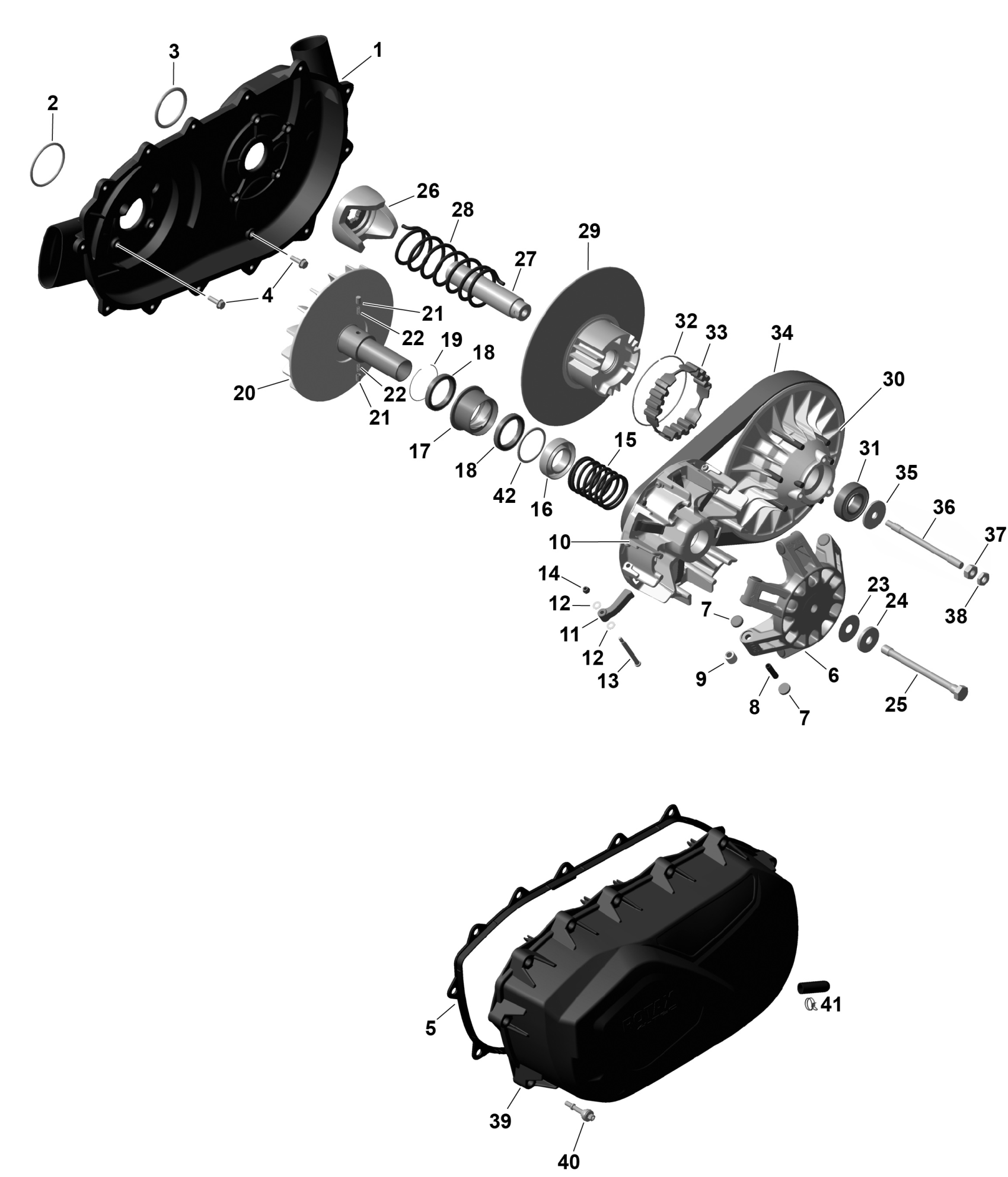

Can-Am RENEGADE - 4X4 - XXC - 1000 EFI - 5MTA - Catalyst Gray - 2026 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Gasket

420430126

$41.49

6

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10

Outer Haft

420280467

$329.99

11

Lever Set | Includes 13 to 16

420248605

$132.49

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Compression Spring, Drive Pulley

420238615

$36.99

16

Seat Spring

420627578

$35.99

17

Drive Pulley Clutch

420257195

$114.99

18

Ball Bearing

420632377

$49.99

19

Retaining Ring

420245951

$5.31

20

Inner Half

420280374

$339.99

21

Spring Sleeve

420229577

$18.49

22

Spring

420239134

$3.06

23

Thrust Washer

420627920

$7.51

24

Spring Washer

420627768

$21.99

25

Hex. Screw M12 X 140

420641859

$24.99

26

Cam

420280701

$153.49

27

Driven Pulley Shaft

420220914

$129.99

28

Compression Spring

420638040

$61.99

29

Inner Half Ass'y

420280786

$308.49

30

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

31

Ball Bearing

420932421

$28.49

32

Retaining Ring

420245911

$5.31

33

Torque Gear

420660124

$23.49

34

V-Belt

422280366

$179.99

35

Thrust Washer

420627594

$13.49

36

Stud Screw M10 X 136

420441900

$25.99

37

Hexagonal Nut M10

420242098

$2.51

38

Hexagonal Nut M10

420242403

$1.90

39

Variator Cover

420611397

$219.99

40

Hex Screw M6 X 30

420440568

$8.58

41

Drain Plug Kit

707001179

$9.63

42

Friction Washer

420460430

$13.99
