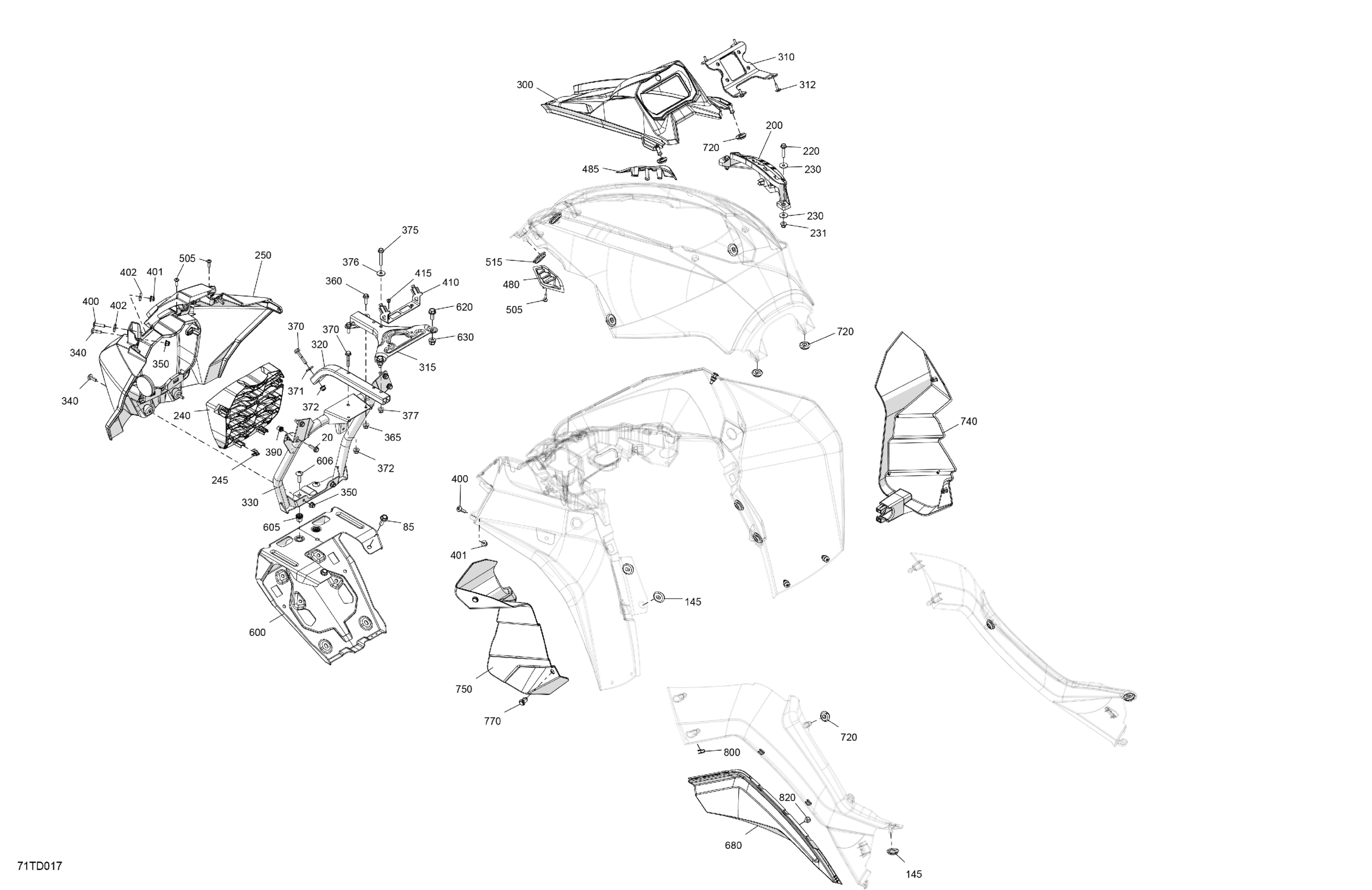

Can-Am Renegade 1000R EFI - 5MRA - X XC Package - Catalyst Gray, 2024 Body - Front Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

145

Oval Washer

705000321

$4.64

200

Lever Indicator

705003838

$25.34

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

231

Flange Elastic Nut M6

233261434

$3.61

240

Air Inlet Grille

705016533

$23.85

245

Clip

517306478

$1.03

250

Front Fascia

705016535

$41.01

300

Gauge Support

705015167

$41.01

310

Int Gauge Support

705015168

$5.42

312

Screw M4 X 16

250000725

$2.87

315

Bracket

705003599

$21.61

320

Upper Sectional Bent Tube

705016534

$98.48

330

Front Fascia Support

705017182

$128.33

340

Torx Screw M6 X 20

250000712

$1.74

350

Flange Elastic Nut M6

233261434

$3.61

360

Hex. Flange Screw M6 X 20

207662054

$0.83

365

Flange Elastic Nut M6

233261434

$3.61

370

Hex. Flange Screw M6 X 35

207663544

$0.74

371

Flat Washer

224061201

$1.11

372

Flange Elastic Nut M6

233261434

$3.61

375

Hex. Flange Screw M6 X 40

207664044

$2.12

376

Flat Washer

224061201

$1.11

377

Flange Elastic Nut M6

233261434

$3.61

390

Insert

293450275

$9.89

400

Torx Screw M6 X 25

250000758

$1.74

401

Flange Elastic Nut M6

233261434

$3.61

402

Flat Washer

224061201

$1.11

410

Fuse Support

705211722

Unavailable

415

Pop Rivet 3/16"

390402400

$0.25

480

LH Grille

705008137

$18.63

485

RH Grille

705008138

$18.63

505

Torx Screw K50 X 16

250000720

$1.39

515

Oblong Grommet

705003668

$4.54

600

Front Skid Plate

705017338

$292.51

605

Insert Half Hex Body M8 x 1.25

293450307

$1.97

606

Torx Truss M8 X 25

250000874

$1.74

620

Hex. Flange Screw M8 X 20

207682044

$0.92

630

Hex. Flange Elastic Nut M8

233281434

$1.74

680

Panel Extension

705004988

$13.84

720

Grommet

705003264

$3.43

740

RH Front Wheel Arch Protector

705017922

$23.85

750

LH Front Wheel Arch Protector

705017926

$23.85

770

Tuflok Plastic Rivet

293150230

$1.21

800

Clip

414479100

$1.81

820

Rubber Bumper

293830005

$5.33
