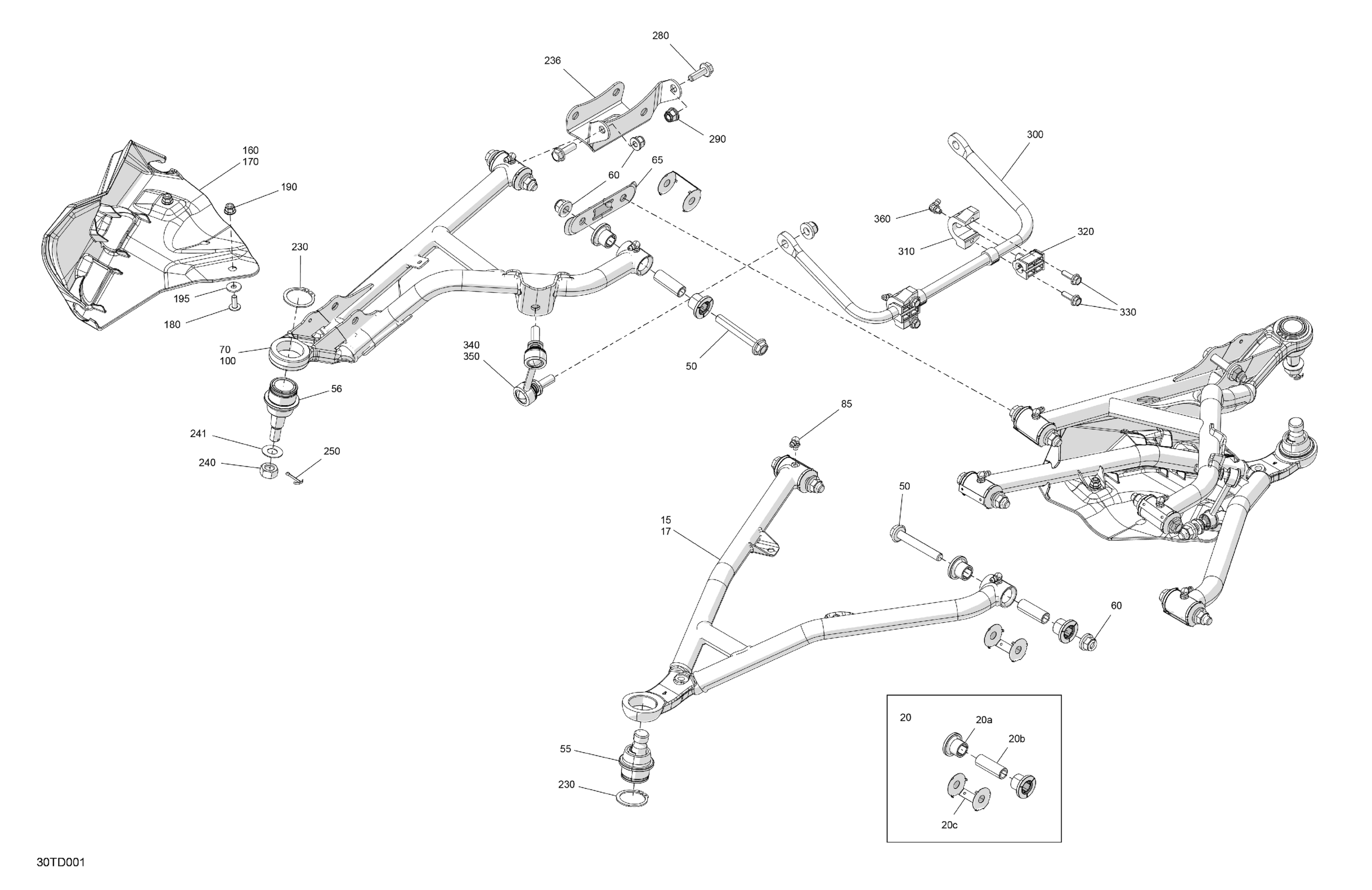

Can-Am Outlander 850 EFI 4X4 - 2ARA - DPS Package - Granite Grey, 2024 Suspension - Front Components Diagram

Description

Price

LH Lower Suspension Arm

706204637

$156.89

RH Lower Suspension Arm

706204638

$156.89

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

20a

Not Available As Spare Parts

XXX

Unavailable

20b

Not Available As Spare Parts

XXX

Unavailable

20c

Not Available As Spare Parts

XXX

Unavailable

Hex. Flange Screw M10 X 70

207607046

$2.91

Ball Joint

706202045

$35.35

Ball Joint

706202044

$35.14

Hex. Flange Elastic Nut M10

233201436

$1.74

Front Suspension Cross Member

706205645

$4.91

RH Upper Suspension Arm

706204572

$156.89

Grease Fitting 90°

293550056

$1.37

100

LH Upper Suspension Arm

706204571

$156.89

160

LH Front Joint Guard

706205519

$15.22

170

RH Front Joint Guard

706205520

$10.14

180

Torx Screw M6 X 16

250000755

$0.72

190

Hex. Flange Elastic Nut M6

233261494

$1.26

195

Stainless Steel Flat Washer

234062670

$1.74

230

Circlip

293370035

$2.55

236

Upper Front Holder

705203247

$14.37

240

Hex Nut M12

250100239

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

280

Hex. Flange Screw M8 X 25

207682544

$0.90

290

Hex. Flange Elastic Nut M8

233281414

$1.14

300

Sway Bar

706203715

$124.58

310

Clamp

706203929

$27.66

320

Stabilizer Bar Bushing

706204796

$9.22

330

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

340

LH Sway Bar Link

706203290

$67.66

350

RH Sway Bar Link

706203291

$67.66

360

Grease Fitting 90°

293550056

$1.37
