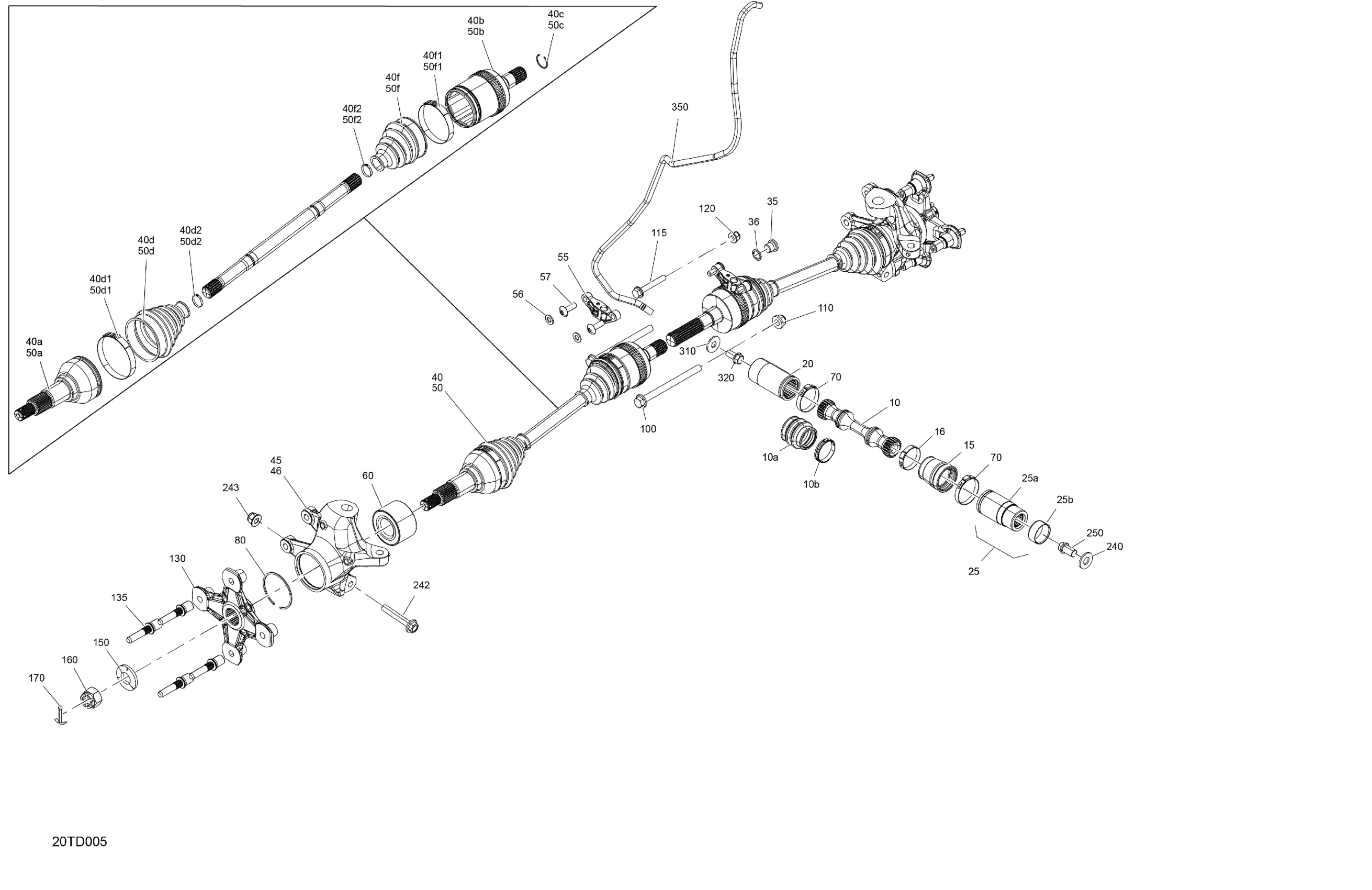

Can-Am Renegade 1000R EFI - 5MRA - X XC Package - Catalyst Gray, 2024 Drive - Front - Common Parts Diagram

#

Description
Price

10

Propeller Shaft | Includes 1 to 2

705400913

$211.99

10a

Rubber Boot

715900118

$14.30

10b

Oetiker Gear Clamp 36.1MM

509000045

$8.29

15

Rubber Boot

705401093

$5.00

16

Oetiker Gear Clamp

293650199

$9.69

20

Coupling Sleeve

705401969

$28.49

25

Front Bushing Shaft Kit | 4X4

703500678

$114.99

25a

Not Available As Spare Parts

XXX

Unavailable

25b

Wear Ring | 4X4

705400036

$26.49

35

Fill Level Plug | 4X4

705500504

$10.01

36

Copper Washer | 4X4

705500506

$0.45

40

RH CV Joint | Includes 40 to 40j

705402242

$243.99

40a

CV Joint

705401344

$259.49

40b

RH Plunging Joint

715900602

$110.99

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40d1

Oetiker Clamp

715900282

$5.29

40d2

Oetiker Clamp, Small

715900283

$5.29

40f

Boot Kit, Differential Side

705401346

$42.49

40f1

Oetiker Clamp, Large

715900284

$5.29

40f2

Oetiker Clamp, Small

715900261

$5.29

45

LH Knuckle

705403307

$179.99

46

RH Knuckle

705403308

$179.99

50

LH CV Joint | Includes 50 to 50j

705402241

$243.99

50a

CV Joint

705401344

$259.49

50b

LH Plunging Joint

715900603

$98.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401345

$42.49

50d1

Oetiker Clamp

715900282

$5.29

50d2

Oetiker Clamp, Small

715900283

$5.29

50f

Boot Kit, Differential Side

705401346

$42.49

50f1

Oetiker Clamp, Large

715900284

$5.29

50f2

Oetiker Clamp, Small

715900261

$5.29

55

Sensor Support

705402088

$2.54

56

Flat Washer 8 mm

234081410

$0.83

57

Torx Truss M8 X 25

250000874

$2.11

60

Ball Bearing

293350150

$52.99

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 125

230602546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Hex. Flange Screw M8 X 55

207685544

$5.39

120

Hex. Flange Elastic Nut M8

233281414

$1.47

130

Wheel Hub

705503257

$101.49

135

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M18

250200171

$7.65

160

Hex. Flange Castellated Nut M18

232291413

$7.98

170

Cotter Pin

250400071

$2.11

240

Flat Washer M12

250200102

$2.11

250

Hex Flange Screw M12 X 20

250001042

$1.90

310

Conical Spring Washer M12

250200167

$3.70

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

242

Hex. Flange Screw M10 X 60

207606044

$3.38

243

Hex. Flange Elastic Nut M10

233201434

$2.09
