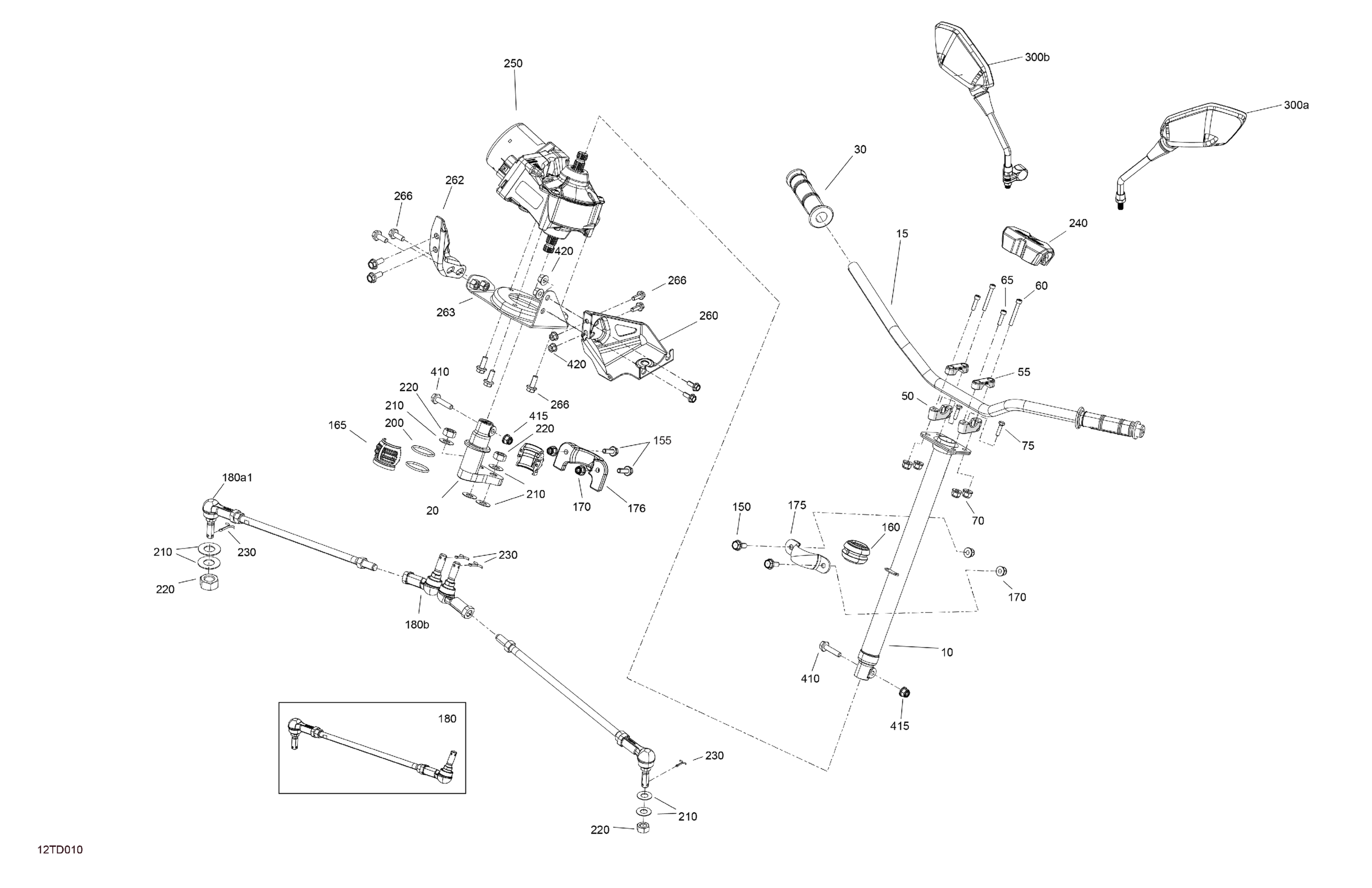

Can-Am Renegade 1000R EFI - 5MRA - X XC Package - Catalyst Gray, 2024 Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$61.16

Anodized Handlebar | Package XTP, XXC

709402292

$58.93

Pitman Arm | Model With DPS Except XMR

703501160

$39.52

Handle Grip

709400493

$13.82

Lower Mounting Clamp

709402750

$23.10

Upper Mounting Clamp

709402749

$23.10

Socket Head Screw M8 X 60

205086060

$3.38

Socket Head Screw M8 X 30, Scotch Grip

205583060

$2.89

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Screw M8 X 30

207183060

$1.30

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 25

207682544

$0.90

Spherical Bushing

709402169

$5.96

Spherical Half Bushing

709400783

$5.96

Hex. Elastic Flange Nut M8

233281416

$1.25

Upper Column Attachment

709400827

$0.97

Column Attachment

709401428

$35.04

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$102.21

LH Ball Joint

709402303

$34.30

RH Ball Joint

709402302

$34.30

O-Ring

293300068

$5.29

Hardened Washer

706200281

$2.34

Hex Nut M12

250100239

$1.64

Cotter Pin

211400013

$0.31

Handlebar Trim

709402687

$79.82

Power Steering Ass'y | Model With DPS

709403187

$1,131.31

Power Steering Module Bracket

709402192

$22.36

RH Power Steering Support

709402978

$25.34

Power Steering Support

709402969

$16.39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

LH Rearview Mirror

708200963

$33.55

RH Rearview Mirror

708201092

$44.75

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Nut

233081436

$1.63
