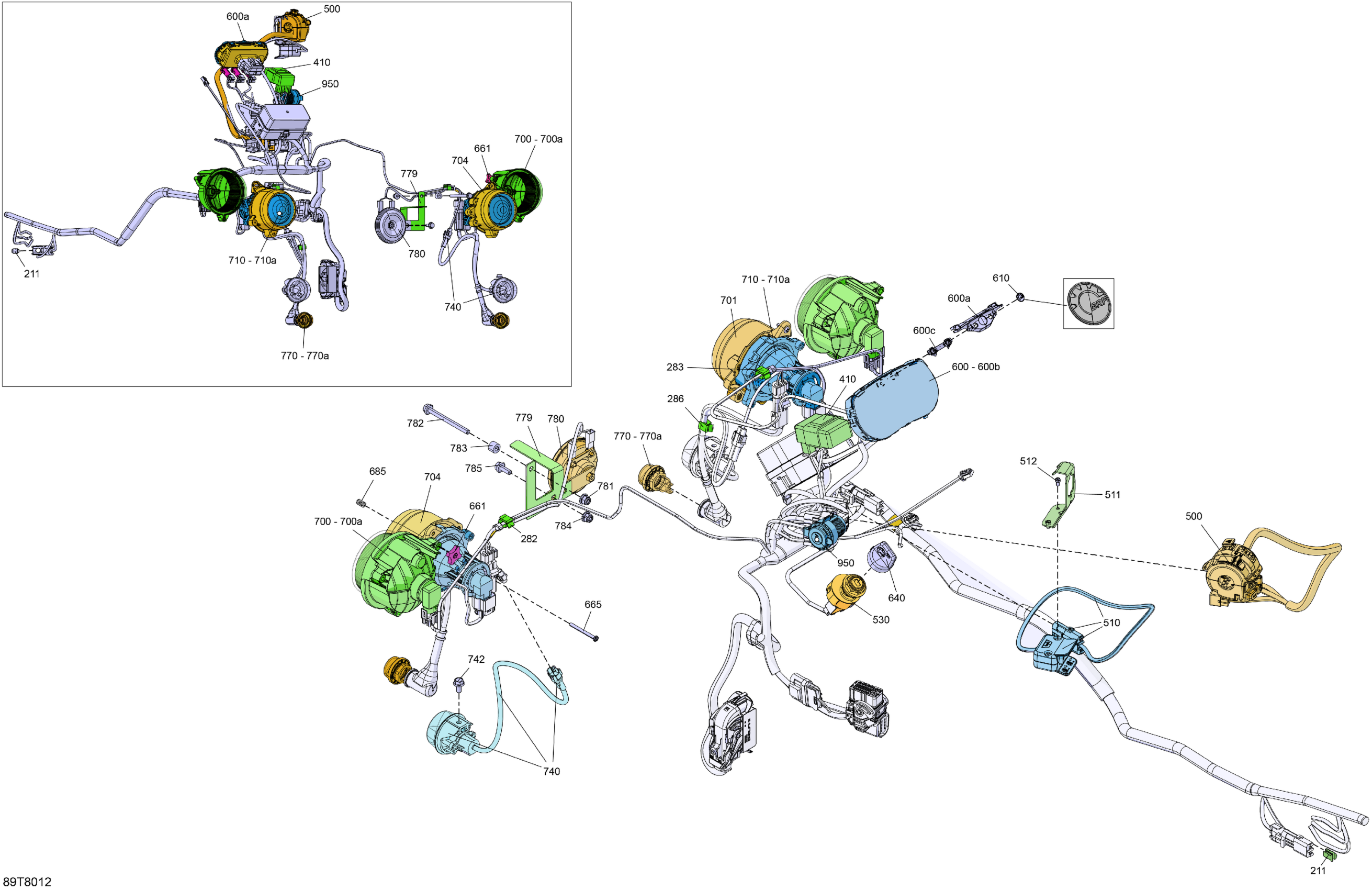

Can-Am OUTLANDER PRO - 4X4 - XTP - 1000R - 3WJA - Timeless Black Metallic, 2018 Electric - Front Section Diagram

Description

Price

211

Clip

710000992

$4.00

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

286

Clip

414227300

$1.45

410

Flasher Unit

710003239

$78.43

500

Multi-Function Handle

710004040

$166.12

510

Winch Switch

710005241

$161.51

511

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.14

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

530

Switch_Ignition | Model-Europe

710007865

$69.20

600

Speedometer | Includes 600 to 600c

710005632

$415.35

600a

Cap Support | XTP

705004366

$12.31

600b

Lens | XTP

415129349

$23.05

600c

Speedometer Button | XTP

415129355

$13.94

610

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

640

Grey, Electronic Key

710002183

$55.35

661

Handle

572106600

$9.31

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.91

700

Low Beam | Includes 54 to 55

710006177

$115.35

700a

Bulb 12V 55W

715900141

$41.51

701

RH High Front Housing

710002291

$27.66

704

LH High Front Housing

710002292

$23.05

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710a

Halogen Bulb

415129249

$39.97

740

Flasher | Europe

710002964

$35.14

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

770

Day Light | Europe

710001726

$36.89

770a

Cap Protector | Model-Europe

710003269

$10.98

779

Horn Support

710006113

$11.15

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

783

Bushing

708001129

$10.98

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

785

Hex. Flange Screw M6 X 16

207661644

$0.61

950

DC Outlet

710001248

$31.17
