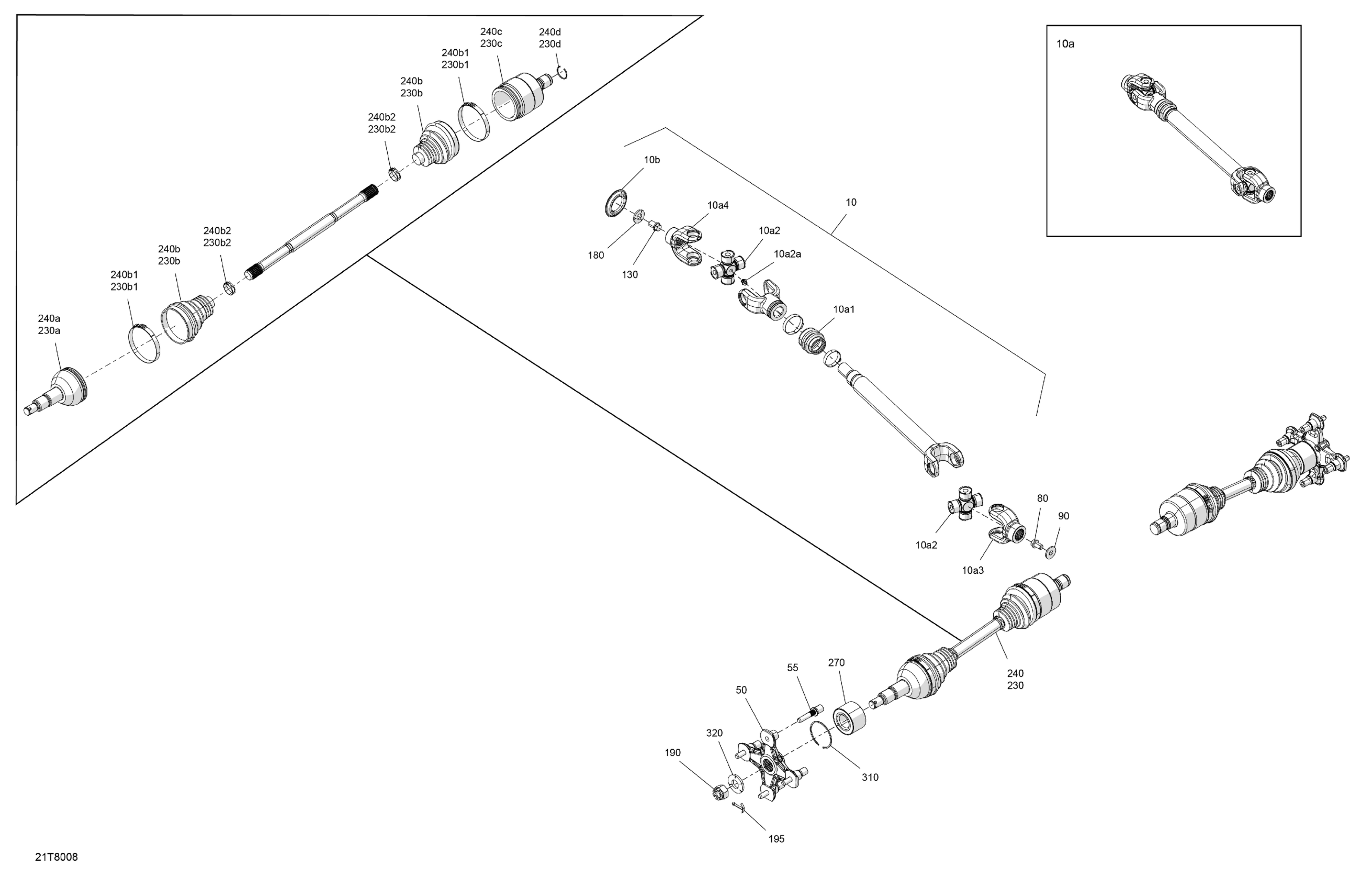

Can-Am OUTLANDER PRO - 4X4 - 650 EFI - 3YJC - Brushed Aluminium, 2018 Drive - Rear - Common Parts Diagram

Shaft Ass'y Kit | Includes 10 to 10b

703501017

$259.49

Not Available As Spare Parts

XXX

Unavailable

Rubber Boot

715900118

$14.30

Universal Joint Ass'y | T3

703500846

$59.49

Grease Fitting | T3

715900295

$5.24

Yoke

715900499

$24.99

Yoke

715900438

$24.99

Protector

705501123

$7.55

Wheel Hub Ass'y

705501716

$105.99

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M12 X 16

250001039

$2.11

Conical Spring Washer M12

250200005

$3.27

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

CV Joint

705501776

$259.49

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Circlip

705501781

$6.50

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

CV Joint

705501776

$259.49

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Circlip

705501781

$6.50

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65
