Description

Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Lock Washer Helical M6

234161601

$1.15

15

Torx Head Screw M6 X 16

250000717

$2.11

16

Flat Washer

224061121

$0.53

17

Domed Nut M6

232361493

$2.11

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561414

$0.55

40

Connector Ass'y

710004375

$32.99

41

Battery Cable Cap

710006729

$7.20

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

280

Clip

414227300

$1.67

281

Clip

414227300

$1.67

292

Clip

414227300

$1.67

293

Clip

414227300

$1.67

295

Clip

414227300

$1.67

296

Clip

414227300

$1.67

370

Mount Dart

293730040

$1.04

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561414

$0.55

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

720

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

720a

Bulb

520000758

$9.10

725a

License Plate Light | Europe

710005563

$126.99

725b

Plate Support | Europe

708300434

$27.99

725c

Hex. Flange Elastic Nut M5

233251414

$1.04

725d

Red Reflector

705011221

$14.49

800

Voltage Regulator

710010540

$195.99

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

810

Rectifier Support

710001752

$9.29

811

Hex. Flange Screw M6 X 20

207662044

$2.00

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

850

Housing

710003006

$8.79

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710008370

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

908

Stainless Steel Flat Washer

234062670

$2.11

920

Retaining Plate

710009129

$8.69

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01

1845

Trailer Plug Ass'y | Includes 13 To 19

860200927

Unavailable

1846

Hex. Flange Screw M6 X 16

207661644

$0.74

1847

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

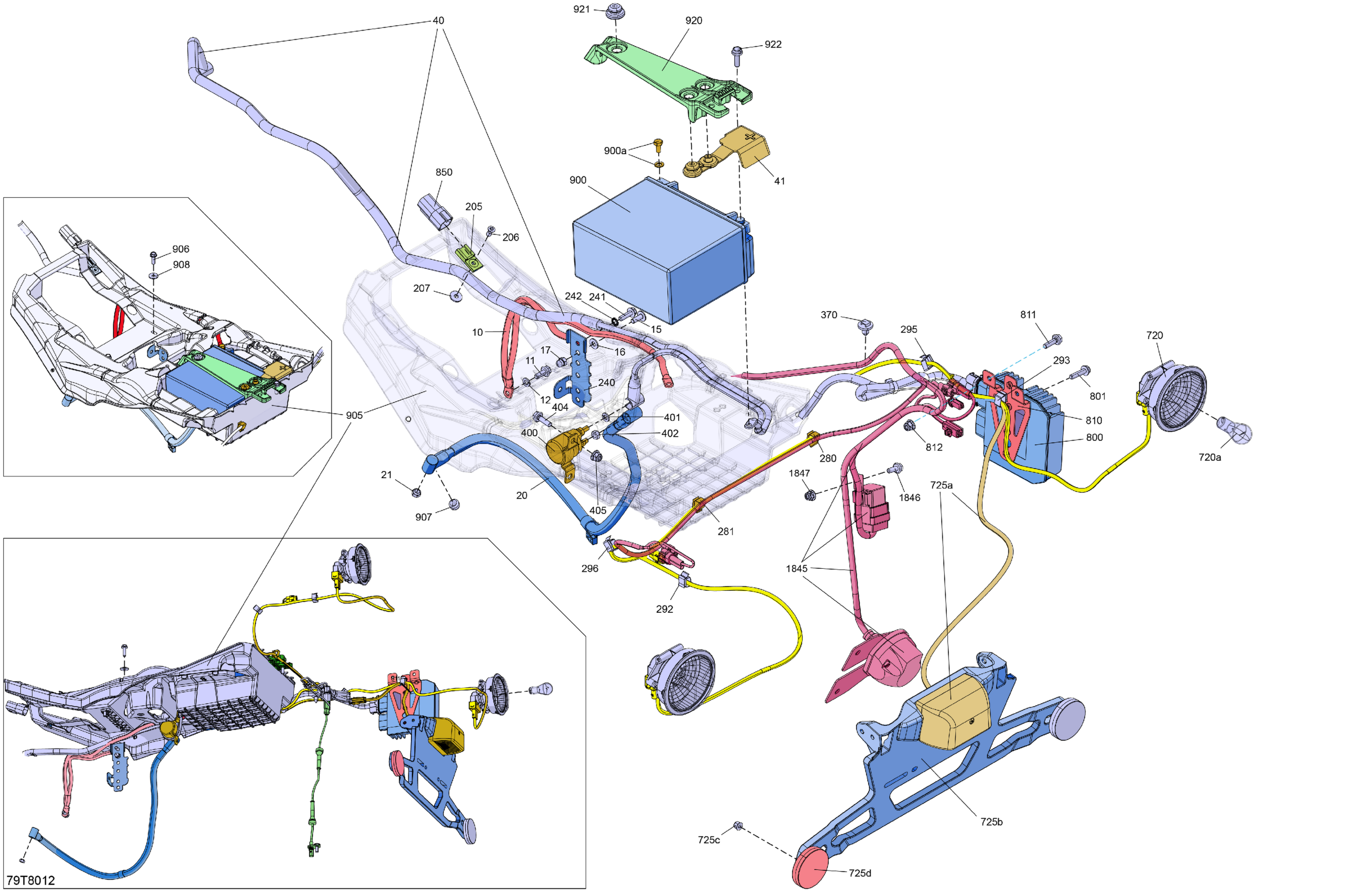

Can-Am OUTLANDER PRO - 4X4 - 650 EFI - 3TJA - Brushed Aluminium, 2018 Electric - Rear Section Diagram

Ground Cable

Hex. Flange Screw M6 X 16, Scotch Grip

Lock Washer Helical M6

Torx Head Screw M6 X 16

Flat Washer

Domed Nut M6

Positive Cable

Elastic Stop Nut M6

Connector Ass'y

Battery Cable Cap

Clip

Pop Rivet 3/16"

Washer | DS 650 X

Connector Bracket

Hex. Flange Screw M6 X 20

External Serrated Lock Washer 6 mm

Clip

Clip

Clip

Clip

Clip

Clip

Mount Dart

Starter Relay

Lock Washer Helical M6

Elastic Stop Nut M6

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Tail Light Ass'y | Includes 32 to 33

Bulb

License Plate Light | Europe

Plate Support | Europe

Hex. Flange Elastic Nut M5

Red Reflector

Voltage Regulator

Hex. Flange Forming Screw M6 X 25

Rectifier Support

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Housing

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

Battery Bolt Kit

Battery Support

Hexagonal Head Screw

Rubber Bumper

Stainless Steel Flat Washer

Retaining Plate

Stopper Rubber

Hex. Flange Screw M6 X 20

Trailer Plug Ass'y | Includes 13 To 19

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0
