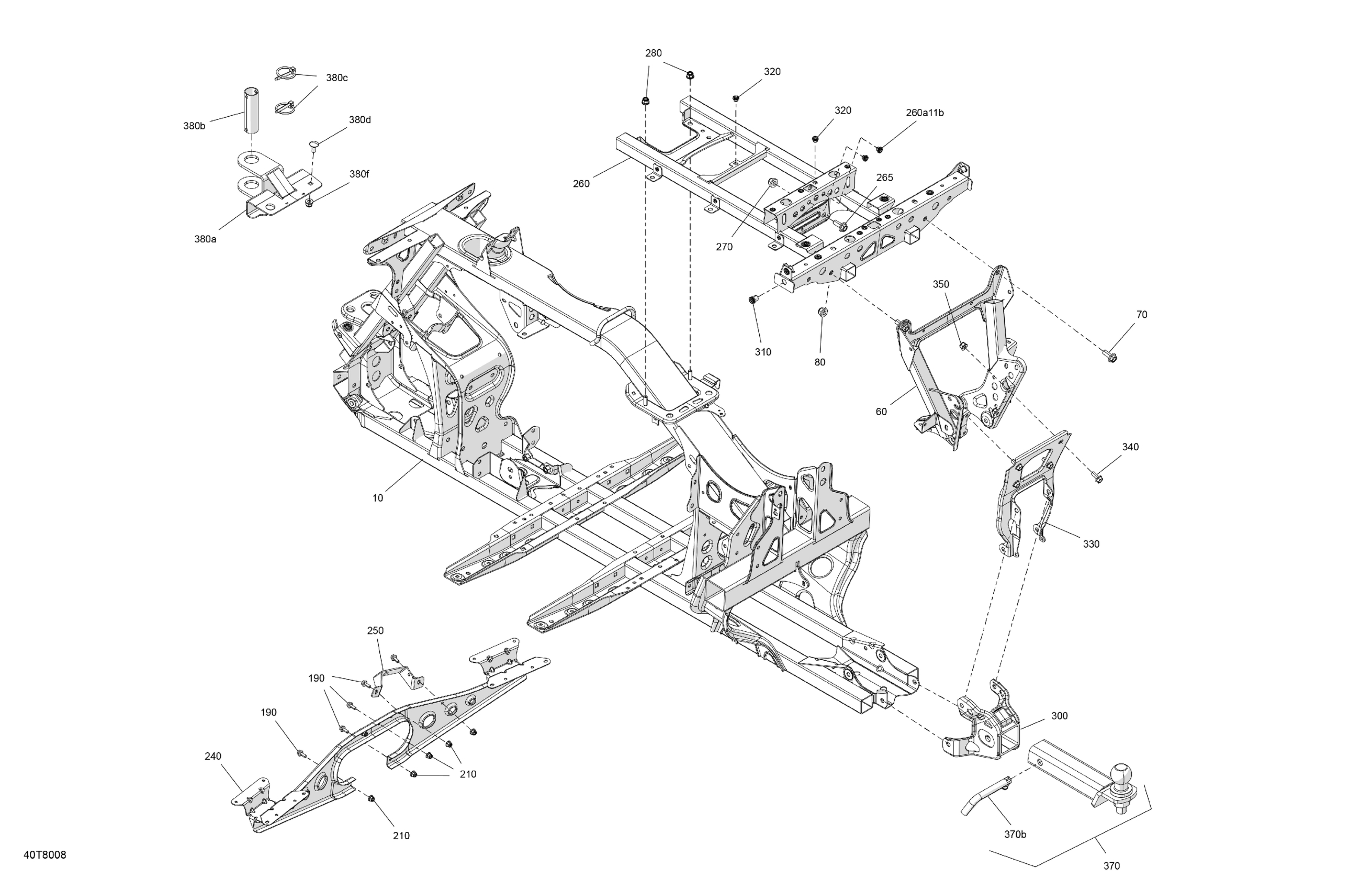

Can-Am OUTLANDER PRO - 4X4 - 650 EFI - 3TJA - Brushed Aluminium, 2018 Frame - System Diagram

Description

Price

Black Frame | Outlander Max

705206363

$1,039.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Elastic Nut M10

233201436

$2.11

190

Hex. Flange Screw M6 X 16

207661644

$0.74

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

240

Footrest Support

705210817

$76.99

250

Master Cylinder Bracket

705203874

$11.49

260

Chassis Extension

705210822

$124.99

260a11b

Insert Half Hex Body M6 x 1.0

250100199

$3.19

265

Hex. Flange Screw M10 X 25

207602546

$2.11

270

Hex. Flange Elastic Nut M10

233201436

$2.11

280

Hex. Flange Elastic Nut M8

233281414

$1.47

300

Trailer Hitch

715005186

$128.49

310

Insert Half Hex Body M8 x 1.25

293450307

$2.69

320

Insert Half Hex Body M6 x 1.0

250100199

$3.19

330

Rear Support

705203301

$43.99

340

Hex. Flange Screw M8 X 20

207682046

$1.90

350

Hex. Elastic Flange Nut M8

233281416

$1.48

370

REAR HITCH KIT - Call your local BRP dealership | Package PRO Europe, T3

705205995

$234.99

370b

Hitch Pin

705204490

$52.99

380a

Front Coupling Device

705204452

Unavailable

380b

605456511

Unavailable

380c

605456518

Unavailable

380d

Carriage Bolt, M8 X 20

207782044

$1.90

380f

Hex. Flange Elastic Nut M8

233281414

$1.47
