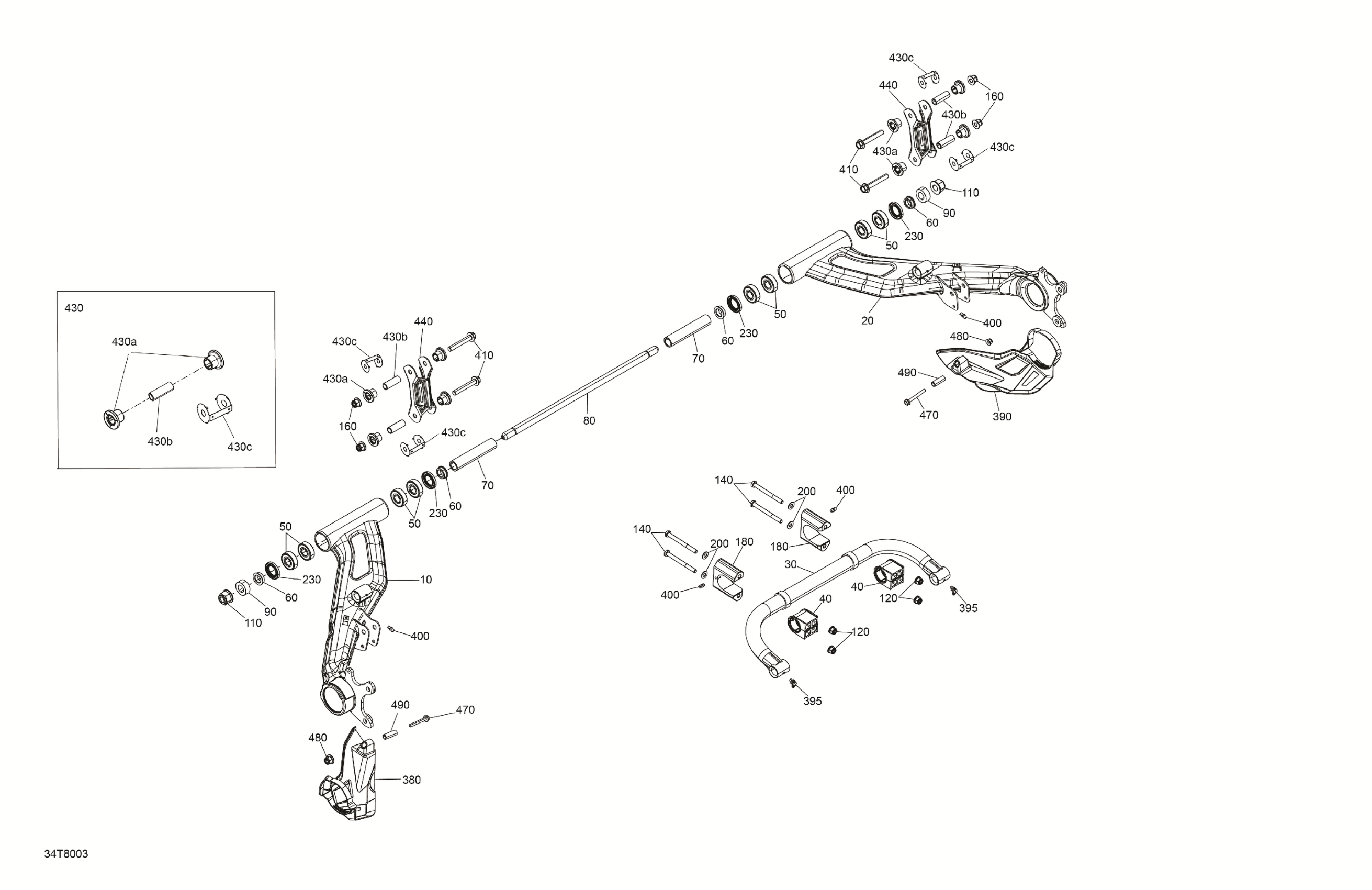

Can-Am OUTLANDER - 4X4 - DPS - 1000R - 5LJA - Orange Crush, 2018 Suspension - Rear Components Diagram

Black LH Swing Arm | Except Package XMR Red/White/Black

706002414

$276.09

Black RH Swing Arm | Except Package XMR Red/White/Black

706002415

$276.09

Swaybar

706000988

$117.13

Stabilizer Bar Bushing

706004640

$7.28

Ball Bearing

293350145

$12.54

Spacer

706001282

$10.37

Spacer

706002259

$26.09

Axial Pivot M16

706001664

$64.90

Flat Washer M17

250200112

$6.34

Hex. Flange Elastic Nut M16

233211466

$1.53

Hex. Flange Elastic Nut M8

233281434

$1.74

Hex. Screw M8 X 85

250001035

$1.46

Hex. Flange Elastic Nut M10

233201436

$1.74

Bushing Holder

706001099

$29.82

Flat Washer M8

234081430

$1.74

Seal

293200144

$4.52

LH Protector

706002482

$13.58

RH Protector

706002483

$13.58

Grease Fitting 90°

293550056

$1.04

Grease Fitting

250000315

$4.82

Hex. Flange Screw M10 X 65

207606536

$3.61

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

Sway Bar Linkage

706001020

$11.72

Hex. Flange Screw M6 X 50

207665044

$3.38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Bushing

707001376

$4.09
