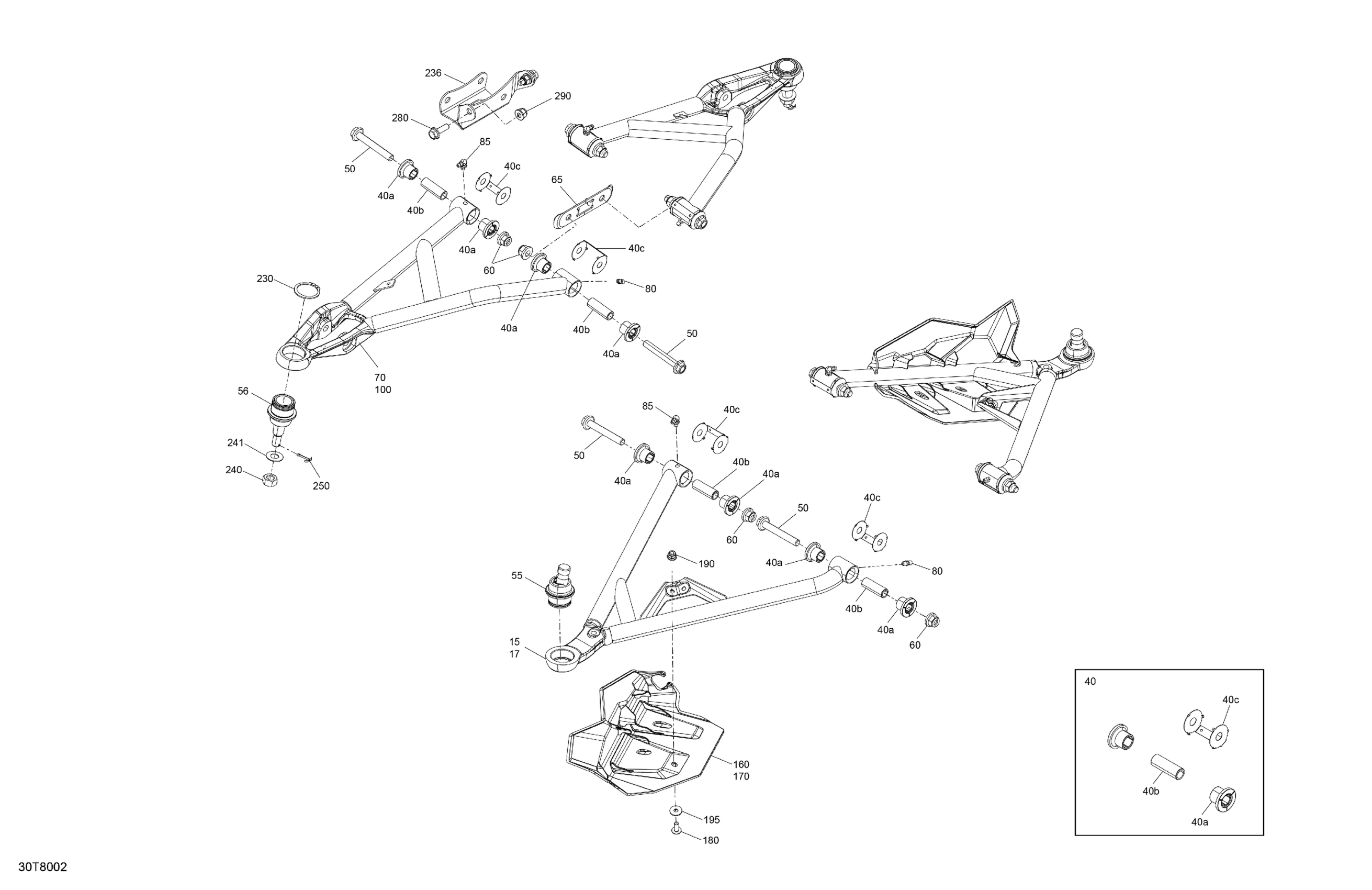

Can-Am OUTLANDER - 4X4 - DPS - 1000R - 5LJA - Orange Crush, 2018 Suspension - Front Components Diagram

Description

Price

LH Lower Suspension Arm

706204639

$147.73

Black, RH Lower Arm

706202870

$147.73

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

40a

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

40b

Spacer

706204623

Unavailable

40c

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

Hex. Flange Screw M10 X 70

207607046

$2.82

Ball Joint

706202045

$34.30

Ball Joint

706202044

$34.30

Hex. Flange Elastic Nut M10

233201436

$1.74

Front Suspension Cross Plate

706200998

$4.76

Black RH Upper Arm

706201797

$147.73

Grease Fitting

408200700

$2.80

Grease Fitting 90°

293550056

$1.04

100

Black LH Upper Arm

706201796

$147.73

160

LH Joint Protector

706202808

$8.42

170

RH Joint Protector

706202809

$8.42

180

Torx Screw M6 X 16

250000755

$0.72

190

Hex. Flange Elastic Nut M6

233261494

$1.26

195

Stainless Steel Flat Washer

234062670

$1.74

230

Circlip

293370035

$2.48

236

Upper Front Holder

705203247

$13.09

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

280

Hex. Flange Screw M8 X 25

207682544

$0.90

290

Hex. Flange Elastic Nut M8

233281414

$1.14
