Partiron

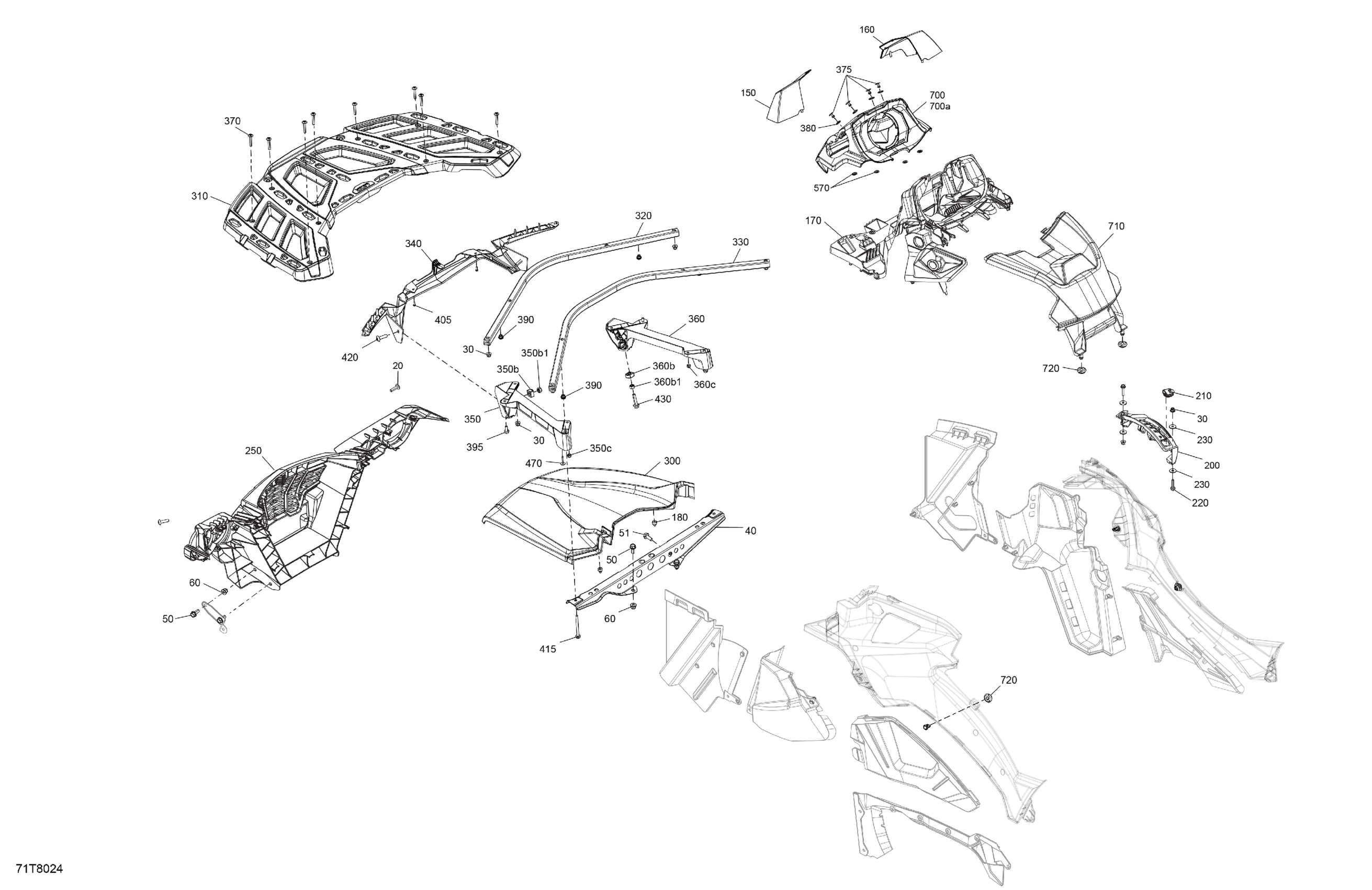

Can-Am OUTLANDER PRO - 4X4 - 650 EFI - 3PJB - Brushed Aluminium, 2018 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$1.01

30

Flange Elastic Nut M6

233261434

$4.44

40

Cargo Rack Center Support

705006812

$61.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

170

Console Support Ass'y | Model-Europe/International

715006101

$63.99

180

Rubber Bumper

293830005

$8.09

200

Indicator | Package PRO T3

715004087

$26.99

210

Shiftgate Trim | Europe

705005003

$10.49

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Fascia

705012822

$119.99

300

Brushed Aluminium Hood Kit | Model-Brushed Aluminium Europe

715002612

$379.99

310

Rack Kit | Europe, Int'l

715002784

$194.99

320

Sectional Bent Tube

705016640

$38.99

330

Sectional Bent Tube

705016641

$42.99

340

Lugage Rack Moulding

705004523

$24.49

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

350b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

350b1

Hex. Elastic Nut M8 Brass

232581200

$2.22

350c

Hex. Elastic Stop Nut M6

232561600

$1.15

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

360b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

360b1

Hex. Elastic Nut M8 Brass

232581200

$2.22

360c

Hex. Elastic Stop Nut M6

232561600

$1.15

370

Black, Torx Screw M6 X 35

250000646

$0.98

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Washer

517124300

$0.19

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

405

Screw K40 X 10

241140060

$1.48

415

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Screw M8 X 35

207683534

$2.11

470

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

570

Push Nut

732610072

$2.19

700

Gauge Support

705007095

$44.99

700a

Gauge Support

705006321

$44.99

710

Dash Kit | Europe, Int'l

715002783

$64.99

720

Grommet

705003264

$4.09
