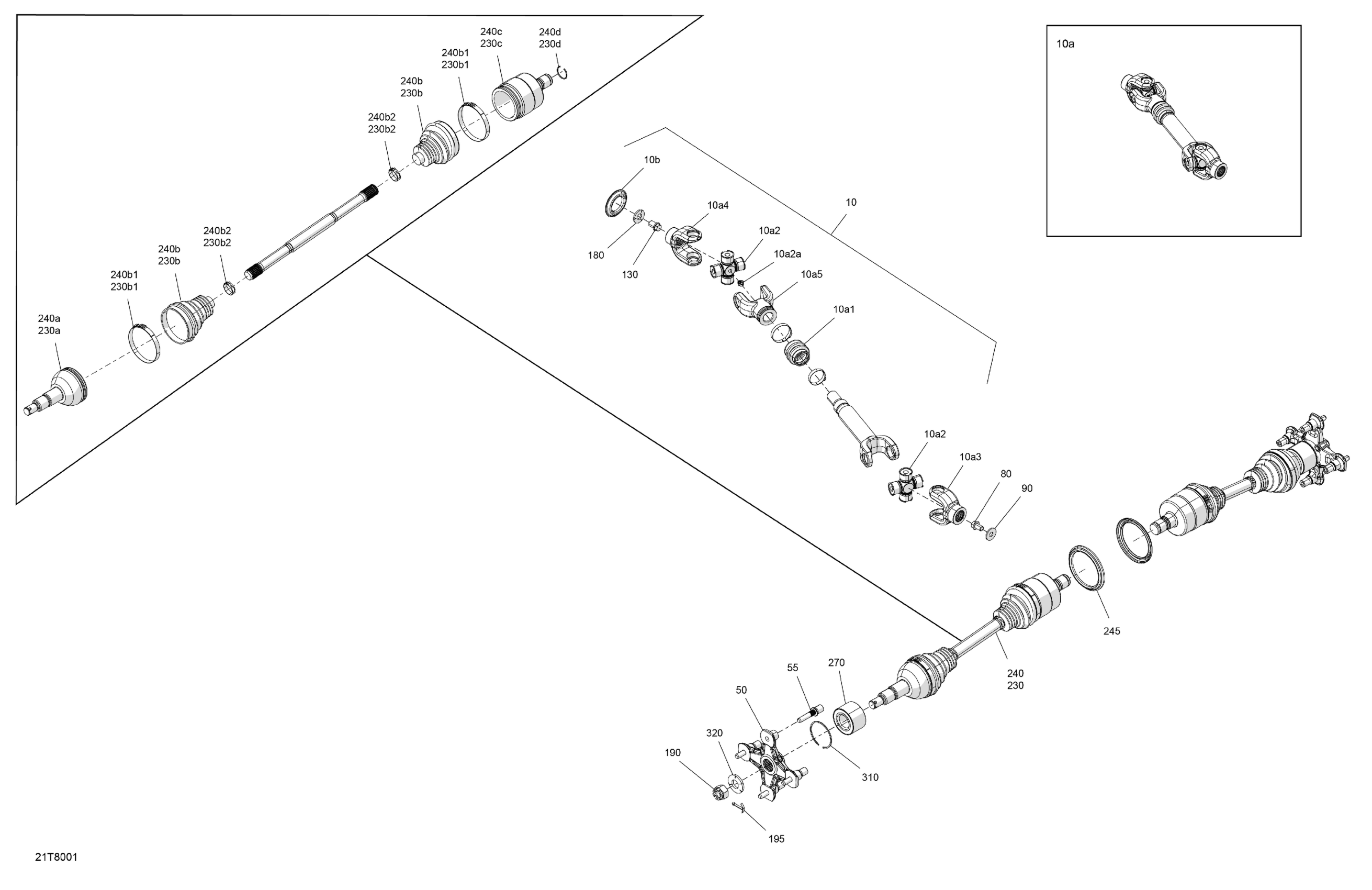

Can-Am OUTLANDER - 4X4 - XXC - 1000R - 1XJA - Sunburst Yellow, 2018 Drive - Rear - Common Parts Diagram

Shaft Ass'y Kit | Incldues 1 to 5

703500991

$301.46

Not Available As Spare Parts

XXX

Unavailable

Rubber Boot

715900118

$13.28

Universal Joint Ass'y | T3

703500846

$55.19

Grease Fitting | T3

715900295

$4.09

Yoke | T3

715900500

$23.10

Joint | T3

715900436

$23.10

Spline Yoke

715900106

$38.03

Protector

705501123

$5.90

Wheel Hub Ass'y

705501716

$123.10

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

Hex Flange Screw M12 X 16

250001039

$1.74

Conical Spring Washer M12

250200005

$2.65

Hex. Flange Castellated Nut M18

232291413

$2.82

Cotter Pin

250400071

$1.74

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$226.84

CV Joint

705501776

Unavailable

Boot Kit

705501864

$39.52

Oetiker Clamp, 82.1 mm

715900241

$7.84

Oetiker Clamp, 27.3 mm

715900242

$7.84

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Circlip

705501781

$5.10

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$226.84

CV Joint

705501776

Unavailable

Boot Kit

705501864

$39.52

Oetiker Clamp, 82.1 mm

715900241

$7.84

Oetiker Clamp, 27.3 mm

715900242

$7.84

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

Circlip

705501781

$5.10

Wear Ring

705501124

$6.73

Ball Bearing

293350150

$50.34

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$5.28
