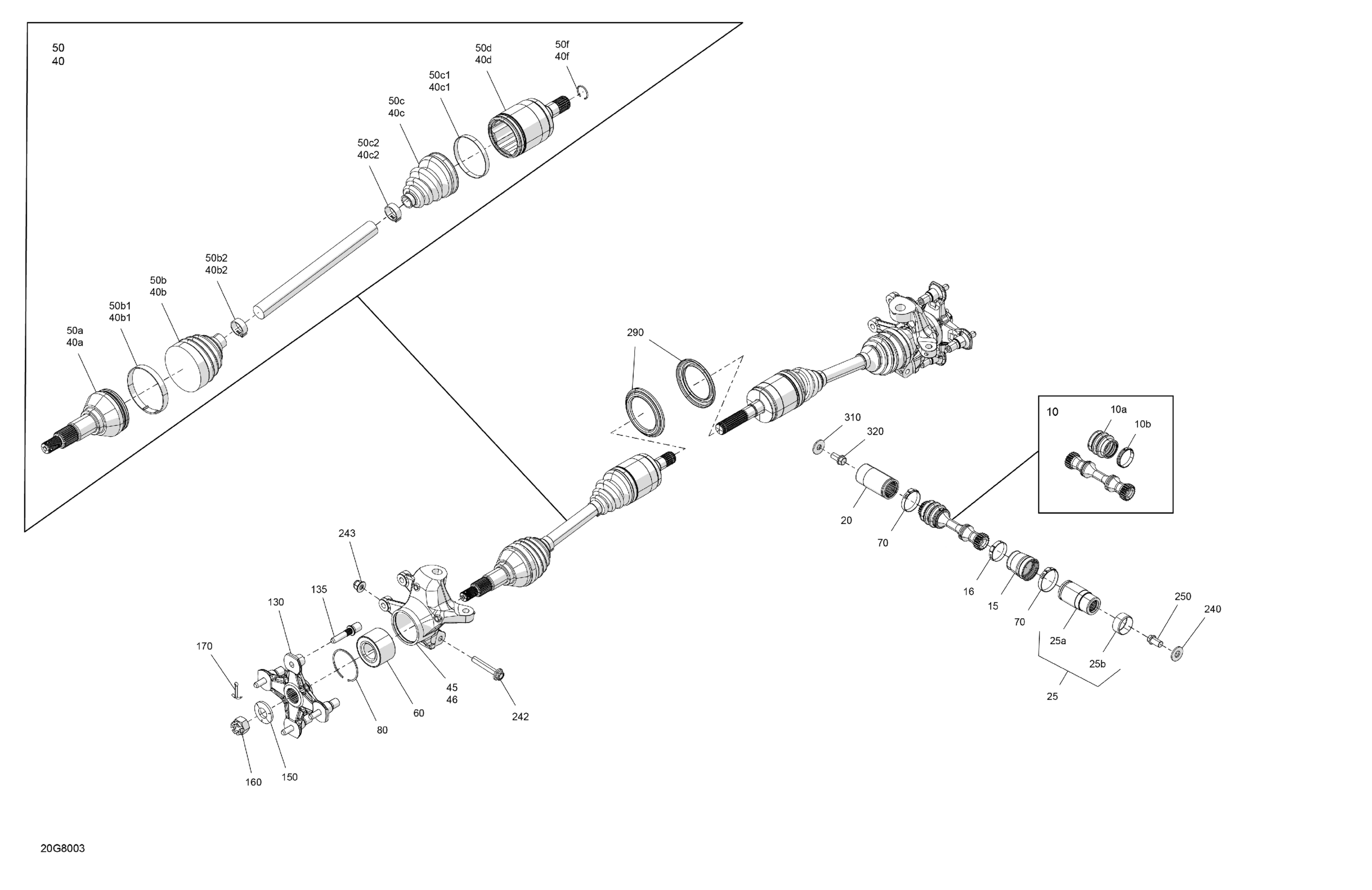

Can-Am OUTLANDER PRO - 4X4 - 570 EFI - 4JJA - Squadron Green, 2018 Drive - Front - Common Parts Diagram

#

Description
Price

10

Propeller Shaft | Includes 1 to 2

705400913

$211.99

10a

Rubber Boot

715900118

$14.30

10b

Oetiker Gear Clamp 36.1MM

509000045

$8.29

15

Rubber Boot

705401093

$5.00

16

Oetiker Gear Clamp

293650199

$9.69

20

Coupling Sleeve

705401969

$28.49

25

Front Bushing Shaft Kit | 4X4

703500678

$114.99

25a

Not Available As Spare Parts

XXX

Unavailable

25b

Wear Ring | 4X4

705400036

$26.49

40

RH Front - Premium CV Axle

705401116

$243.99

40a

CV Joint

705401344

$259.49

40b

Boot Kit, Wheel Side

705401345

$42.49

40b1

Oetiker Clamp

715900282

$5.29

40b2

Oetiker Clamp, Small

715900283

$5.29

40c

Boot Kit, Differential Side

705401346

$42.49

40c1

Oetiker Clamp, Large

715900284

$5.29

40c2

Oetiker Clamp, Small

715900261

$5.29

40d

RH Plunging Joint

705401348

$259.49

40f

Circlip Joint | Not shown

705401349

$6.50

45

LH Knuckle

705403307

$179.99

46

RH Knuckle

705403308

$179.99

50

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$243.99

50a

CV Joint

705401344

$259.49

50b

Boot Kit, Wheel Side

705401345

$42.49

50b1

Oetiker Clamp

715900282

$5.29

50b2

Oetiker Clamp, Small

715900283

$5.29

50c

Boot Kit, Differential Side

705401346

$42.49

50c1

Oetiker Clamp, Large

715900284

$5.29

50c2

Oetiker Clamp, Small

715900261

$5.29

50d

LH Plunging Joint

705401350

$259.49

50f

Circlip Joint | Not shown

705401349

$6.50

60

Ball Bearing

293350150

$52.99

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

80

Circlip

293370019

$4.68

130

Wheel Hub Ass'y

705501716

$105.99

135

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

150

Conical Spring Washer M18

250200171

$7.65

160

Hex. Flange Castellated Nut M18

232291413

$7.98

170

Cotter Pin

250400071

$2.11

240

Flat Washer M12

250200102

$2.11

242

Hex. Flange Screw M10 X 60

207606044

$3.38

243

Hex. Flange Elastic Nut M10

233201434

$2.09

250

Hex Flange Screw M12 X 20

250001042

$1.90

290

Wear Sleeve

705400780

$7.90

310

Flat Washer M10 | 4X4

250200014

$1.49

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44
