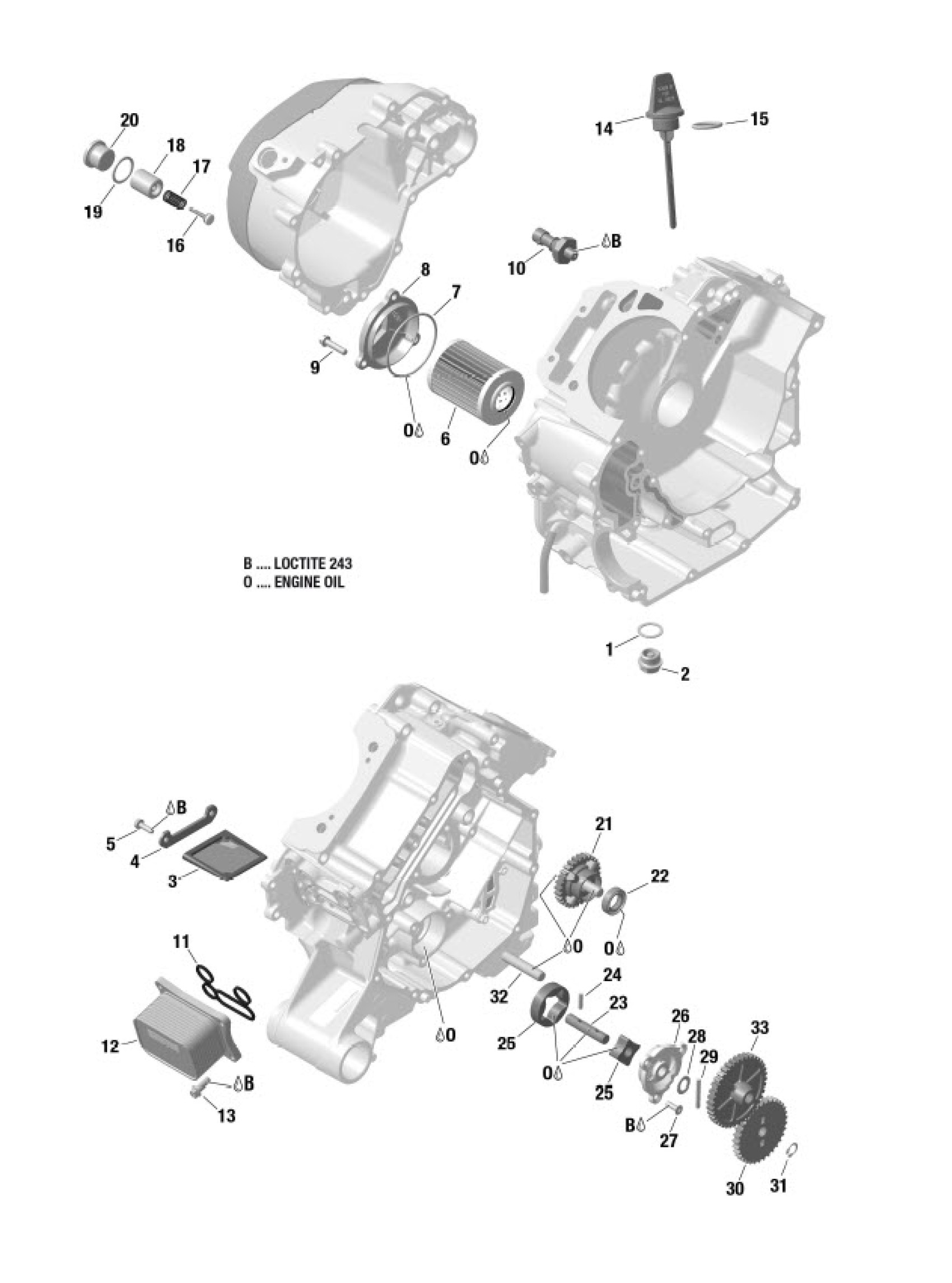

Can-Am OUTLANDER PRO - 4X4 - 570 EFI - 3VJA - Squadron Green, 2018 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Crush Washer

420552280

$2.99

2

Drain Plug M18 X 1.5

420840278

$23.05

3

Oil Sieve

420256322

$27.66

4

Cover Sieve

420210661

$13.58

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$11.14

7

O-Ring

420230923

$2.59

8

Oil Filter cover

420612135

$11.11

9

Torx Flange Screw M6 X 25

420641238

$2.68

10

Oil Pressure Switch

420256915

$38.43

11

Oil Seal

420430325

$8.45

12

Radiator

420890181

$92.28

13

Torx Flange Screw M6 X 16

420440164

$2.31

14

O-Ring

420631640

$2.06

15

Oil Dipstick

420256802

$16.89

16

Pressure Relief Valve

420656370

$16.89

17

Spring

420939481

$4.65

18

Housing

420256487

$7.23

19

Gasket Ring

420650465

$11.52

20

Plug Screw

420640271

$13.29

21-22

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$86.89

22

Oil Seal

420430555

$17.66

23

Oil Pump Shaft

420237059

$28.43

24

Needle Pin

420232731

$1.56

25

Oil Pump Rotor

420256348

$61.72

26

Oil Pump Cover

420210646

$46.89

27

Torx Head Screw M5 X 16

420640823

$1.85

28

Thrust Washer

420827590

$3.86

29

Needle Pin

420232431

$3.67

30

Oil Pump Gear, 33 Teeth

420434320

$13.29

31

Idle Gear, 38 Teeth

420434300

$13.29

32

Location Pin 10 M6x50

420229302

$3.11

33

Not Available As Spare Parts

XXX

Unavailable
