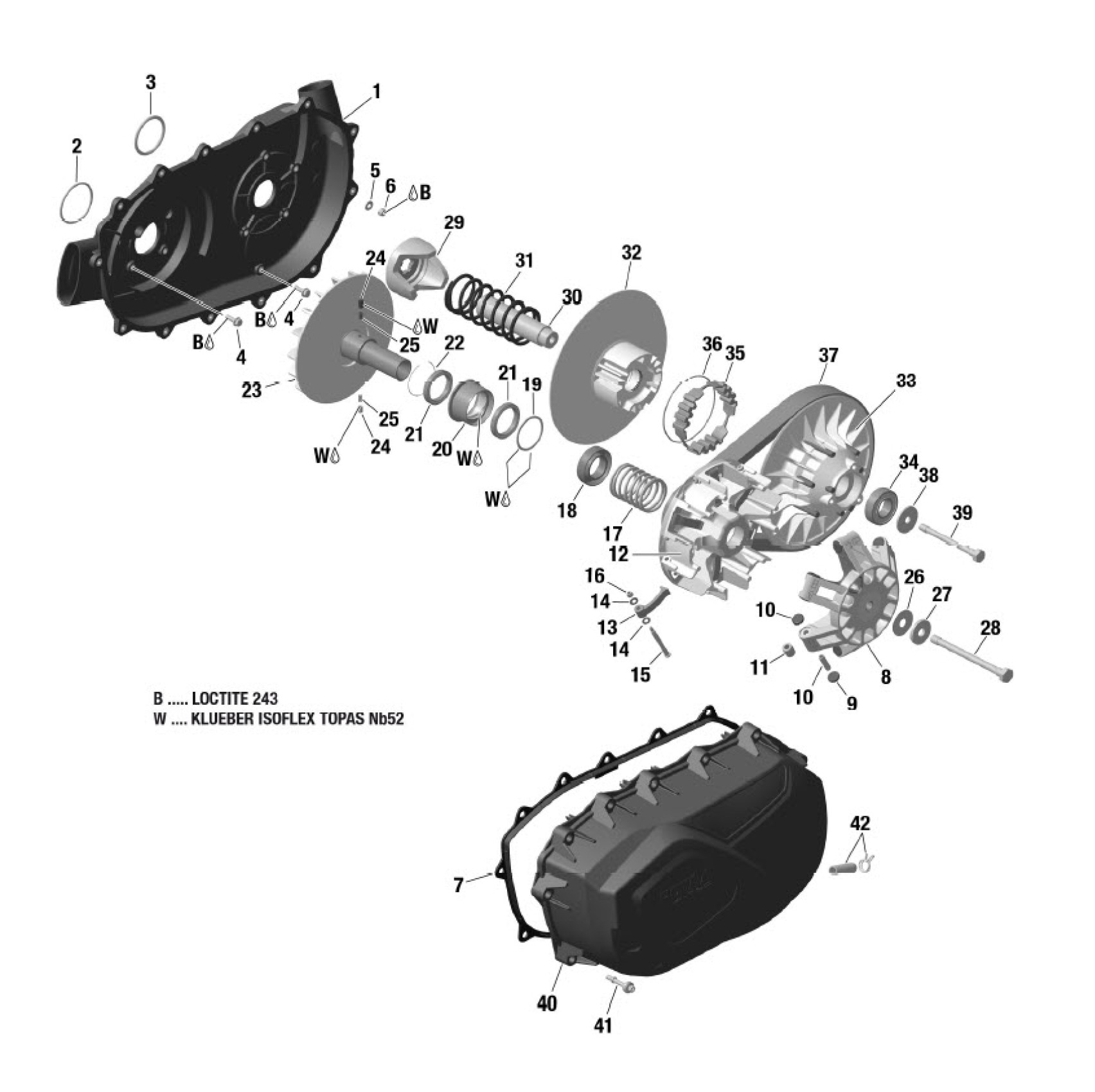

Can-Am OUTLANDER PRO - 4X4 - 570 EFI - 3VJA - Squadron Green, 2018 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420612304

$184.58

2

O-Ring

420430408

$5.52

3

O-Ring

420631089

$5.52

4

Hex.Screw M6 X 20

420441311

$4.24

5

Flat Washer

224061121

$0.44

6

Elastic Stop Nut M6

232561414

$1.55

7

Gasket

420430126

$41.51

8-11

Governor Cup Ass'y | Includes 6 to 9

420280522

$253.82

9

Slider Shoe Set

420281296

$42.28

10

Roller Axle

417223257

$9.22

11

Roller

417223767

$7.37

12

Outer Half Pulley Ass'y

420280482

Unavailable

13-16

Centrifugal Lever Kit

420248680

$179.97

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Compression Spring, Drive Pulley

420238610

$22.07

18

Seat Spring

420627578

$28.57

19

Friction Washer

420460430

$10.78

20

Drive Pulley Clutch

420257195

$69.97

21

Ball Bearing

420632377

$40.27

22

Retaining Ring

420245951

$4.72

23

Inner Half

420280374

$179.97

24

Spring Sleeve

420229577

$14.92

25

Spring

420239134

$2.52

26

Thrust Washer

420627920

$7.37

27

Spring Washer

420627768

$20.74

28

Hex. Screw M12 X 140

420641859

$23.05

29

Cam

420280701

$152.28

30

Inner Half Ass'y | Includes 33 to 35

420248233

$308.74

31

Compression Spring

420238176

$36.89

32

Inner Half Ass'y | Includes 33 to 35

420248233

$308.74

33-36

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.99

34

Ball Bearing

420932421

$26.89

35

Torque Gear

420660124

$23.05

36

Retaining Ring

420245911

$5.98

37

V-Belt

422280366

$170.99

38

Thrust Washer

420627594

$12.91

39

Hex. Screw M10 X 110

420441485

$11.98

40

Variator Cover

420611397

$207.66

41

Hex Screw M6 X 30

420440568

$7.10

42

Drain Plug Kit

707001179

$9.22
