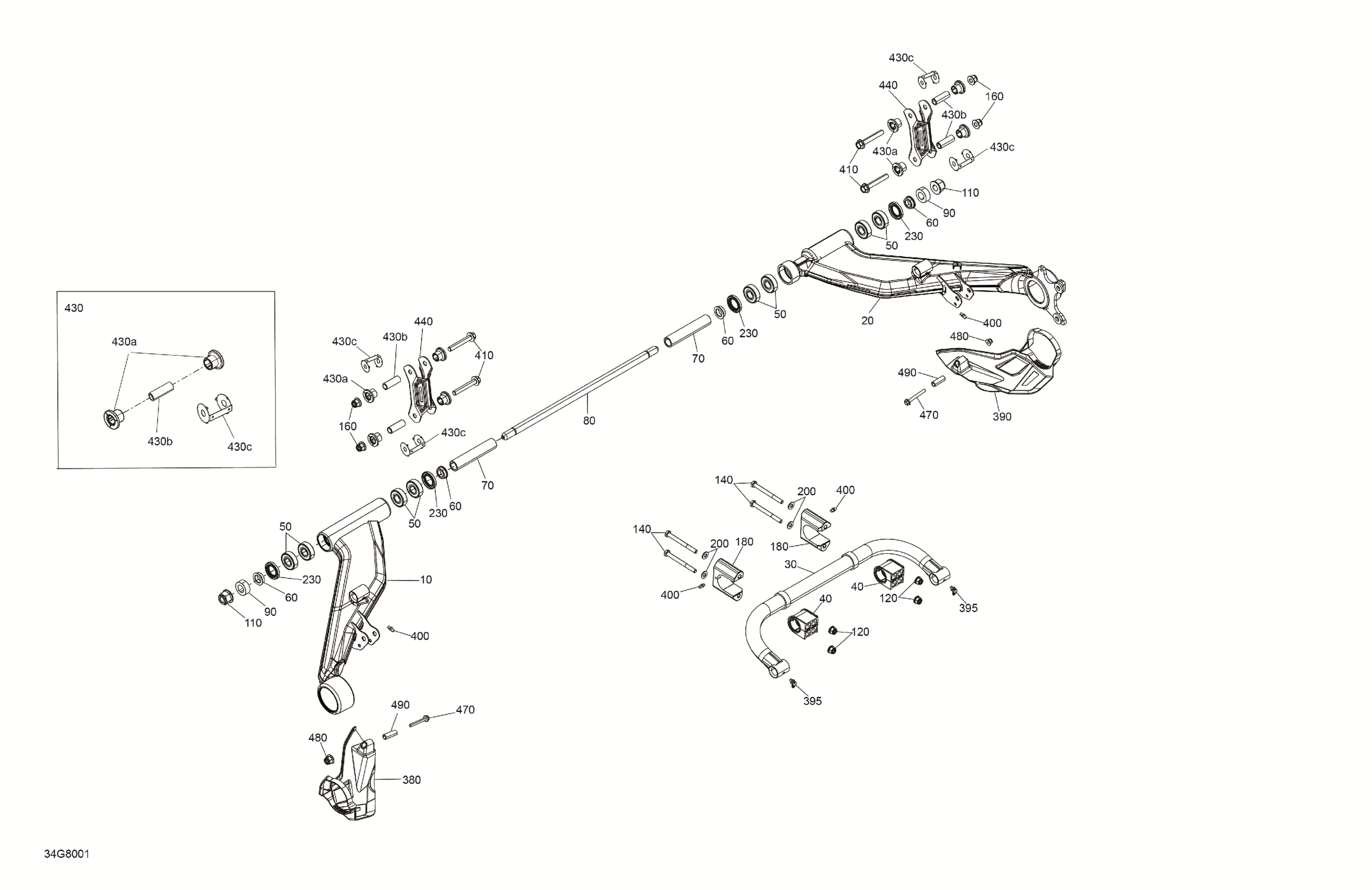

Can-Am OUTLANDER - 4X4 - DPS - 450 EFI - 2WJA - Orange Crush, 2018 Suspension - Rear Components Diagram

Description

Price

Black, LH Rear Swing Arm

706001646

$290.74

Black, RH Rear Swing Arm

706004525

$290.74

Sway Bar

706001678

$129.20

Stabilizer Bar Bushing

706004640

$9.22

Ball Bearing

293350145

$12.91

Spacer

706001282

$10.98

Spacer

706002258

$27.54

Axial Pivot M16

706001664

$69.20

Flat Washer M17

250200112

$6.34

110

Hex. Flange Elastic Nut M16

233211466

$1.53

120

Hex. Flange Elastic Nut M8

233281434

$1.74

140

Hex. Screw M8 X 85

250001035

$1.46

160

Hex. Flange Elastic Nut M10

233201436

$1.74

180

Bushing Holder

706001099

$31.51

200

Flat Washer M8

234081430

$1.74

230

Seal

293200144

$4.60

380

LH Protector

706002482

$14.37

390

RH Protector

706002483

$14.08

395

Grease Fitting 90°

293550056

$1.37

400

Grease Fitting

250000315

$4.82

410

Hex. Flange Screw M10 X 65

207606536

$3.61

430

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

430a

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

430b

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

430c

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

440

Sway Bar Linkage

706001020

$12.68

470

Hex. Flange Screw M6 X 50

207665044

$3.38

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

490

Bushing

707001376

$4.22
