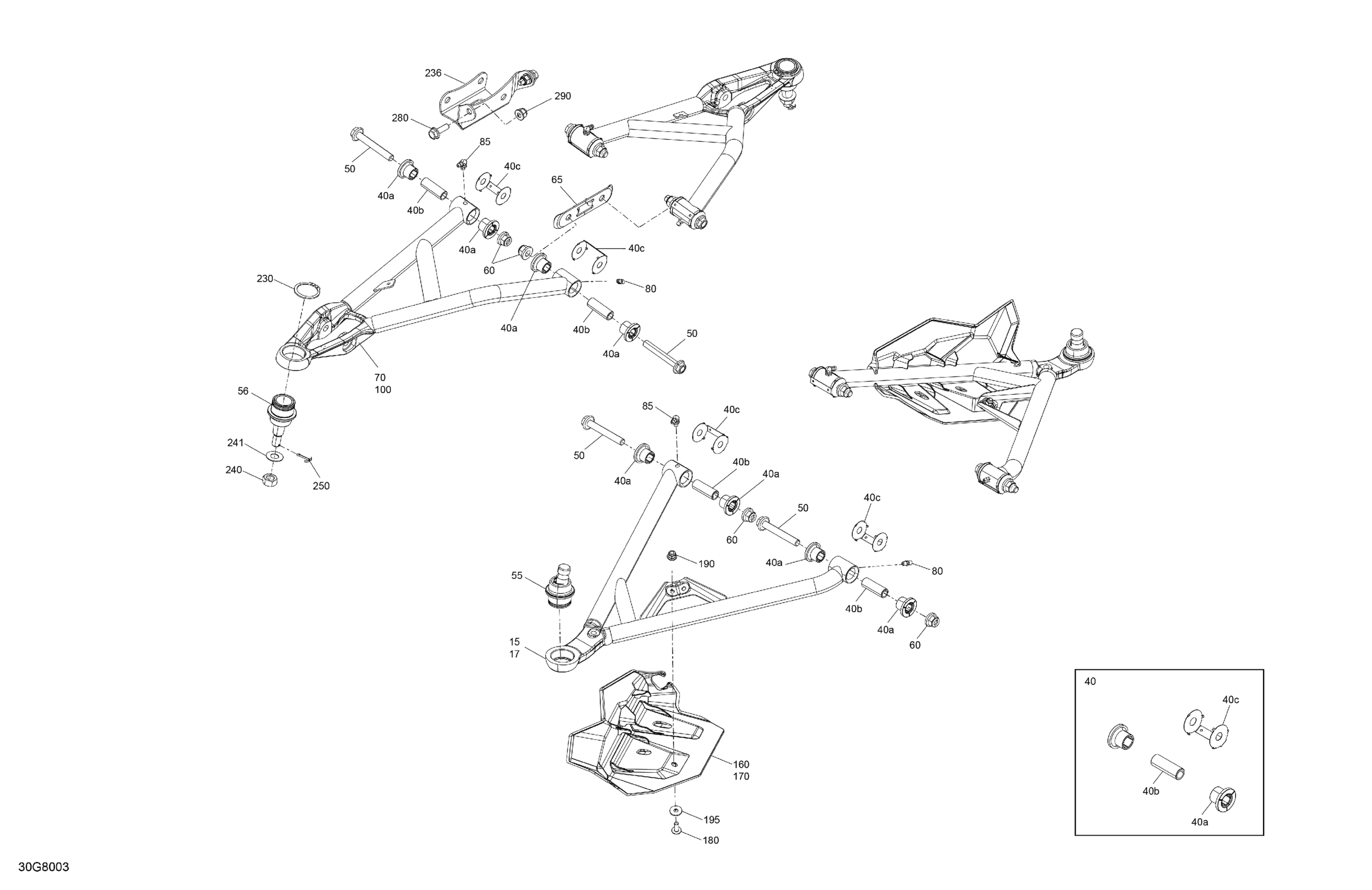

Can-Am OUTLANDER - 4X4 - DPS - 450 EFI - 2WJA - Orange Crush, 2018 Suspension - Front Components Diagram

Description

Price

LH Lower Suspension Arm

706204639

$151.04

Black, RH Lower Arm

706202870

$156.89

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

40a

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

40b

Spacer

706204623

Unavailable

40c

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

Hex. Flange Screw M10 X 70

207607046

$2.91

Ball Joint

706202045

$35.35

Ball Joint

706202044

$35.14

Hex. Flange Elastic Nut M10

233201436

$1.74

Front Suspension Cross Plate

706200998

$4.91

RH Upper Suspension Arm

706204642

$151.04

Grease Fitting

408200700

$2.80

Grease Fitting 90°

293550056

$1.37

100

LH Upper Suspension Arm

706204641

$151.04

160

LH Joint Protector

706202808

$9.29

170

RH Joint Protector

706202809

$9.29

180

Torx Screw M6 X 16

250000755

$0.72

190

Hex. Flange Elastic Nut M6

233261494

$1.26

195

Stainless Steel Flat Washer

234062670

$1.74

230

Circlip

293370035

$2.55

236

Upper Front Holder

705203247

$14.37

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

280

Hex. Flange Screw M8 X 25

207682544

$0.90

290

Hex. Flange Elastic Nut M8

233281414

$1.14
