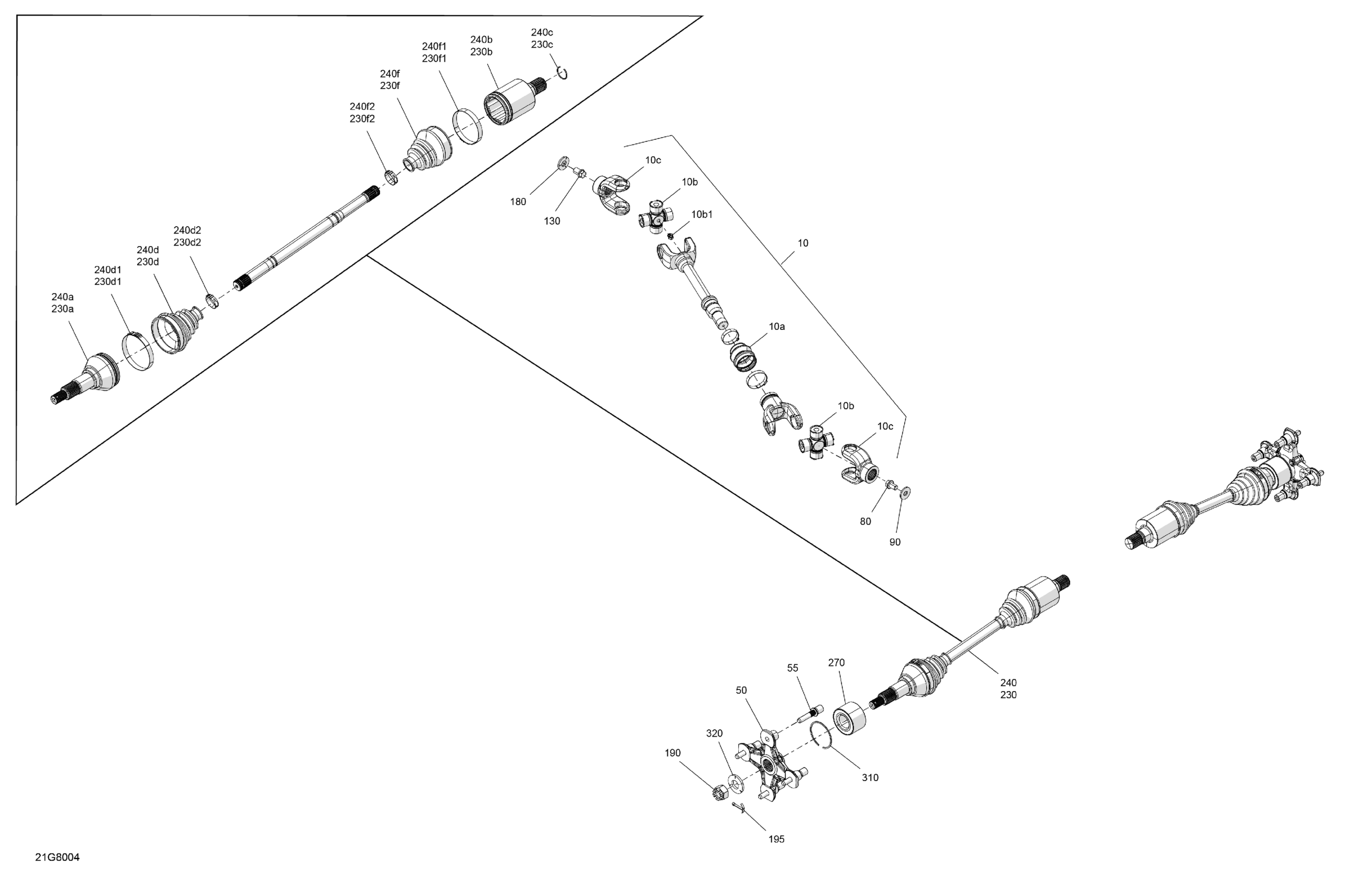

Can-Am OUTLANDER - 4X4 - DPS - 450 EFI - 2WJA - Orange Crush, 2018 Drive - Rear - Common Parts Diagram

Description

Price

Rear Propeller Shaft Ass'y Kit

703500932

$241.01

10a

Rubber Boot

715900118

$13.28

10b

Universal Joint Ass'y | T3

703500846

$55.19

10b1

Grease Fitting | T3

715900295

$4.09

10c

Yoke | T3

715900500

$23.10

Wheel Hub Ass'y

705501716

$123.10

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.00

Flat Washer M10 | 4X4

250200014

$1.34

130

Hex Flange Screw M12 X 16

250001039

$2.00

180

Conical Spring Washer M12

250200005

$3.04

190

Hex. Flange Castellated Nut M18

232291413

$3.24

195

Cotter Pin

250400071

$2.00

230

RH Half Shaft Ass'y

705501897

$226.84

230a

CV Joint

705401344

$241.01

230b

Plunging Joint

715900304

$110.42

230c

Circlip

705501781

$5.10

230d

Boot Kit, Wheel Side

705401345

$39.52

230d1

Oetiker Clamp

715900282

$5.04

230d2

Oetiker Clamp, Small

715900283

$5.04

230f

Boot Kit, Differential Side

705401346

$39.52

230f1

Oetiker Clamp, Large

715900284

$5.04

230f2

Oetiker Clamp, Small

715900261

$5.04

240

LH Half Shaft Ass'y

705501898

$226.84

240a

CV Joint

705401344

$241.01

240b

Plunging Joint

715900304

$110.42

240c

Circlip

705501781

$5.10

240d

Boot Kit, Wheel Side

705401345

$39.52

240d1

Oetiker Clamp

715900282

$5.04

240d2

Oetiker Clamp, Small

715900283

$5.04

240f

Boot Kit, Differential Side

705401346

$39.52

240f1

Oetiker Clamp, Large

715900284

$5.04

240f2

Oetiker Clamp, Small

715900261

$5.04

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$6.06
