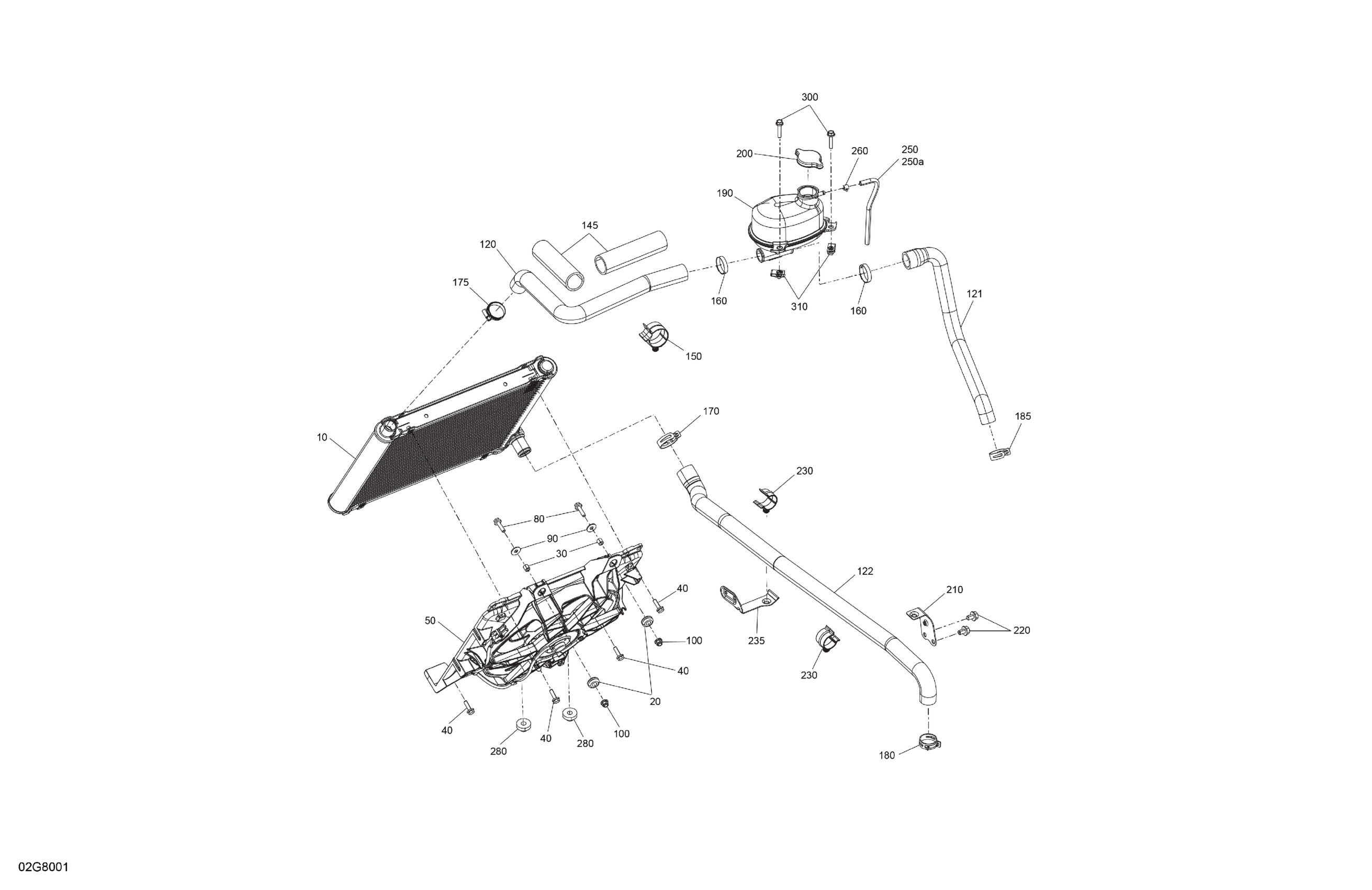

Can-Am OUTLANDER - 4X4 - DPS - 450 EFI - 2WJA - Orange Crush, 2018 Engine - Cooling Diagram

Description

Price

Radiator

709200286

$453.14

Overmolded Grommet

293720130

$4.38

Bushing

293900105

$6.26

Hex. Flange Screw M6 X 20

207662034

$1.74

Fan Ass'y

709200563

$235.35

Hex. Flange Screw M6 X 25

207662534

$1.74

Flat Washer

250200082

$0.35

100

Flange Elastic Nut M6

233261434

$3.61

120

Radiator Inlet Hose

709200278

$32.28

121

Coolant Hose

709200893

$27.66

122

Engine Outlet Hose | Engine 450

709200636

$27.66

145

Tubing 35 MM 1000MM Long

219704428

$8.57

150

Retainer

275500590

$7.18

160

Gear Clamp

509000162

$7.37

170

Norma Spring Clamp

293650166

$4.28

175

Norma Gear Clamp

293650098

$4.28

180

Norma Spring Clamp

293650108

$4.00

185

Norma Spring Clamp

293650109

$4.00

190

Coolant Tank

709200297

$53.19

200

Radiator Pressure Cap

709200207

$18.82

210

Hose Support

709200206

$8.45

220

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

230

Retainer

275500526

$3.73

235

Hose Support

709200641

$8.45

250

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

250a

Polyurethane Hose

293830193

Unavailable

260

Spring Clamp

414554800

$0.83

280

Grommet

709200285

$7.09

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

310

Panel Nut M6 X 1.0

250100198

$1.73
