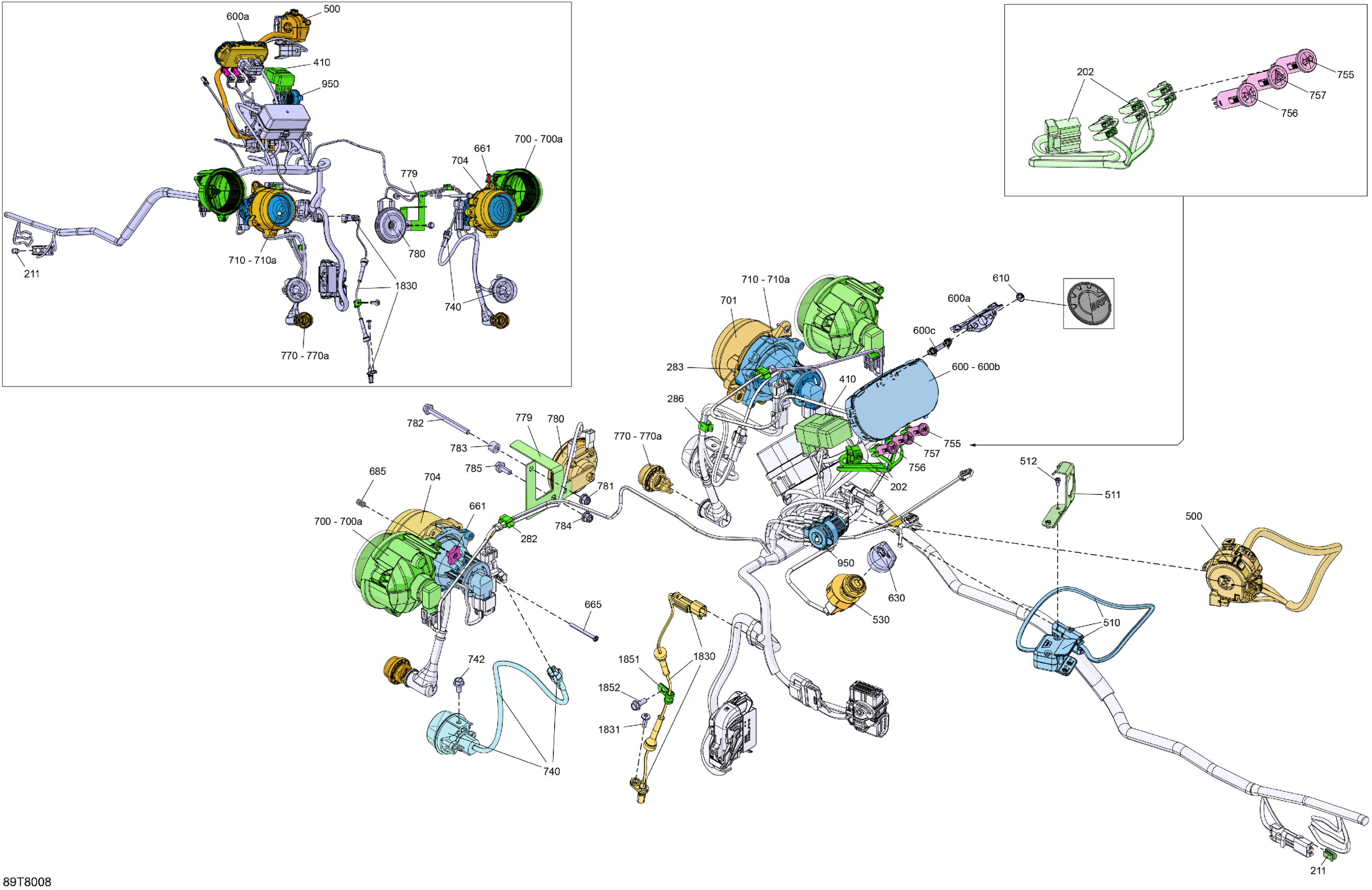

Can-Am OUTLANDER MAX - 4X4 - XTP - 650 EFI - 3DJB - Timeless Black Metallic, 2018 Electric - Front Section Diagram

Description

Price

202

Indicator Light Cable

710005840

$16.39

211

Clip

710000992

$3.88

282

Clip

414227300

$1.40

283

Clip

414227300

$1.40

286

Clip

414227300

$1.40

410

Flasher Unit

710003239

$73.10

500

Multi-Function Handle

710005552

$154.45

510

Winch Switch

710005241

$153.70

511

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$9.54

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

530

Ignition Switch

710008400

$72.36

600

Speedometer | Includes 600 to 600c

710005632

$394.00

600a

Cap Support | XTP

705004366

$11.49

600b

Lens | XTP

415129349

$22.36

600c

Speedometer Button | XTP

415129355

$13.52

610

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

630

Grey, Electronic Key

710002183

$53.70

640

Black, Electronic Key

710000817

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

740

Flasher | Europe

710002964

$34.30

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

755

Pilot Light Trailer Flasher

710005766

$7.64

756

Pilot Light Tail Lamp

710005767

$7.64

757

Pilot Lamp | Model-Europe

710003909

$20.12

770

Day Light | Europe

710001726

$32.81

770a

Cap Protector | Model-Europe

710003269

$10.12

779

Horn Support

710006113

$10.82

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

783

Bushing

708001129

$9.91

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

785

Hex. Flange Screw M6 X 16

207661644

$0.61

950

DC Outlet

710001248

$31.17

1830

Speed Sensor

710005610

$75.34

1831

Torx Screw K50 X 16

250000720

$1.39

1851

Clamp

293650256

$4.36

1852

Hex. Flange Screw M6 X 16

210261640

$1.74
