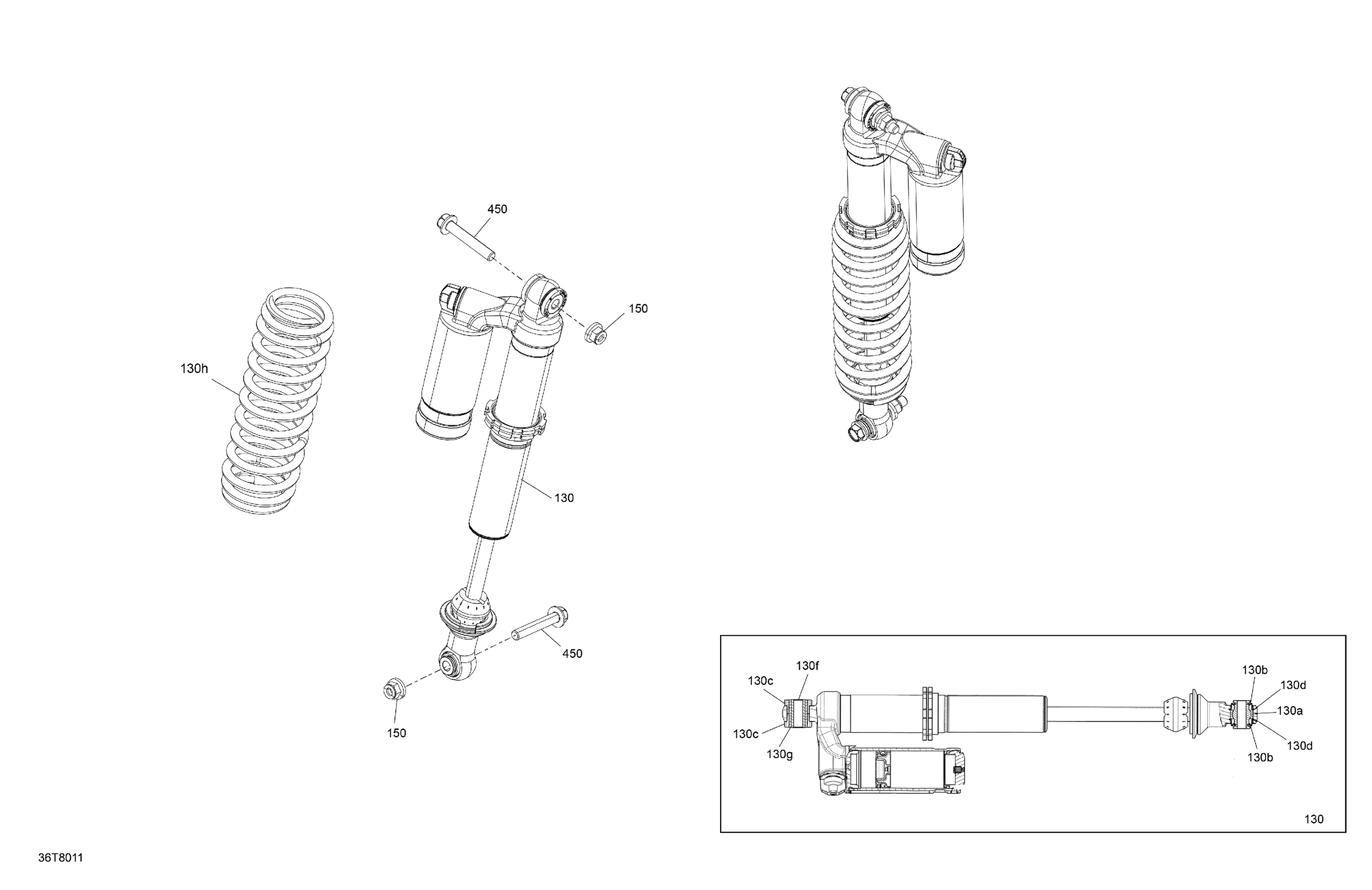

Can-Am OUTLANDER - 4X4 - XTP - 1000R - 5XJA - Timeless Black Metallic, 2018 Suspension - Rear Shocks Diagram

#

Description
Price

130

Rear Shock | Package XTP

706002597

$467.88

130a

Ball Journal

715900336

$79.07

130b

Protector

715900331

$12.49

130c

Bushing | XTP

706201648

$12.72

130d

Retaining Ring

715900252

$10.24

130f

Bushing Sleeve | XTP

706201586

$29.82

130g

Bushing Sleeve | XTP

706201585

$29.82

130h

SPRING COMPRESSION B-160 PAINTED - Call your local BRP dealership | OUT XTP

706002468

Unavailable

150

Hex. Flange Elastic Nut M10

233201436

$2.00

450

Hex. Flange Screw M10 X 6

207606046

$3.88
