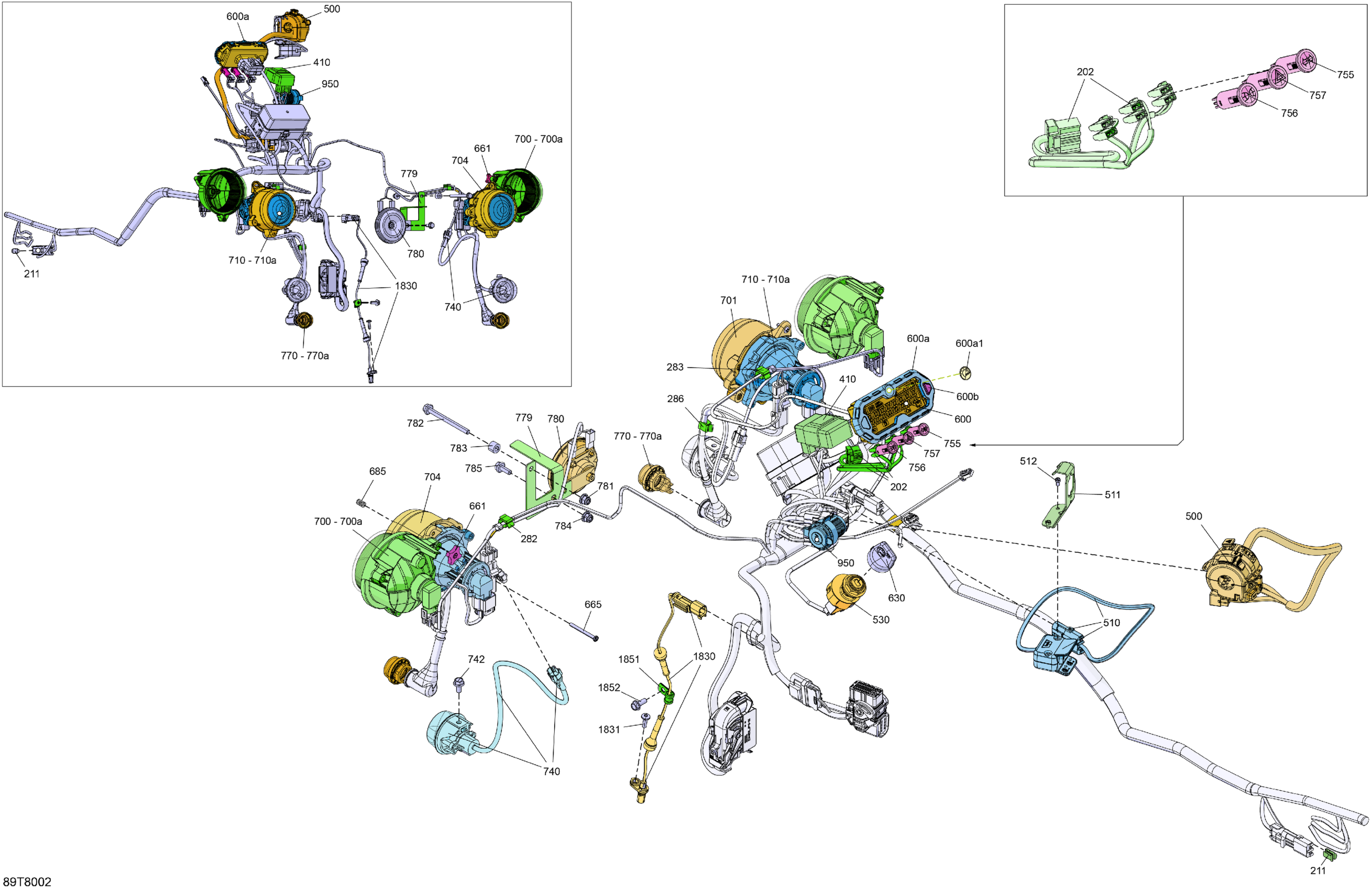

Can-Am OUTLANDER MAX - 4X4 - XT - 650 EFI - 1ZJB - Intense Red Satin, 2018 Electric - Front Section Diagram

Description

Price

202

Indicator Light Cable

710005840

$16.89

211

Clip

710000992

$4.00

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

286

Clip

414227300

$1.45

410

Flasher Unit

710003239

$78.43

500

Multi-Function Handle

710005552

$161.51

510

Winch Switch

710005241

$161.51

511

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.14

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

530

Ignition Switch

710008400

$78.43

600

Speedometer | Includes 600 to 600b

710005553

$323.05

600a

Trim Ring Ass'y

710001183

$18.43

600a1

BRP Logo 13 MM

516010651

$9.66

600b

Button

715900265

$12.68

630

Grey, Electronic Key

710002183

$55.35

640

Black, Electronic Key

710000817

$55.35

661

Handle

572106600

$9.31

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.91

700

Low Beam | Includes 54 to 55

710006177

$115.35

700a

Bulb 12V 55W

715900141

$41.51

701

RH High Front Housing

710002291

$27.66

704

LH High Front Housing

710002292

$23.05

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710a

Halogen Bulb

415129249

$39.97

740

Flasher | Europe

710002964

$35.14

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

757

Pilot Lamp | Model-Europe

710003909

$23.05

770

Day Light | Europe

710001726

$36.89

770a

Cap Protector | Model-Europe

710003269

$10.98

779

Horn Support

710006113

$11.15

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

783

Bushing

708001129

$10.98

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

785

Hex. Flange Screw M6 X 16

207661644

$0.61

950

DC Outlet

710001248

$31.17

1830

Speed Sensor

710005610

$78.43

1831

Torx Screw K50 X 16

250000720

$1.39

1851

Clamp

293650256

$4.36

1852

Hex. Flange Screw M6 X 16

210261640

$1.74
