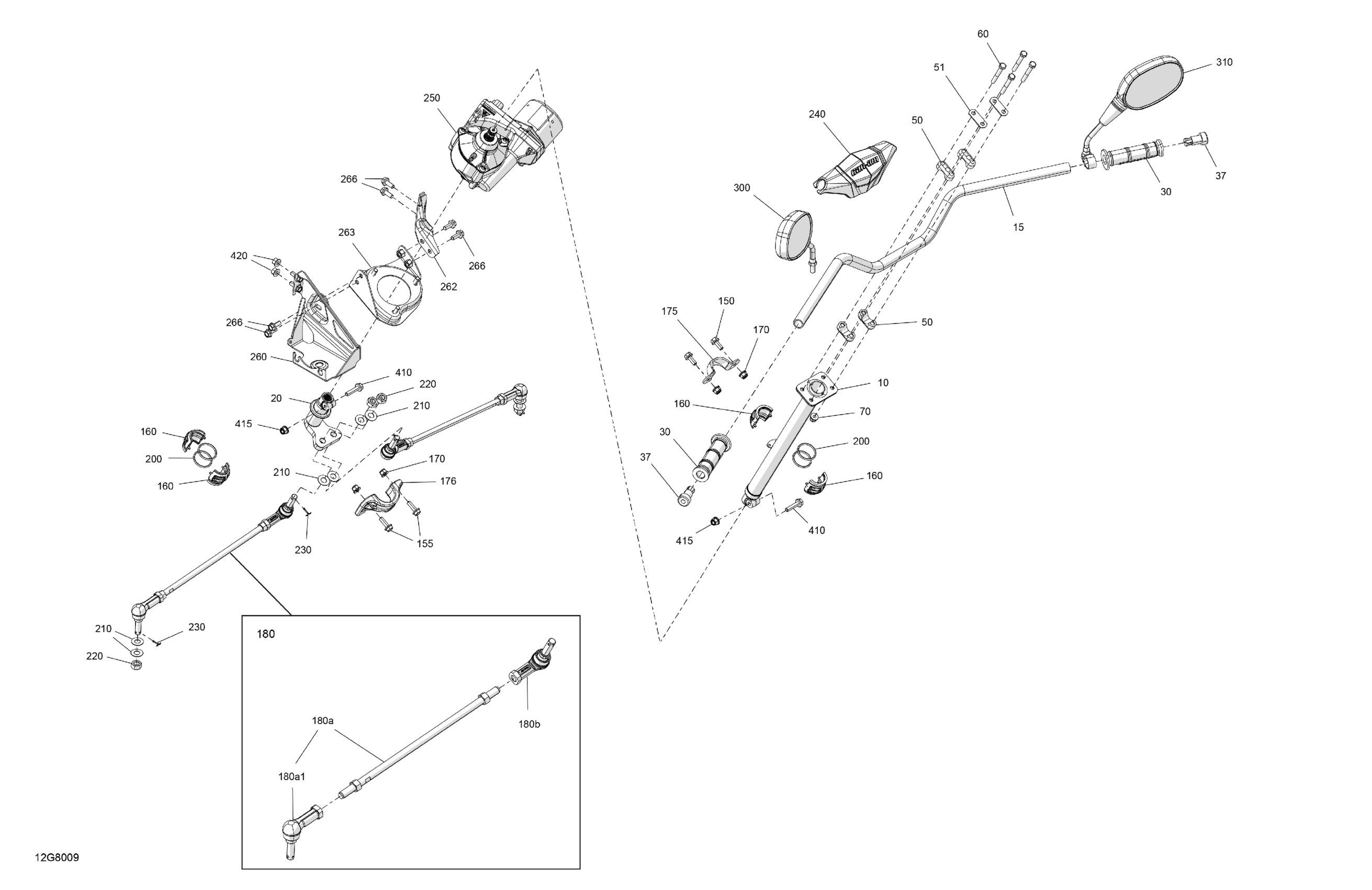

Can-Am OUTLANDER MAX - 4X4 - DPS - 570 EFI - 5NJE - Squadron Green, 2018 Mechanic - Steering Diagram

#

Description
Price

10

Main Tube Kit | Model With DPS

703501108

$74.99

15

Black, Handle Bar

709401240

$69.99

20

Pitman Arm | Model With DPS Except XMR

703501160

$43.99

30

Handle Grip

709400493

$14.83

37

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

51

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 60

207086046

$2.85

70

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682544

$1.35

160

Spherical Half Bushing

709400783

$7.65

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

180a

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

180a1

LH Ball Joint

709402303

$36.99

180b

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Nut M12

250100099

$2.09

230

Cotter Pin

211400013

$0.37

240

Cover

709400939

$24.99

250

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

260

Power Steering Module Bracket

709402192

$24.99

262

RH Bracket | Model With DPS

709402185

$28.99

263

Power Steering Support | Model With DPS

709401743

$19.99

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

300

LH Mirror | Europe

709400406

$32.99

310

RH Mirror | Europe

709400407

$47.49

410

Hex. Flange Screw M8 X 35

250000986

$2.11

415

Hex. Elastic Flange Nut M8

233281416

$1.48

420

Hex. Flange Nut M8

233081416

$1.15
