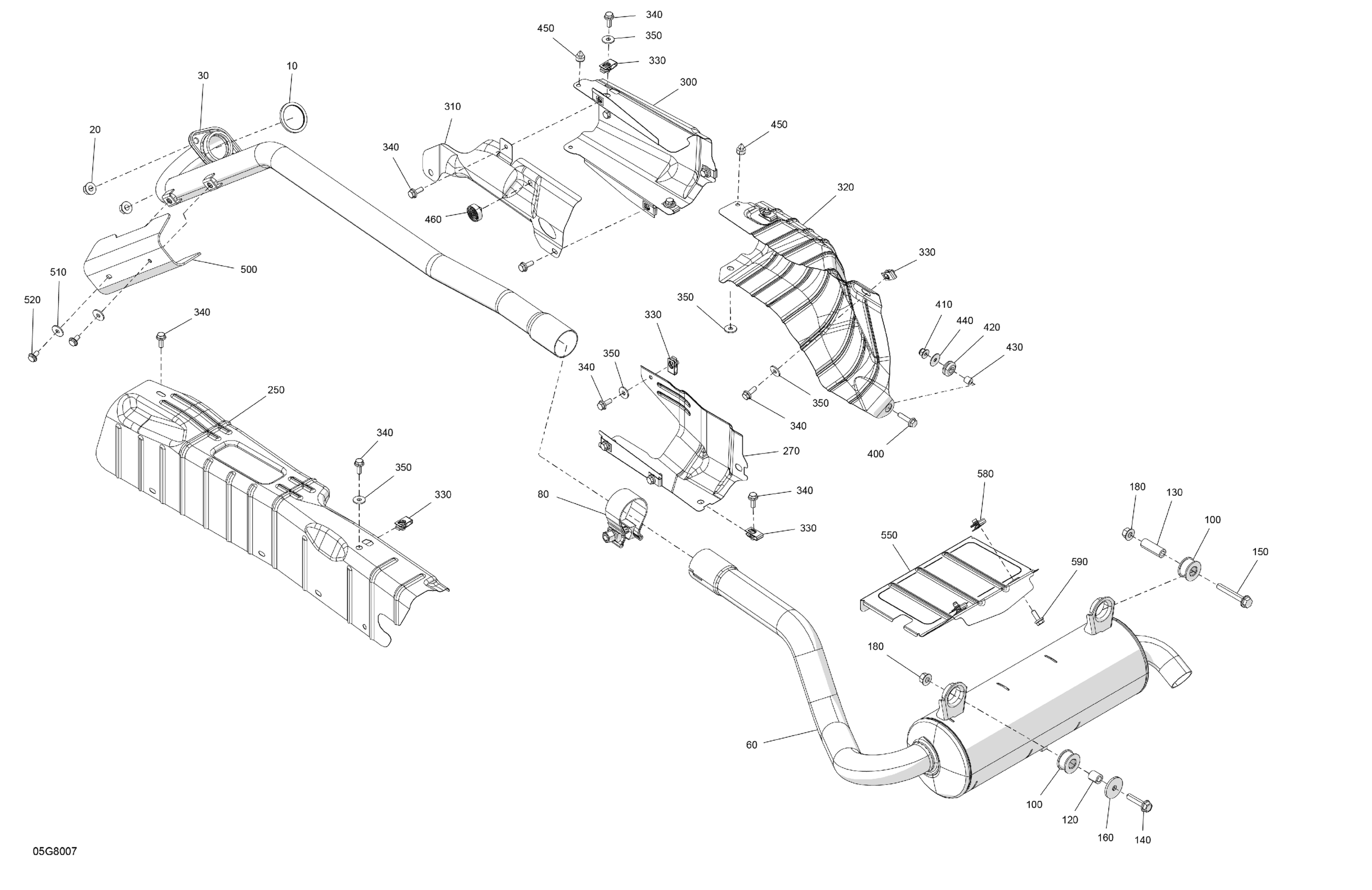

Can-Am OUTLANDER MAX - 4X4 - DPS - 450 EFI - 2XJA - Orange Crush, 2018 Engine - Exhaust Diagram

Description

Price

Gasket

707600317

$10.52

Hex. Flange Nut M8

233081416

$1.63

Front Head Pipe

707601361

$175.35

Exhaust Muffler

707601392

$590.74

Exhaust Pipe Clamp

293650228

$11.87

100

Vibration Damper

707603323

$11.07

120

Spacer Bushing

293900116

$3.08

130

Bushing

293900115

$2.31

140

Hex. Flange Screw M8 X 35

207683544

$1.39

150

Hex. Flange Screw M8 X 55

207685544

$4.41

160

Flat Washer M8

250200158

$1.74

180

Hex. Flange Nut M8

233081416

$1.63

250

Heat Shield

707603724

$12.68

270

Protector

707601484

$12.07

300

Protector

707601485

$12.07

310

Heat Shield

707602604

$16.89

320

Protector

707601425

$18.43

330

Panel Nut M6 X 1.0

250100198

$1.73

340

Hex. Flange Screw M6 X 16

207661644

$0.61

350

Flat Washer 6 mm

234062410

$0.64

400

Hex. Flange Screw M6 X 25

207662534

$1.74

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Overmolded Grommet

293720130

$4.38

430

Bushing

293900105

$6.26

440

Flat Washer

224060201

$1.15

450

Rubber Bumper

293830005

$5.33

460

Rubber Stopper

708000506

$6.15

500

Heat Shield

707601457

$12.68

510

Flat Washer

250200082

$0.35

520

Hex. Flange Screw M6 X 12

250000574

$2.06

550

Protector

707601635

$11.83

580

Panel Nut M6 X 1.0

250100198

$1.73

590

Hex. Flange Screw M6 X 16

207661644

$0.61
