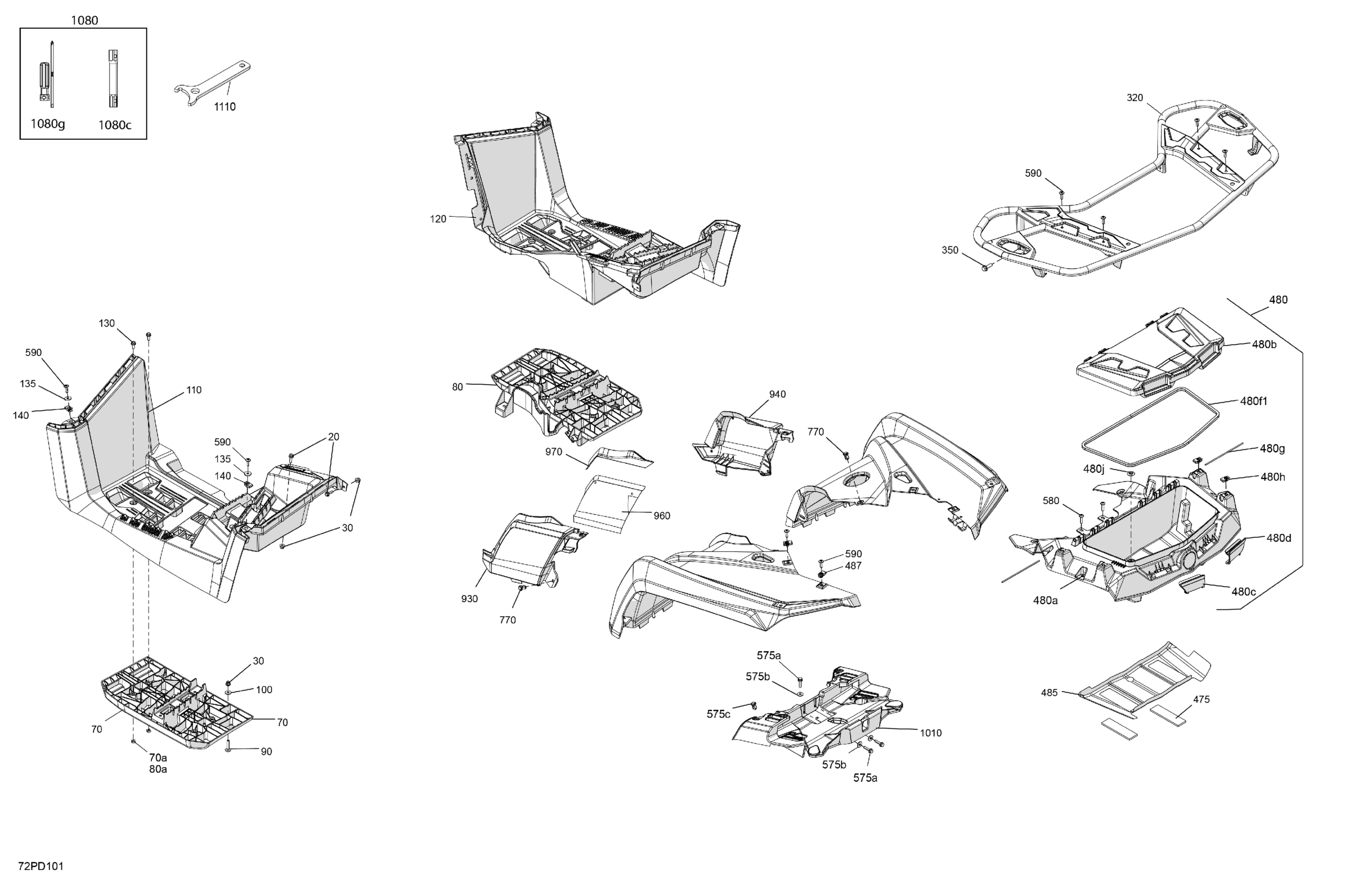

Can-Am Outlander MAX 450 EFI 6X6 - 4ZRA - DPS Package - Tundra Green, 2024 Body - Rear Section Diagram

Hex. Flange Screw M6 X 20

207662054

$0.83

Flange Elastic Nut M6

233261434

$3.61

LH Structural Footboard

705011540

$108.18

Square Nut M6

232862412

$1.18

RH Structural Footboard

705011542

$95.49

Square Nut M6

232862412

$1.18

Carriage Bolt M6 X 35

207763554

$1.70

Flat Washer 6 mm

234062410

$0.64

LH Footrest Max

705003525

$117.88

RH Footrest Max | Engine 450 MAX Model

705007724

$92.51

Hex. Flange Screw M6 X 20

207662054

$0.83

Flat Washer

224061201

$1.11

Panel Nut M6 X 1.0

250100198

$1.73

Deep Black, Rear Luggage Rack

705017600

$254.45

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

Rubber Pad

293830163

$7.81

Storage Cover | Model-Europe International

715004412

$196.99

Storage Cover | Model-Europe International

715004412

$196.99

Storage Cover | Model-Europe International

715004412

$196.99

LH Box Rear Latch

705007448

$9.91

RH Box Rear Latch

705007921

$9.85

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$34.30

Retaining Rod

705007531

$70.87

Panel Nut M6 X 1.0

250100198

$1.73

CAP - Call your local BRP dealership

414859400

Unavailable

Heat Deflector Sheet

705007487

$3.81

Panel Nut M6 X 1.0

250100198

$1.73

Hex Flange Screw M6 X 25

250000841

$6.15

Stainless Steel Flat Washer

234062670

$1.74

Tuflok Plastic Rivet

293150230

$1.21

Torx Truss Screw M6 X 25

250000807

$1.74

Torx Screw M6 X 20

250000722

$1.34

Tuflok Plastic Rivet

293150230

$1.21

LH Extension Panel

715001897

$24.60

RH Extension Panel

705004348

$23.85

Heat Shield

705006870

$4.76

Heat Shield

705006871

$4.76

Seat Holder

705007948

$52.21

Tool Kit

704700168

$40.99

Socket Wrench 14/16MM

529000085

$6.55

Screw Driver

529000021

$3.19

Adjustment Wrench

529000035

$2.19
