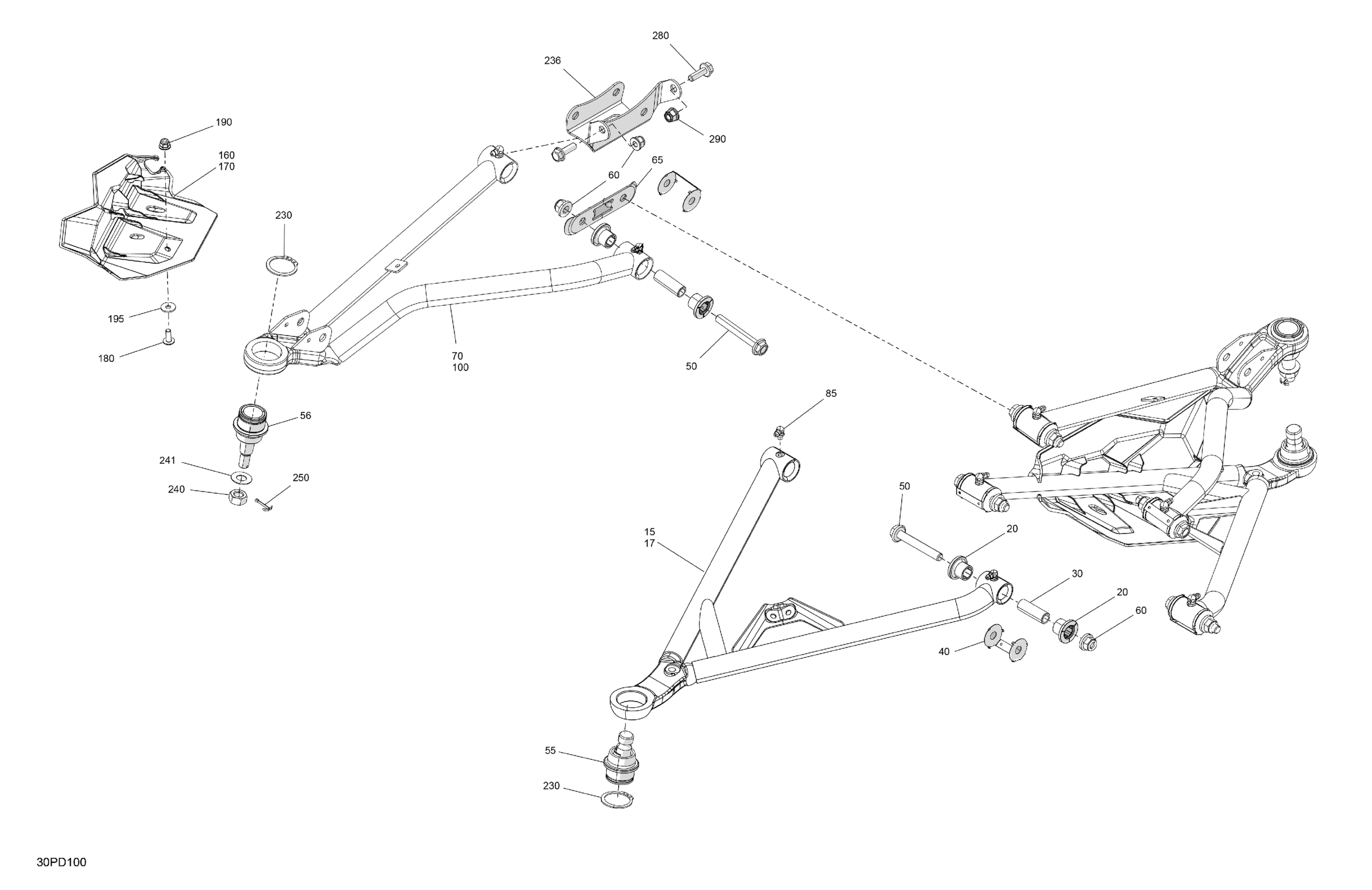

Can-Am Outlander MAX 450 EFI 6X6 - 4ZRA - DPS Package - Tundra Green, 2024 Suspension - Front Components Diagram

LH Lower Suspension Arm

706204639

$156.89

RH Lower Suspension Arm

706204640

$156.89

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

Hex. Flange Screw M10 X 70

207607046

$2.91

Ball Joint

706202045

$35.35

Ball Joint

706202044

$35.14

Hex. Flange Elastic Nut M10

233201436

$1.74

Front Suspension Cross Member

706205645

$4.91

RH Upper Suspension Arm

706204642

$156.89

Grease Fitting 90°

293550056

$1.37

LH Upper Suspension Arm

706204641

$156.89

LH Joint Protector

706202808

$9.29

RH Joint Protector

706202809

$9.29

Torx Screw M6 X 16

250000755

$0.72

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Circlip

293370035

$2.55

Upper Front Holder

705203247

$14.37

Hex Nut M12

250100239

$1.64

Hardened Washer

706200281

$2.34

Cotter Pin

211400017

$0.25

Hex. Flange Screw M8 X 25

207682544

$0.90

Hex. Flange Elastic Nut M8

233281414

$1.14
