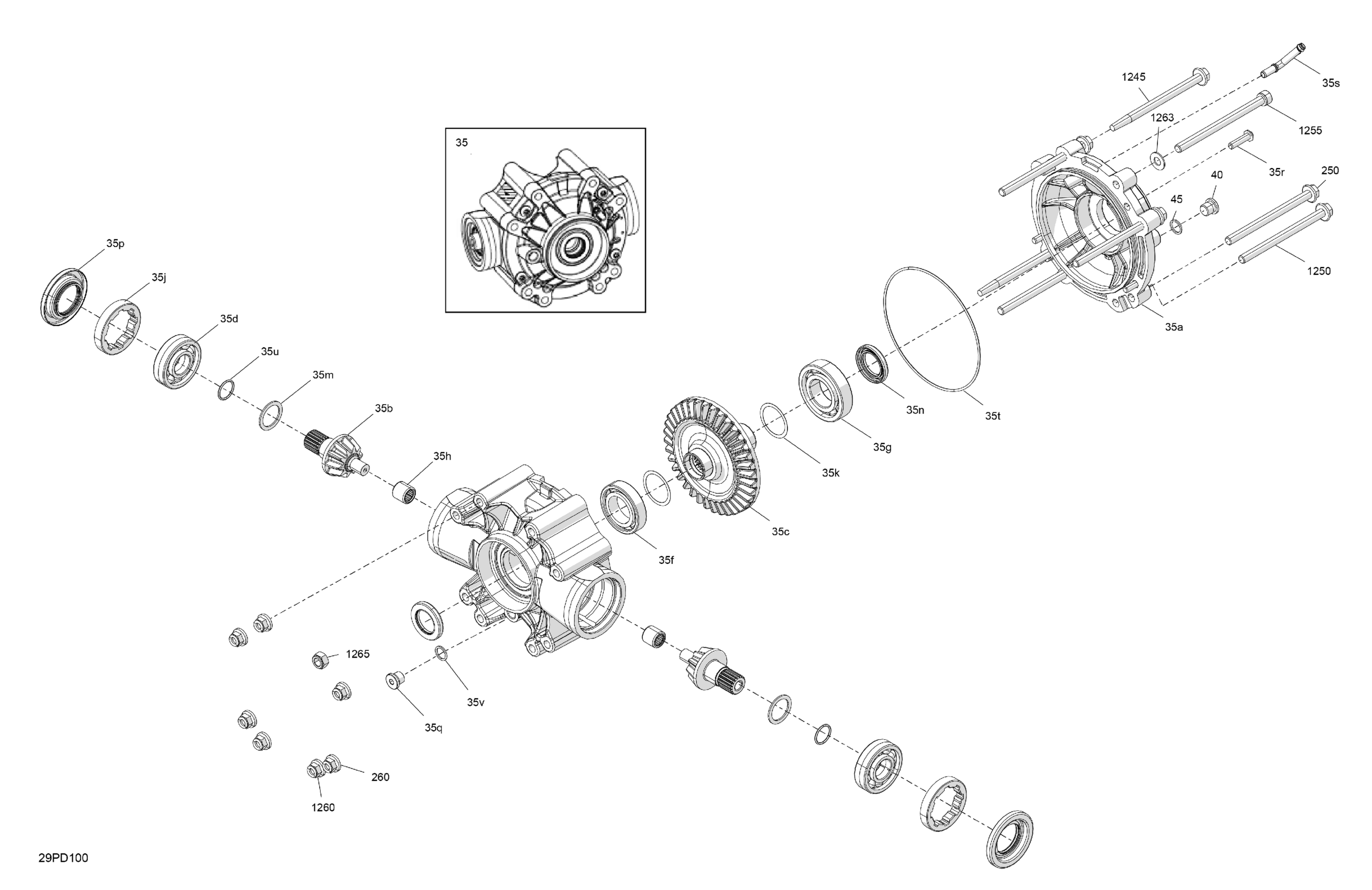

Can-Am Outlander MAX 450 EFI 6X6 - 5ERA - XU+ Package - Tundra Green, 2024 Drive - Middle Drive Unit Diagram

Description

Price

Middle Drive Unit Ass'y | Includes 35 to 35u

705502369

$1,379.99

35a

Rear Cover

705502390

$179.99

35b

Pinion 10 Teeth

705502823

$219.99

35c

Gear 36 Teeth

705502822

$409.99

35d

Ball Bearing

705502736

$31.99

35f

Ball Bearing

705502737

$48.49

35g

Ball Bearing

705502738

$59.49

35h

Needle Bearing

705502058

$49.99

35j

Nut

705502059

$32.99

35k

Differential Shim 0.02 mm

705502060

$13.76

35m

Pinion Gear Shim 1.67 mm

705502061

$18.99

35n

Oil Seal

705501996

$21.99

35p

Oil Seal

705402405

$27.49

35q

Fill Level Plug | 4X4

705500504

$10.01

35r

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

35s

Breather Tube

705501584

$14.99

35t

Seal

705502064

$8.47

35u

O-Ring

705502065

$5.95

35v

Copper Washer | 4X4

705500506

$0.45

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

1245

Hex. Flange Screw M10x145

705502741

$8.09

1250

Hex. Flange Screw M10 X 135

250001041

$5.59

1255

Screw Socket HD M10 X 140

250001094

Unavailable

1260

Hex. Flange Elastic Nut M10

233201436

$2.11

1263

WASHER M10 - Call your local BRP dealership

20005

Unavailable

1265

Elastic Stop Nut M10

232500416

$1.90
