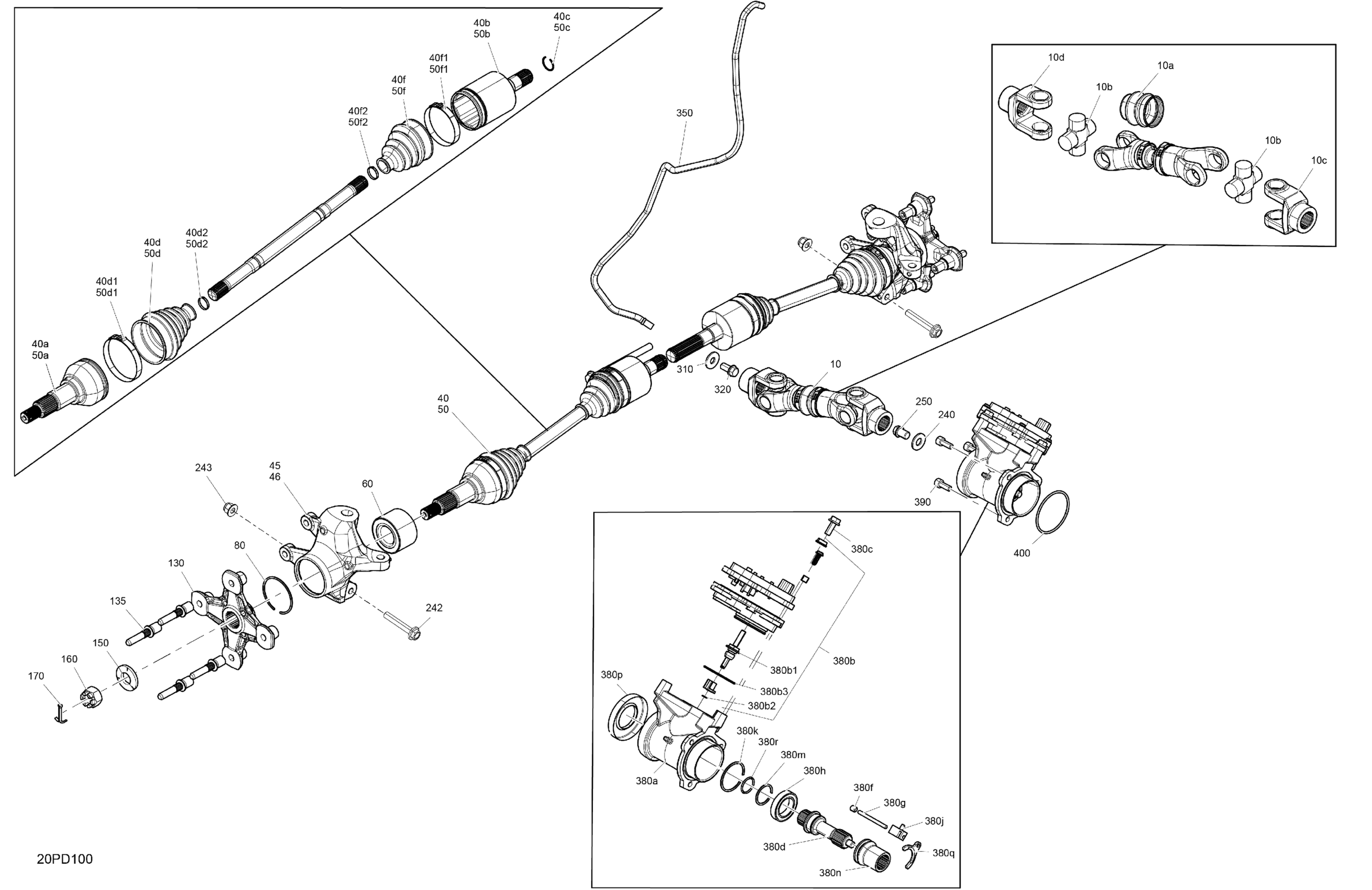

Can-Am Outlander MAX 450 EFI 6X6 - 4ZRA - DPS Package - Tundra Green, 2024 Drive - Front - Common Parts Diagram

#

Description
Price

10

Front Drive Axle

705403293

$170.74

10a

Rubber Boot

715900118

$13.83

10b

U-Joint Cross Kit

715900829

$78.43

10c

Fixed Yoke Joint

715900497

$59.97

10d

Yoke Joint

715900498

$23.05

40

RH Front - Premium CV Axle

705401428

$233.82

40a

CV Joint

715900297

$253.82

40b

RH Plunging CV Joint

715900300

$253.82

40c

Circlip Joint | Not shown

705401349

$5.38

40d

CV Boot Kit, Wheel Side

715900298

$41.51

40d1

Oetiker Clamp, Large

715900262

$7.84

40d2

Oetiker Clamp, Small

715900317

$10.20

40f

CV Boot Kit, Differential Side

715900299

$41.51

40f1

Oetiker Clamp, Large

715900318

$10.20

40f2

Oetiker Clamp, Small

715900317

$10.20

45

LH Knuckle

705403307

$175.35

46

RH Knuckle

705403308

$175.35

50

LH Front - Premium CV Axle

705401429

$232.74

50a

CV Joint

715900297

$253.82

50b

LH Plunging CV Joint

715900301

$253.82

50c

Circlip Joint | Not shown

705401349

$5.38

50d

CV Boot Kit, Wheel Side

715900298

$41.51

50d1

Oetiker Clamp, Large

715900262

$7.84

50d2

Oetiker Clamp, Small

715900317

$10.20

50f

CV Boot Kit, Differential Side

715900299

$41.51

50f1

Oetiker Clamp, Large

715900318

$10.20

50f2

Oetiker Clamp, Small

715900317

$10.20

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

130

Wheel Hub

705503257

$101.51

135

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M18

250200171

$5.28

160

Hex. Flange Castellated Nut M18

232291413

$2.82

170

Cotter Pin

250400071

$1.74

240

Flat Washer M12

250200102

$1.74

250

Hex Flange Screw M12 X 16

250001039

$1.74

310

Conical Spring Washer M12

250200167

$3.04

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

380a

Machined Housing

705402360

$156.89

380b

Actuator Ass'y

705402090

$391.51

380b1

Fork | 4X4

705400274

$16.12

380b2

Circlip | 4X4

293370042

$3.11

380b3

O-Ring

293300117

$4.28

380c

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.23

380d

Idler Shaft Gear

705401509

$101.51

380f

Pressure Screw M8 X 8 | 4X4

206580890

$1.65

380g

Dowell Pin | 4X4

250400025

$7.37

380h

Ball Bearing | 4X4

705400249

$24.58

380j

Slider | 4X4

705402139

$46.12

380k

Circlip | 4X4

293370029

$5.52

380m

Circlip | 4X4

293370030

$2.75

380n

Coupling Sleeve | 4X4

705400389

$32.28

380p

Oil Seal

293250348

$18.43

380q

Shifter Lever Plate | 4X4

705401553

$16.89

380r

O-Ring

293300179

$2.31

390

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

400

O-Ring

293300091

$7.37

242

Hex. Flange Screw M10 X 60

207606044

$2.78

243

Hex. Flange Elastic Nut M10

233201434

$1.63
