Description

Price

200

Main Wiring Harness

710009784

$899.99

AEB

Sumitomo Female Connector 2 Cavities

710008152

$10.33

AEB

Wire Seal

710000402

$4.55

AEB

Female Terminal

409012100

$4.55

BN1

Terminal

710000913

$5.61

BN2

Open Barrel Terminal

278001392

$4.79

BP1

Open Barrel Terminal

278001392

$4.79

Cl

Female Housing 20 Circuits

278002858

$22.49

Cl

Sealing Cap

278002860

$1.79

Cl

Female Terminal

515178018

$1.19

D2

Diode

409012700

$11.12

DC1

Female Terminal

409010300

$4.39

DC2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3 C

Male Housing, 2 Circuits

710000667

$8.32

DC5

Male Connector, 2 Circuits

278000220

$15.49

DC5

Wire Seal

278001065

$7.69

DC5

Female Terminal

278000223

$3.19

DC5 1

Insulated Sheath

278001007

$3.58

DC5 1

Female Terminal

710000421

$6.11

DC5 C

Clip

710000992

$4.29

DC5 C

Female Housing, 2 Circuits

278000217

$9.59

DC5 C

Wire Seal

278000216

$3.19

DC6

Male Connector, 2 Circuits

278000220

$15.49

DC6

Wire Seal

278001065

$7.69

DC6

Female Terminal

278000223

$3.19

DC6 C

Clip

710000992

$4.29

DC6 C

Female Housing, 2 Circuits

278000217

$9.59

DC6 C

Wire Seal

278000216

$3.19

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock

710001222

$2.09

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Terminal

710001873

$2.09

DPS

Female Terminal

278002187

$6.39

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Molex Housing, 48 Circuits

710001967

$142.99

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Terminal

710001728

$6.79

ECMB

Female Terminal

710001727

$3.19

FL F

Housing

710002177

$3.19

FL F

Lock

710002043

$0.90

FL F

Seal

278001482

$3.19

FL F

Female Terminal

710001134

$7.69

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

278001014

$3.28

FP

Female Terminal

710001340

$5.89

FR F

Housing

710002177

$3.19

FR F

Lock

710002043

$0.90

FR F

Seal

278001482

$3.19

FR F

Female Terminal

710001134

$7.69

FRR1

Female Housing, 2 Circuits

515175658

$16.18

FRR1

Female Terminal

710003896

$2.19

FT

Clip Bracket Connector (edge)

409210100

$2.09

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIC

Housing

710001928

$16.86

HIC

Lock

710001222

$2.09

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HL HI LEFT

Housing

710007660

$7.94

HL HI LEFT

Lock

710001152

$4.39

HL HI LEFT

Wire Seal

710001163

$7.69

HL HI LEFT

Female Terminal

710001164

$8.89

HL HI RIGHT

Housing

710007660

$7.94

HL HI RIGHT

Lock

710001152

$4.39

HL HI RIGHT

Wire Seal

710001163

$7.69

HL HI RIGHT

Female Terminal

710001164

$8.89

HL LO LEFT

Female Housing, 2 Circuits

515177192

$9.12

HL LO LEFT

Lock

710001152

$4.39

HL LO LEFT

Wire Seal

710001163

$7.69

HL LO LEFT

Female Terminal

710001164

$8.89

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$9.12

HL LO RIGHT

Lock

710001152

$4.39

HL LO RIGHT

Wire Seal

710001163

$7.69

HL LO RIGHT

Female Terminal

710001164

$8.89

HO2S1

Housing

710002466

$3.19

HO2S1

Lock

710002469

$2.09

HO2S1

Seal

278001482

$3.19

HO2S1

Terminal

710000736

$5.50

HO2S1

Gold Terminal

710002597

$3.19

JMP F

Insulated Sheath

278001007

$3.58

JMP F

Female Terminal

710000421

$6.11

JMP M

Insulated Sheath

278001008

$3.28

JMP M

Female Terminal

278002261

$7.55

KX1

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX1

Female Terminal

409010100

$5.61

KX2

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX2

Female Terminal

409010100

$5.61

LOCK LED

Wire Seal

710000402

$4.55

LOCK LED

Male Terminal

409011300

$5.93

LOCK LED

Male Terminal

409011300

$5.93

LOCK ACT

Housing-Female

710005392

$5.35

LOCK ACT

Lock

710005394

$3.49

LOCK ACT

Seal

278001482

$3.19

LOCK ACT

Female Terminal

710001134

$7.69

LP

Female Housing, 2 Circuits

515175658

$16.18

LP

Female Terminal

710003896

$2.19

MC1 1

Female Housing

710004047

$1.49

MC1 1

Terminal

710002315

$4.55

MC1 2

Female Housing

710004048

$1.49

MC1 2

Terminal

710002315

$4.55

MG1

Connector

710007097

$19.49

MG1

Wire Seal

710000402

$4.55

MG1

Male Terminal

409011300

$5.93

MG2

Connector

710007098

$12.11

MG2

Seal

409012300

$4.54

MG2

Wire Seal

710000402

$4.55

MG2

Female Terminal

409012100

$4.55

MG3

Female Housing 6 Circuits

710001445

$8.54

MG3

Wire Seal

710000402

$4.55

MG3

Female Terminal

409012100

$4.55

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Cap

710000840

$5.89

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Female Terminal

515177009

$5.89

PF1

Female Terminal

515177012

$5.39

PF1 C

Fuse Cover

710001026

$21.99

PF1 C

Fuses Decal

710008570

$0.01

PF1 C

Foam

278002172

$5.89

PF1 C-SP1

Little Fuse, 7.5 Amperes

710000743

$8.49

PF1 C-SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF1 C-SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF1 C-SP4

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F1

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F10

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F12

Fuse, 25 Amps

710002590

$19.49

PF1-F2

Little Fuse, 7.5 Amperes

710000743

$8.49

PF1-F3

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F4

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F9

Little Fuse, 10 Amperes

710000744

$8.79

PF1-RY1

Relay, 30 AMP

515176774

$21.99

PF1-RY2

Relay

715900824

$21.99

PF1-RY3

Relay

715900824

$21.99

PF1-RY4

Relay, 30 AMP

515176774

$21.99

PF1-RY5

Relay, 30 AMP

515176774

$21.99

PF1-RY6

Relay

715900824

$21.99

PF2

Fuse

710001613

$8.79

PF2

Fuse Holder

278001325

$8.79

PF2

Female Terminal

710000113

$6.99

PF4

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000357

$7.69

PLL

Female Housing, 2 Circuits

409209500

$15.27

PLL

Wire Seal

515176621

$7.49

PLL

Female Terminal

710001340

$5.89

PLR

Female Housing, 2 Circuits

409209500

$15.27

PLR

Wire Seal

515176621

$7.49

PLR

Female Terminal

710001340

$5.89

R1

Resistor

710005179

$2.24

R3

Resistor

710007300

$2.24

R4

Resistor

710008735

$3.28

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Cap

710000882

$11.49

REG

Seal

710001932

$3.27

REG

Terminal

710001934

$5.50

RFID

Housing

710001161

$11.12

RFID

Lock

710001162

$3.19

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RL F

Wire Seal

710000402

$4.55

RL F

Female Terminal

409012100

$4.55

RR F

Wire Seal

710000402

$4.55

RR F

Female Terminal

409012100

$4.55

RSS

Male Terminal Housing, 6 Circuits

710000835

$17.04

RSS

Wire Seal

710000402

$4.55

RSS

Male Terminal

409011300

$5.93

SS1

Female Terminal

409010300

$4.39

SS2

Female Terminal

409010300

$4.39

SW CL

Wire Seal

710000402

$4.55

SW CL

Male Terminal

409011300

$5.93

SW CL C

Female Terminal Housing, 3 Circ.

710000153

$9.95

SW CL C

Cap

710000080

$8.29

TAS

Housing

710001231

$13.99

TAS

Lock 6 Positions

710005296

$1.09

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$8.49

TELL TALE

Female Terminal

515175231

$4.39

TL L

Connector, 3 Positions

710003167

$9.21

TL L

Seal

415128501

$1.89

TL L

Female Terminal

278000998

$4.39

TL R

Connector, 3 Positions

710003167

$9.21

TL R

Seal

415128501

$1.89

TL R

Female Terminal

278000998

$4.39

TRL

Female Housing, 6 Circuits

710000081

$8.79

TRL

Wire Seal

710000402

$4.55

TRL

Seal

409012300

$4.54

TRL

Female Terminal

409012100

$4.55

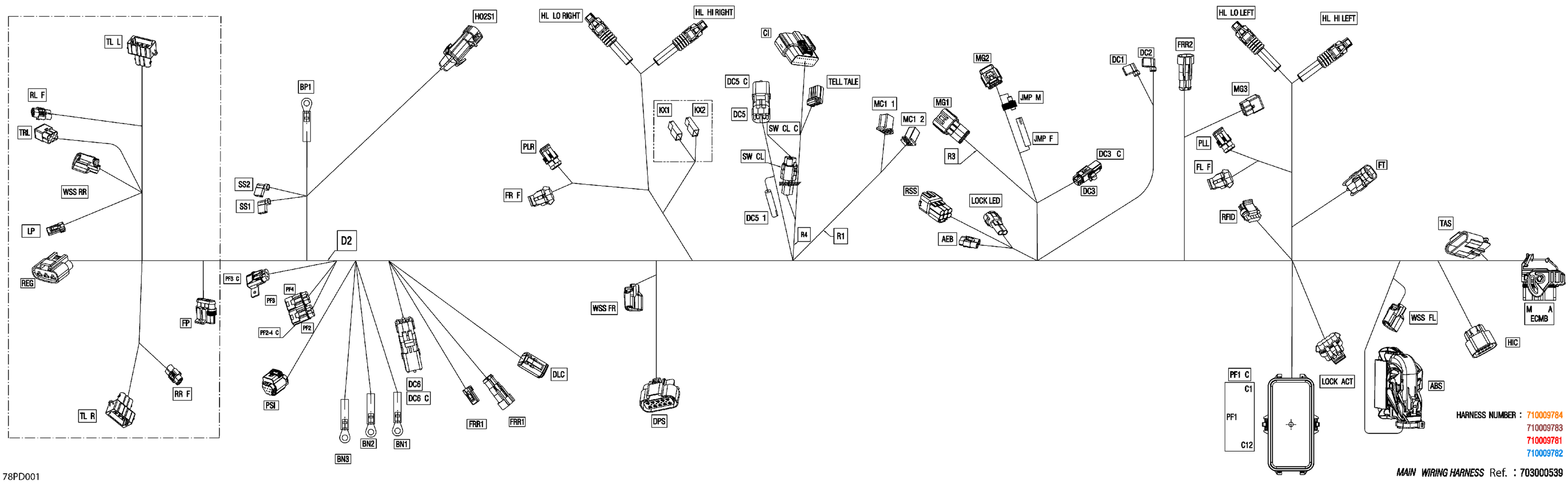

Can-Am Outlander MAX 1000 EFI 6X6 - 4LRB - XU+ Package - Boreal Green, 2024 Electric - Main Harness Diagram

Main Wiring Harness

Sumitomo Female Connector 2 Cavities

Wire Seal

Female Terminal

Terminal

Open Barrel Terminal

Open Barrel Terminal

Female Housing 20 Circuits

Sealing Cap

Female Terminal

Diode

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Male Connector, 2 Circuits

Wire Seal

Female Terminal

Insulated Sheath

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Male Connector, 2 Circuits

Wire Seal

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Female Housing 6 Circuits

Lock

Female Terminal

Female Terminal

Female Housing

Lock

Lock | PACKARD 15430900

Plug

Wire Seal

Seal

Terminal

Female Terminal

Cover, 48 positions

Molex Housing, 48 Circuits

Plug

Plug

Female Terminal

Terminal

Female Terminal

Housing

Lock

Seal

Female Terminal

Female Housing, 4 Circuits

Wire Seal

Wire Seal

Female Terminal

Female Terminal

Housing

Lock

Seal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Clip Bracket Connector (edge)

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Housing

Lock

Cap

Seal

Seal Wire

Terminal

Terminal

Housing

Lock

Wire Seal

Female Terminal
