07- Body - Cargo Platform

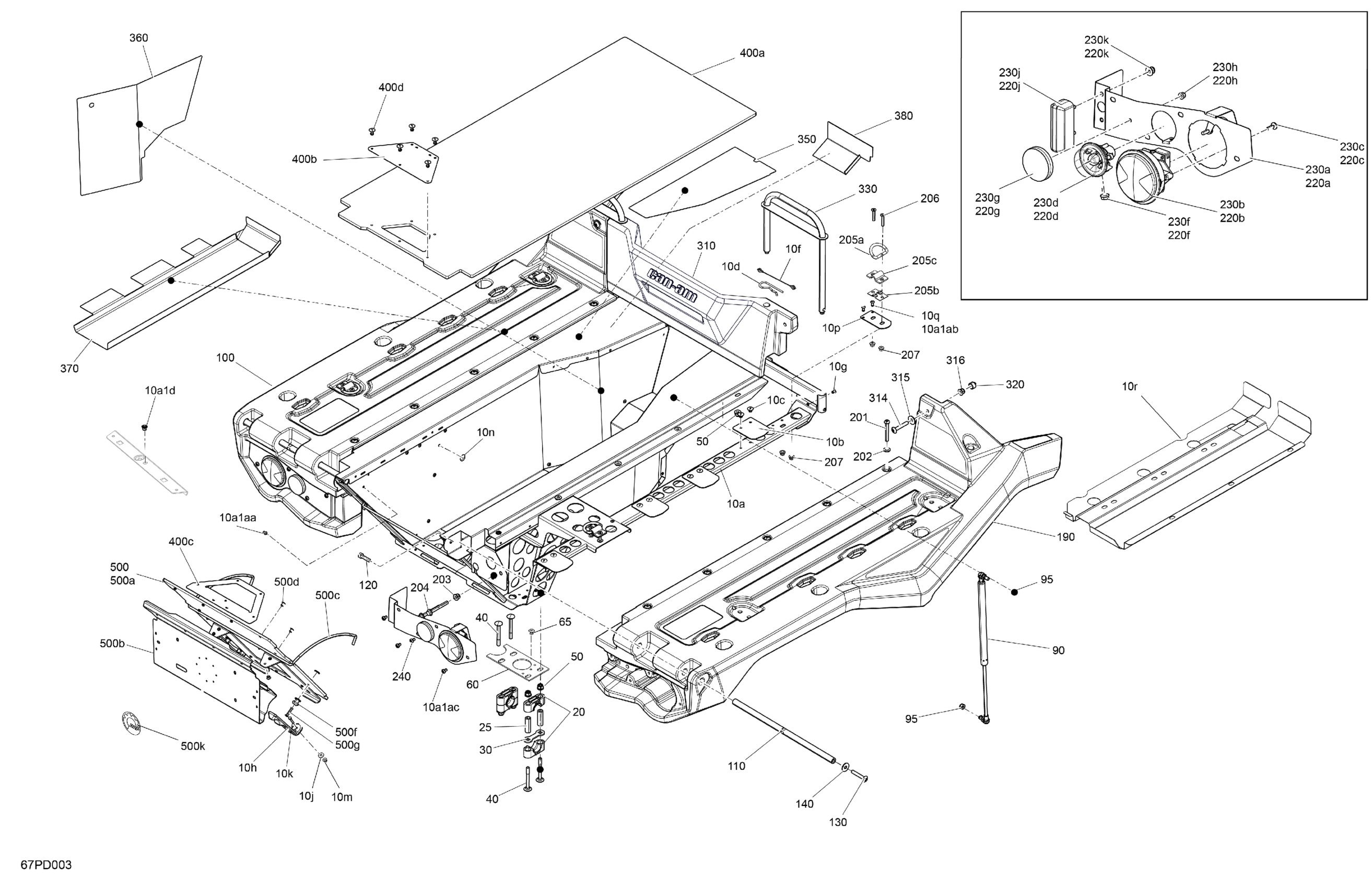

Can-Am T Regulation - Outlander MAX 1000 EFI 6X6 - 4LRB - XU+ Package - Boreal Green, 2024 07- Body - Cargo Platform Diagram
#
10a
Platform | Includes 10a to 10a1ac
708303452
Unavailable
10a1d
Clinch Nut Hexsert M8
605636002
Unavailable
10a1aa
Avex Rivet
390909200
Unavailable
10a1ab
Avex Rivet
390909100
Unavailable
10a1ac
Avex Rivet
390909200
Unavailable
10b
Linq Hole Filler
708301095
Unavailable
10c
Black, Pop Rivet 3/16 X ,425
293150291
Unavailable
10d
Cotter Spring
505073670
Unavailable
10f
Retainer Cable
293750069
Unavailable
10g
Stavex Rivet
293150144
Unavailable
10h
Hood Latch
5342952
Unavailable
10j
Flat Washer
234052450
Unavailable
10k
Hex.Flange Screw M5 X 20
207652044
Unavailable
10m
Flange Elastic Nut M5
233251434
Unavailable
10n
Black, Dart
414644300
Unavailable
10p
Lashing Rings Support
705203824
Unavailable
10q
Avex Rivet
390909100
Unavailable
10r
Upper Heat Shield Wide
707601725
Unavailable
20
Housing Half
506150400
Unavailable
25
Housing Bushing
506150500
Unavailable
30
Stopper Plate
506150600
Unavailable
40
Carriage Bolt M8 X 70
207787044
Unavailable
50
Hex. Flange Elastic Nut M8
233281414
Unavailable
60
Cargo Box Hinges Reinforcement Plate
705203836
Unavailable
65
Black, Pop Rivet 3/16 X ,425
293150291
Unavailable
90
Cargo Box Gas Shock
708301058
Unavailable
95
Hex. Elastic Stop Nut M8
232581414
Unavailable
100
Black, LH Side Platform | Model-Black
708303737
Unavailable
110
Hinge Axis
708300935
Unavailable
120
Socket Head Screw M8 X 30
205083044
Unavailable
130
Torx Truss Screw M8 X 50
250000761
Unavailable
140
Stainless Steel Flat Washer
234082670
Unavailable
190
Black, RH Side Platform | Model-Black
708303738
Unavailable
201
Torx Truss M/S M8 X 40
205484056
Unavailable
202
Washer
503192494
Unavailable
203
Hex. Flange Elastic Nut M8
233281414
Unavailable
204
Hex. Flange Screw, M8 X 65
207686544
Unavailable
205a
D-Ring
708302990
Unavailable
205b
Tie-Down Ring Spring
708302991
Unavailable
205c
Tie-Down Ring Bracket
708302992
Unavailable
206
Socket Screw M6 X 35
250001078
Unavailable
207
Hex. Flange Nut M6
233061414
Unavailable
220a
LH Tail Light Plate | Model-T3
605356527
Unavailable
220b
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
220c
Torx Screw K50 X 16
250000720
Unavailable
220d
Flasher | Europe
710002964
Unavailable
220f
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
220g
Red, Reflector
705016982
Unavailable
220h
Flange Elastic Nut M5
233251434
Unavailable
220j
Light | Includes 220j to 220j1
710008467
Unavailable
220k
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
230a
RH Tail Light Plate | Model-T3
605356528
Unavailable
230b
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
230c
Torx Screw K50 X 16
250000720
Unavailable
230d
Flasher | Europe
710002964
Unavailable
230f
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
230g
Red, Reflector
705016982
Unavailable
230h
Flange Elastic Nut M5
233251434
Unavailable
230j
Light | Includes 220j to 220j1
710008467
Unavailable
230k
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
240
Torx Truss Screw M6 X 12
250000767
Unavailable
310
Black, Front Panel Max
715006177
Unavailable
314
Torx Truss Screw M8 X 50
250000761
Unavailable
315
Stainless Steel Flat Washer
234082670
Unavailable
316
Hex. Flange Elastic Nut M8
233281414
Unavailable
320
Cover | Model-T3
28056
Unavailable
330
Locking Handle Weld
708300939
Unavailable
350
Bed Heat Shield On Top
708301336
Unavailable
360
Bed Heat Shield On Side
708301337
Unavailable
370
Side Heat Shield
708301338
Unavailable
380
Heat Shield
708302168
Unavailable
400a
Middle Deck
708300959
Unavailable
400b
Filler Plate
708301262
Unavailable
400c
Handle Plate
708301263
Unavailable
400d
Black, Ornit Rivet 3/16 X ,675
293150308
Unavailable
500
Lower Tailgate Ass'y | Includes 500 to 500k
708303328
Unavailable
500a
Lower Tailgate Inner
708303364
Unavailable
500b
Register Plate Support
708303416
Unavailable
500c
Limiter Rail
708301213
Unavailable
500d
Avex Rivet
390909100
Unavailable
500f
Counter Roller
605449087
Unavailable
500g
Rivet
293150212
Unavailable
500k
BRP Logo 68 mm
219902672
Unavailable
