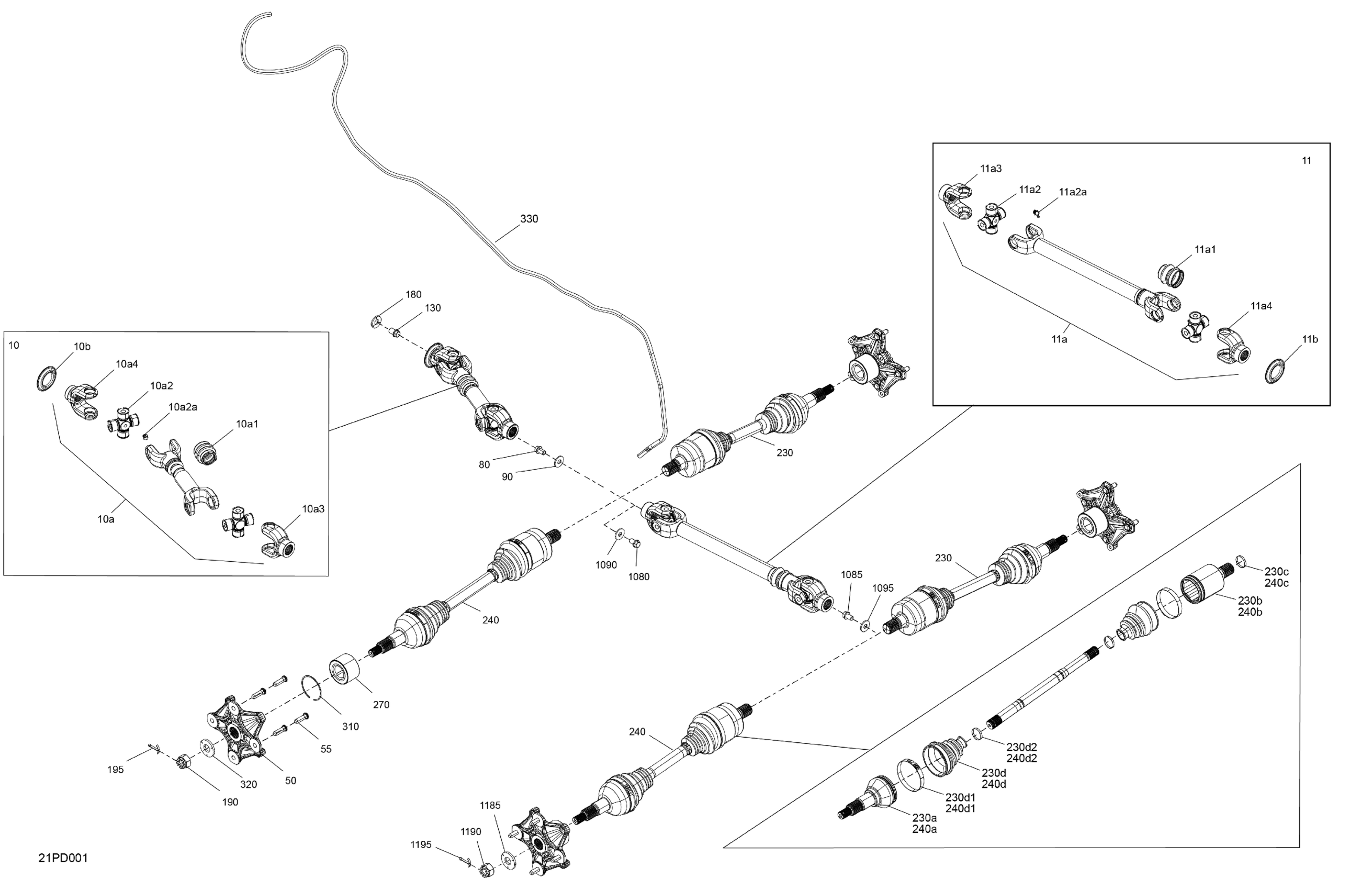

Can-Am Outlander MAX 1000 EFI 6X6 - 4LRB - XU+ Package - Boreal Green, 2024 Drive - Rear - Common Parts Diagram

#

Description
Price

10

Shaft Ass'y Kit

703500989

$206.49

10a

Not Available As Spare Parts

XXX

Unavailable

10a1

Rubber Boot

715900118

$14.30

10a2

Universal Joint Ass'y | T3

703500846

$59.49

10a2a

Grease Fitting | T3

715900295

$5.24

10a3

Yoke

715900499

$24.99

10a4

Joint | T3

715900436

$24.99

10b

Protector

705501123

$7.55

11

Shaft Ass'y Kit | Built Feb 2019 and Up

703501084

$259.49

11a

Not Available As Spare Parts

XXX

Unavailable

11a1

Rubber Boot

715900118

$14.30

11a2

Universal Joint

715900326

$68.99

11a2a

Grease Fitting | T3

715900295

$5.24

11a3

Yoke

715900499

$24.99

11a4

Yoke | T3

715900500

$24.99

11b

Protector

705501123

$7.55

50

Wheel Hub

705503257

$101.49

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH CV Joint | All Except Package XMR

705502711

$243.99

230a

CV Joint

705501776

$259.49

230b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230d1

Oetiker Clamp, 82.1 mm

715900241

$10.33

230d2

Oetiker Clamp, 27.3 mm

715900242

$10.33

240

LH CV Joint | All Except Package XMR

705502710

$243.99

240a

CV Joint

705501776

$259.49

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Circlip

705501781

$6.50

240d

Boot Kit

705501864

$42.49

240d1

Oetiker Clamp, 82.1 mm

715900241

$10.33

240d2

Oetiker Clamp, 27.3 mm

715900242

$10.33

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

330a

Not Available As Spare Parts

XXX

Unavailable

1080

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

1085

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

1090

Conical Spring Washer M12

250200167

$3.70

1095

Conical Spring Washer M12

250200167

$3.70

1185

Conical Spring Washer M18

250200171

$7.65

1190

Hex. Flange Castellated Nut M18

232291413

$7.98

1195

Cotter Pin

250400071

$2.11
