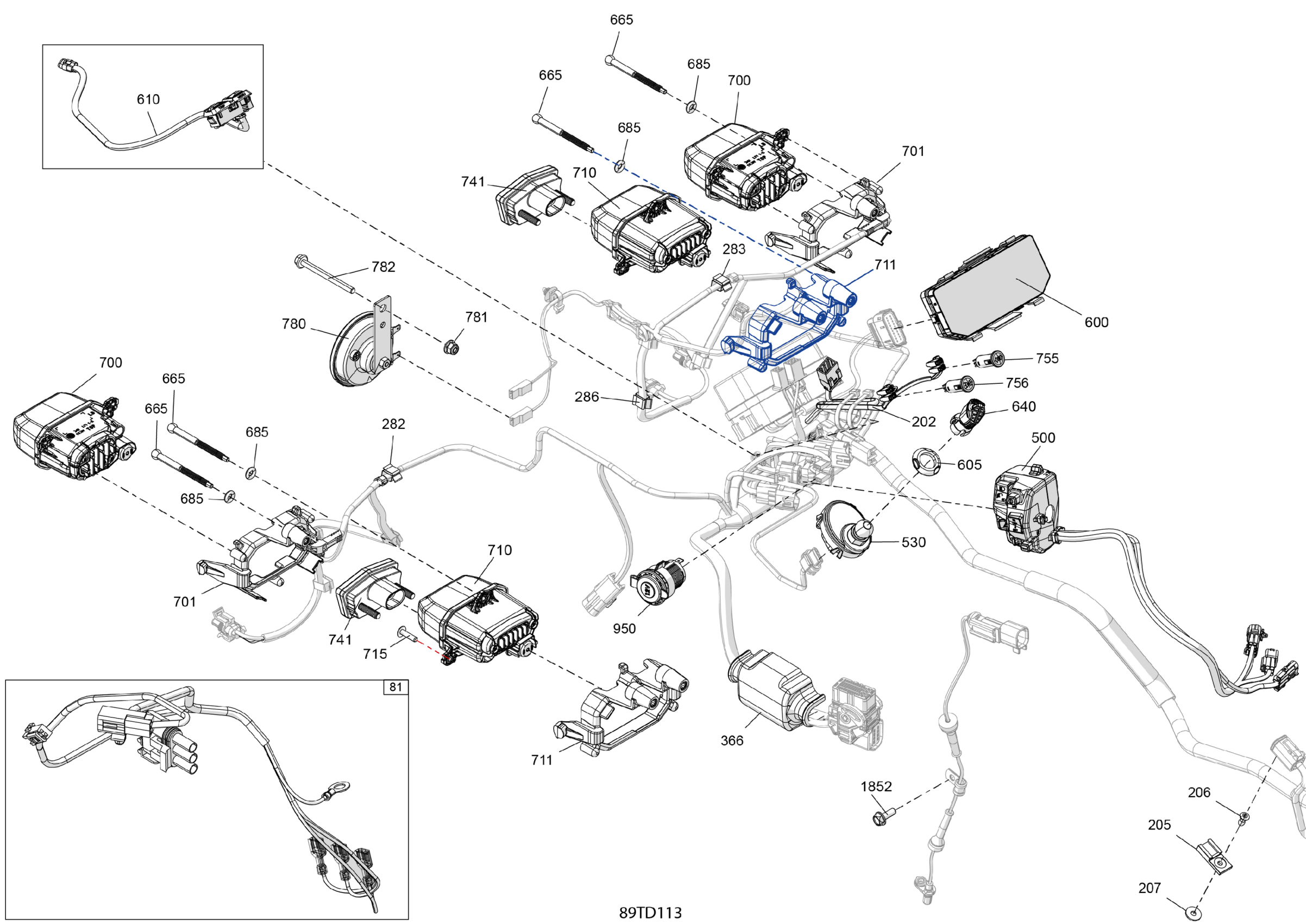

Can-Am Outlander MAX 1000 EFI 4X4 - 5LRA - XT-P Package - Hyper Silver, 2024 Electric - Front Section Diagram

Description

Price

Winch Wiring Harness

710008412

$40.27

202

Tell Tale Wiring Harness

710007825

$22.36

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

282

Clip

710010204

$1.40

283

Clip

710010204

$1.40

286

Clip

710010204

$1.40

366

Soft Protection Sleeve

710007255

$2.51

500

LH Front Multifunction Switch

710007609

$228.33

530

Terminal DESS One Wire

515179305

$60.42

540

Flange Elastic Nut M5

233251434

$1.66

600

Multifunction Gauge Mid

710008297

$336.54

605

Specialized Nut

278004274

$2.72

610

Multifunction Switch

710008638

$58.93

640

Grey, Can-Am DESS Key

515179384

$53.70

665

Ajustment Screw

710005837

$5.90

685

O-Ring

293300192

$3.81

700

Low Beam Light

710008088

$152.21

701

Exterior Headlight Support

710008396

$23.85

710

HIgh Beam Light

710006910

$152.21

711

Interior Headlight Support

710008394

$8.15

715

Torx-Truss Pt K40 X 16

250000759

$1.74

741

Amber Light Turn Signal

710007217

$16.39

755

Pilot Light Trailer Flasher

710005766

$7.64

756

Pilot Light Tail Lamp

710005767

$7.64

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

950

DC Outlet

710001248

$31.17

1852

Hex. Flange Screw M6 X 16

210261640

$1.74
